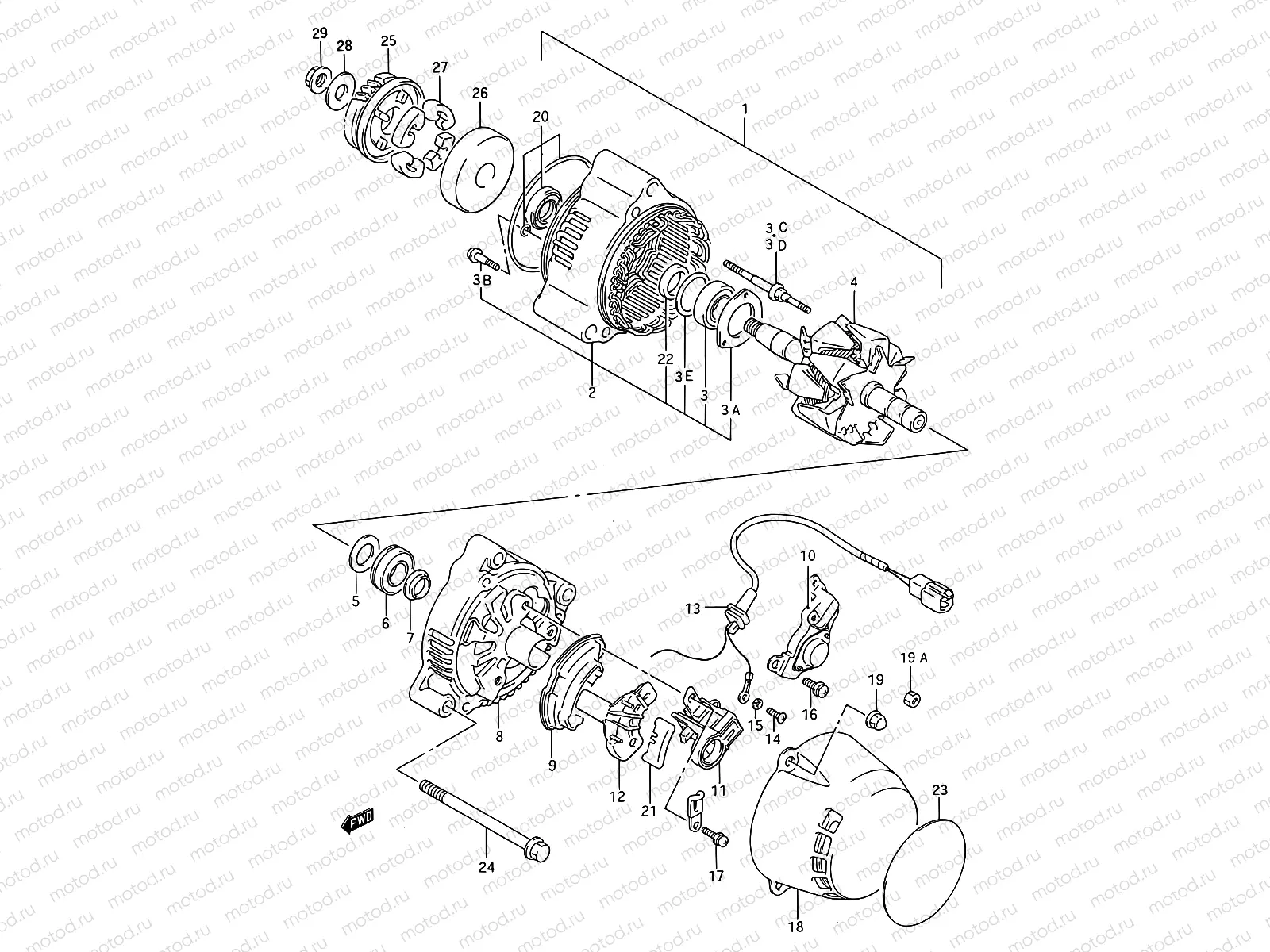

20 - ALTERNATOR

20 - ALTERNATOR
Например: 31400-17C04
1
31400-17C04
ALTERNATOR ASSY
93 126 ₽/шт
2
31580-48B00
.frame, drive end
3
31612-06B00
EARING
2 678 ₽/шт
3
31585-48B00
RETAINER
719 ₽/шт
3
31586-48B00
SCREW,BEARING RETAINER
172 ₽/шт
3
31587-85250
Болт
989 ₽/шт
3
31587-85250
Болт
989 ₽/шт
3
31613-48B00
COVER,BEARING
422 ₽/шт
4
31710-48B04
Alternator assy
5
31613-82610
COVER,BEARING
317 ₽/шт
6
31612-48B00
EARING
3 148 ₽/шт
7
31613-27A10
COVER(2)
422 ₽/шт
8
31611-48B00
.frame, end
9
31621-27A00
HOLDER,RECTIFIER
17 048 ₽/шт
10
32500-27A00
Регулятор
28 634 ₽/шт
11
31656-48B00
Holder,brush
12
31687-17E00
Крышка
348 ₽/шт
13
31480-48B00
Проводка
3 526 ₽/шт
14
02112-0406B
Болт
81 ₽/шт
16
31688-27A00
Vis
17
31688-27A00
Vis
18
31614-48B00
DEKSEL
19
08316-1005B
Гайка
1 520 ₽/шт
20
31780-27X50
SERVICE KIT(A)
5 270 ₽/шт
21
31687-17E00
Крышка
348 ₽/шт
22
31776-06B00
Кольцо/шайба
1 677 ₽/шт
23
31615-27E00
Plate,alternato
24
01550-0890A
Болт
2 310 ₽/шт
25
22730-19C02
Gear,generator
26
22733-27A05
HOUSING,GENERATOR GEAR DAMPER
7 194 ₽/шт
27
21231-06B00
Амортизатор
289 ₽/шт
28
08211-10283
Шайба
1 840 ₽/шт
29
08316-2010B
Гайка
81 ₽/шт
