Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZ 1500 Intruder M1500 / Boulevard M90 SUZUKI VZ1502 K9 Intruder M1500 / Boulevard M90 (E03) SUZUKI 2 - FRONT CYLINDER HEAD

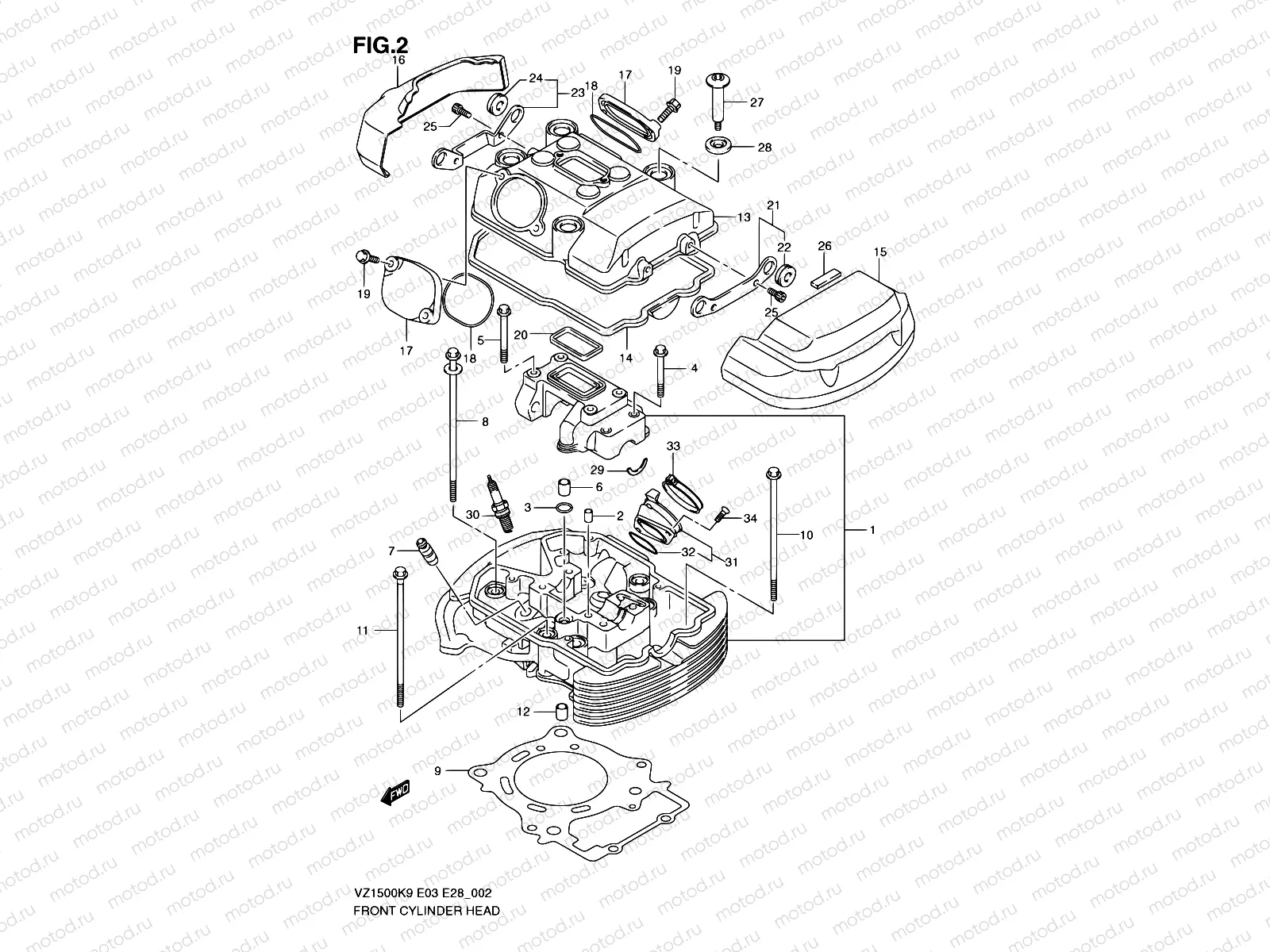

2 - FRONT CYLINDER HEAD

2 - FRONT CYLINDER HEAD
Например: 11101-40H00
1
11101-40H00
EAD ASSY,CYLINDER FR
112 200 ₽/шт
2
09206-08001
Стопор
170 ₽/шт
3
09280-11005
Кольцо цилиндра
258 ₽/шт
4
01547-0650A
Болт
1 410 ₽/шт
5
01547-0665A
БОЛТ
1 410 ₽/шт
6
04211-11129
ШТИФТ
113 ₽/шт
7
11115-32E70
Направляющая клапана
2 053 ₽/шт
8
11117-05H00
BOLT,CYLINDER HEAD(L:190)
1 267 ₽/шт
9
11141-40H00
GASKET,CYLINDER HEAD FR
7 891 ₽/шт
10
09103-08405
BOLT(8X160)
5 200 ₽/шт
11
09103-08415
БОЛТ
760 ₽/шт
12
04211-13189
ШТИФТ
129 ₽/шт
13
11171-40H00
Крышка головки цилиндра
14 311 ₽/шт
14
11173-40H00
GASKET,CYL HEAD COVER NO.1
4 009 ₽/шт
15
11174-40H00
CAP,CYLINDER HEAD COVER NO.1
14 949 ₽/шт
16
11175-40H00
CAP,CYLINDER HEAD COVER NO.2
11 457 ₽/шт
17
11176-40H00
CAP,INSPECTION
1 279 ₽/шт
18
09280-60004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
307 ₽/шт
19
01547-0620A
Болт
81 ₽/шт
20
11177-40H00
GASKET,CYL HEAD COVER NO.2
1 071 ₽/шт
21
11180-40H01
Bracket,head co
22
09320-08509
Cushion(8X22X7)
210 ₽/шт
23
11180-40H10
BRACKET,HEAD COVER CAP NO.2
856 ₽/шт
24
09320-08509
Cushion(8X22X7)
210 ₽/шт
25
07130-0612A
Болт
102 ₽/шт
26
94424-03H00
CUSHION,PANEL NO.2
149 ₽/шт
27
09106-07022
BOLT(7X57)
4 380 ₽/шт
28
11191-27E00
Шайба
371 ₽/шт
29
09390-22002
Кольцо стопорное
113 ₽/шт
31
13101-40H00
PIPE ASSY,INTAKE FR
4 262 ₽/шт
32
09280-45004
O RING(D:2.4,ID:44.7)
201 ₽/шт
33
13170-40H01
CLAMP,INTAKE PIPE
473 ₽/шт
34
09120-06008
BOLT(6X20.5)
179 ₽/шт
