Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100G M (E02) SUZUKI 2 - CYLINDER HEAD

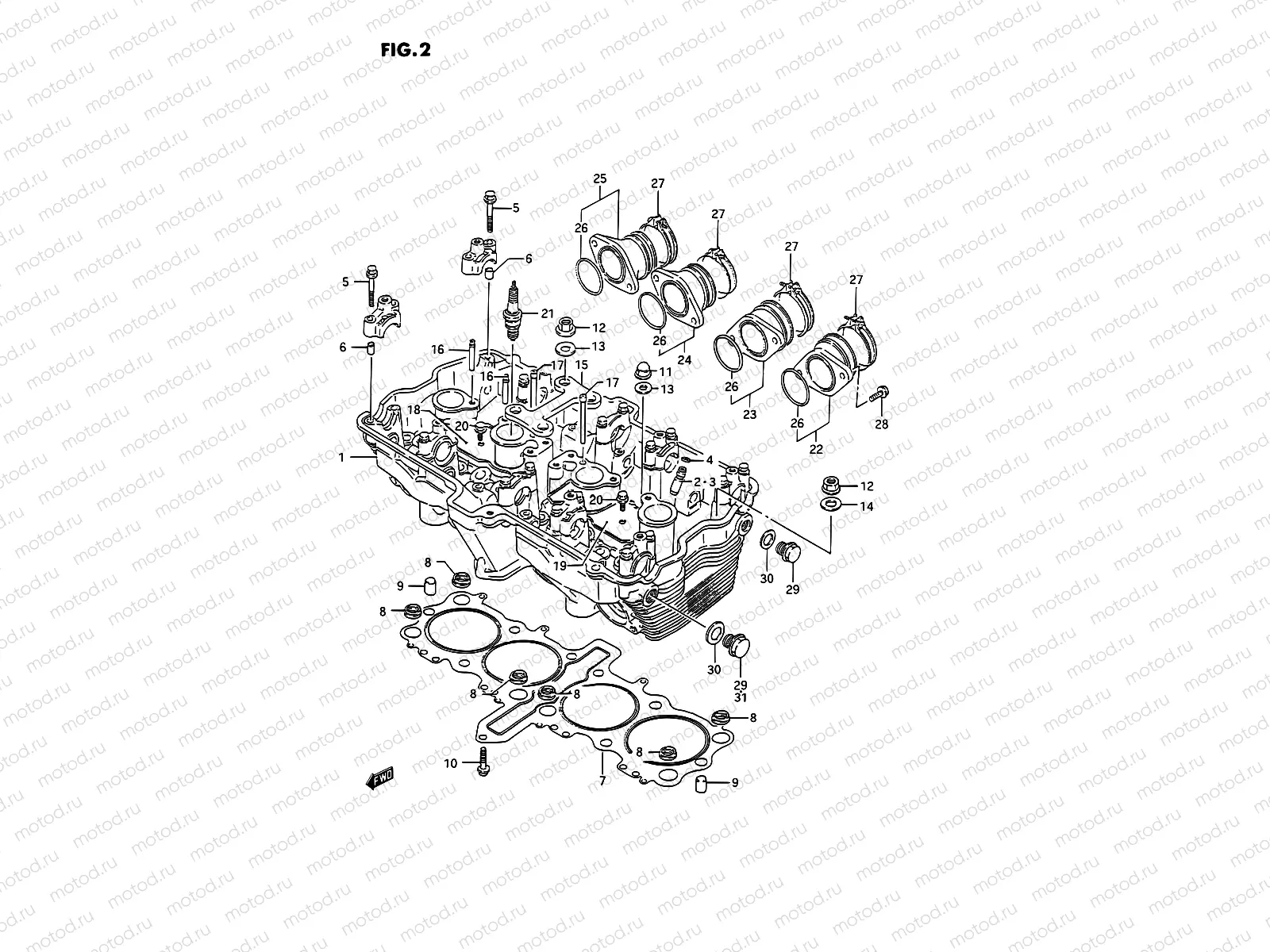

2 - CYLINDER HEAD

2 - CYLINDER HEAD
Например: 11100-26D00
1
11100-26D00
Head assy, cylinder
1
11100-26D10
Head assy, cylinder
1
11100-26D30
Head assy, cylinder
2
11116-06B70
Направляющая клапана
1 003 ₽/шт
3
11116-06B70
Направляющая клапана
1 003 ₽/шт
4
09381-10004
КЛИПС
113 ₽/шт
5
09103-06026
BOLT(6X39)
101 ₽/шт
6
09206-08001
Стопор
170 ₽/шт
7
11141-48B22
Joint d'embase cylindre
8
11143-32F00
O RING,HEAD GASKET
371 ₽/шт
9
09209-11007
PIN
12 630 ₽/шт
10
01550-0630A
БОЛТ
102 ₽/шт
11
09159-10069
Гайка
3 440 ₽/шт
12
08316-1010B
Гайка
85 ₽/шт
13
09168-10031
Прокладка
129 ₽/шт
14
09160-10039
Шайба
119 ₽/шт
15
11138-40C10
PLATE,HEAD REINFORCEMENT
2 268 ₽/шт
16
11131-27A00
PIPE,OIL NO.1
1 156 ₽/шт
17
11133-27A00
PIPE,OIL NO.3
1 411 ₽/шт
18
11135-27A02
Plate,oil pipe
19
11136-27A02
Пластина масляной трубки
317 ₽/шт
20
01550-06207
БОЛТ
85 ₽/шт
22
13101-40C00
Pipe d’admission (LH)
23
13102-40C00
Pipe,intake #2
24
13103-40C00
Pipe,intake,no3
25
13104-40C00
Pipe d’admission (RH)
26
09280-40020
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
533 ₽/шт
27
09402-52208
ДЕРЖАТЕЛЬ
221 ₽/шт
28
02112-1616A
Болт
1 170 ₽/шт
29
09247-14034
Plug
30
09168-14004
Прокладка
129 ₽/шт
