Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750F R (E02) SUZUKI 2 - CYLINDER HEAD

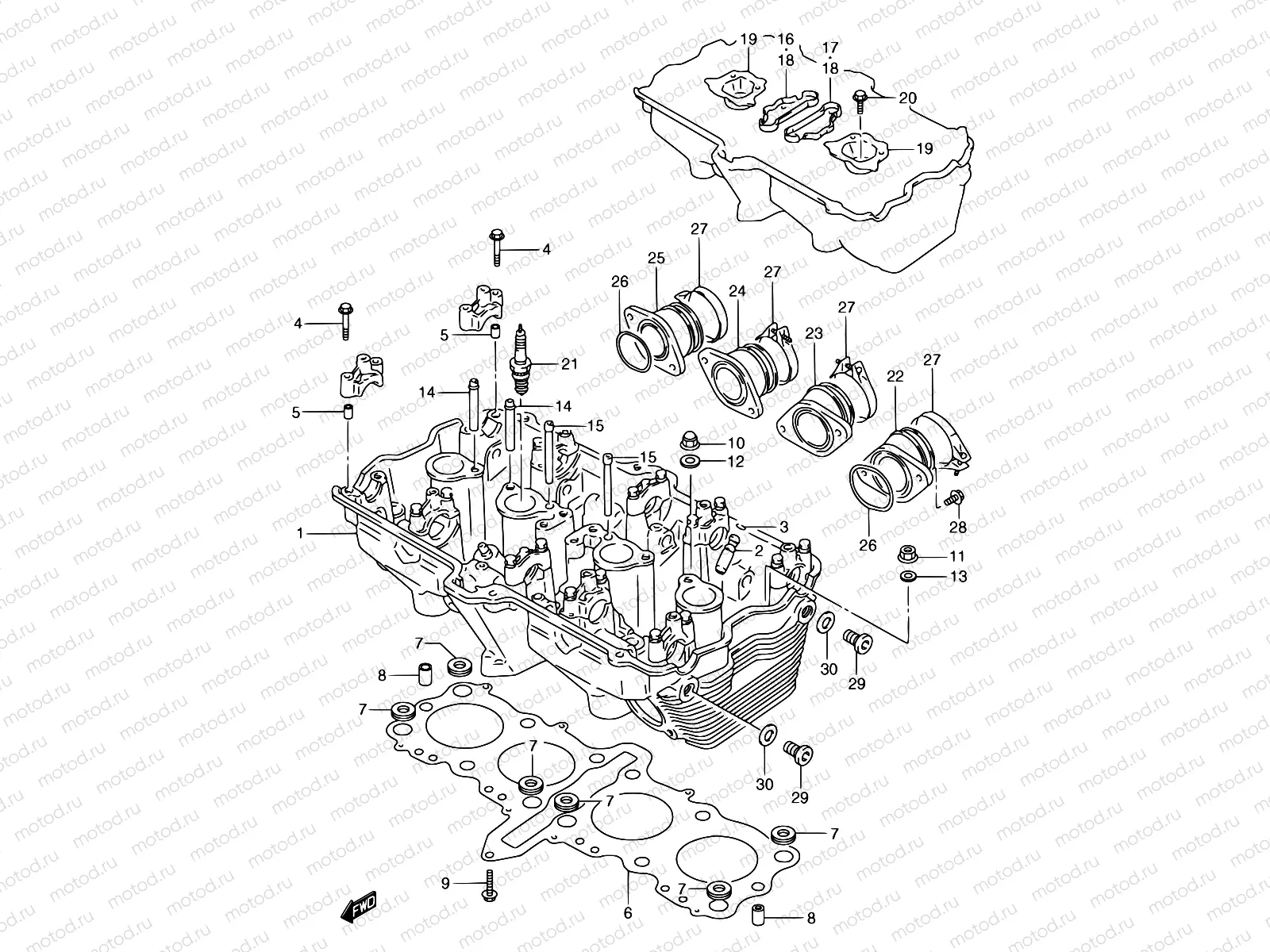

2 - CYLINDER HEAD

2 - CYLINDER HEAD
Например: 11100-20C02
1
11100-20C02
Head assy, cylinder
1
11100-20C12
Head assy, cylinder
2
11116-06B70
Направляющая клапана
1 003 ₽/шт
3
09381-10004
КЛИПС
113 ₽/шт
4
09103-06026
BOLT(6X39)
101 ₽/шт
5
09206-08001
Стопор
170 ₽/шт
6
11141-17C03
Joint culasse
7
11143-06B00
Кольцо головки цилиндров
404 ₽/шт
8
04211-11189
ШТИФТ
119 ₽/шт
9
01550-0625A
Болт
102 ₽/шт
10
09159-10054
Гайка 10MM
5 000 ₽/шт
11
08316-1010B
Гайка
85 ₽/шт
12
09168-10031
Прокладка
129 ₽/шт
13
09160-10039
Шайба
119 ₽/шт
14
11131-27A00
PIPE,OIL NO.1
1 156 ₽/шт
15
11133-27A00
PIPE,OIL NO.3
1 411 ₽/шт
16
11135-17C10
Plate,oil pipe
17
11135-17C10
Plate,oil pipe
18
11135-17C10
Plate,oil pipe
19
11137-17C01
Пластина масляной трубки
422 ₽/шт
20
01547-0612B
БОЛТ
82 ₽/шт
22
13101-17C01
Pipe d’admission (LH)
23
13102-17C01
Pipe d’admission (ML)
24
13103-17C01
Pipe d’admission (MR)
25
13104-17C01
Pipe d’admission (RH)
26
09280-40020
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
533 ₽/шт
27
09402-52208
ДЕРЖАТЕЛЬ
221 ₽/шт
28
02112-1616A
Болт
1 170 ₽/шт
29
09248-14010
ШЛАНГ
3 210 ₽/шт
30
09168-14004
Прокладка
129 ₽/шт
