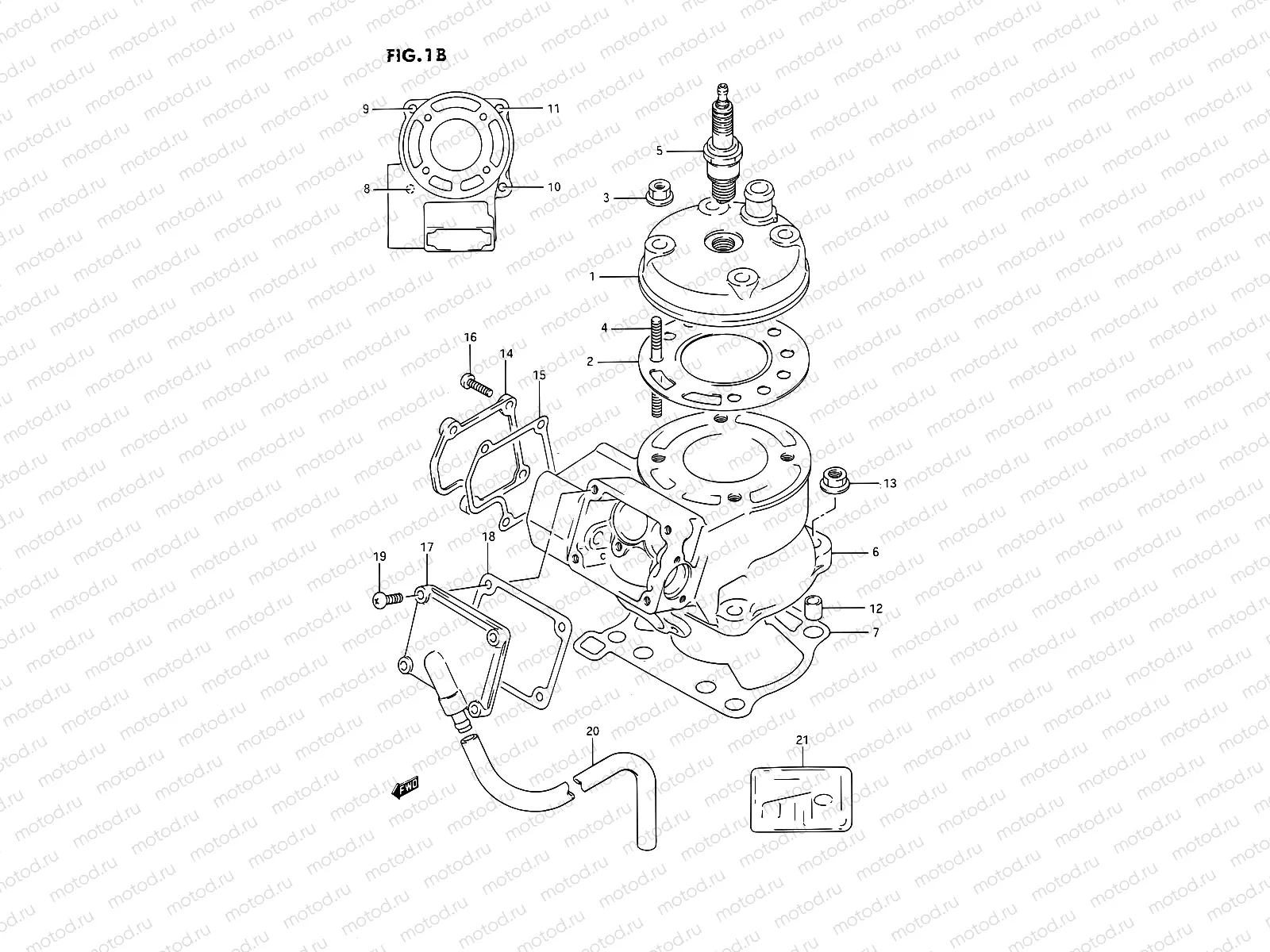

1B - CYLINDER (MODEL L)

1B - CYLINDER (MODEL L)
Например: 11111-02B43
1
11111-02B43
Cylinder head
2
11141-02B60
Прокладка цилиндра
1 732 ₽/шт
3
08316-10087
ГАЙКА
82 ₽/шт
4
09108-08144
Болт
272 ₽/шт
5
09482-00349
PLUG,SPARK(BR9ES)
696 ₽/шт
5
09482-00160
Spark plug (nd,w27es)
6
11210-02B62-0F0
Цилиндр
51 238 ₽/шт
7
11241-03B01
Прокладка цилиндра
442 ₽/шт
8
09108-08255
Болт
162 ₽/шт
9
01421-0825A
Шпилька
119 ₽/шт
10
09108-08142
Болт
170 ₽/шт
11
09108-08220
Болт
1 920 ₽/шт
12
04211-11149
ШТИФТ
119 ₽/шт
13
08316-10087
ГАЙКА
82 ₽/шт
14
11231-02B40
COVER,CYLINDER NO.1
1 760 ₽/шт
15
11233-02B42
GASKET,CYLINDER COVER NO.1
485 ₽/шт
16
02112-05167
Болт
81 ₽/шт
17
11240-19D20
Крышка цилиндра
4 080 ₽/шт
18
11238-01B30-H17
GASKET,CYL COVER NO.2
204 ₽/шт
19
02112-05167
Болт
81 ₽/шт
20
09354-65113-600
Cső (6.5x11.5x600)
21
11401-02836
