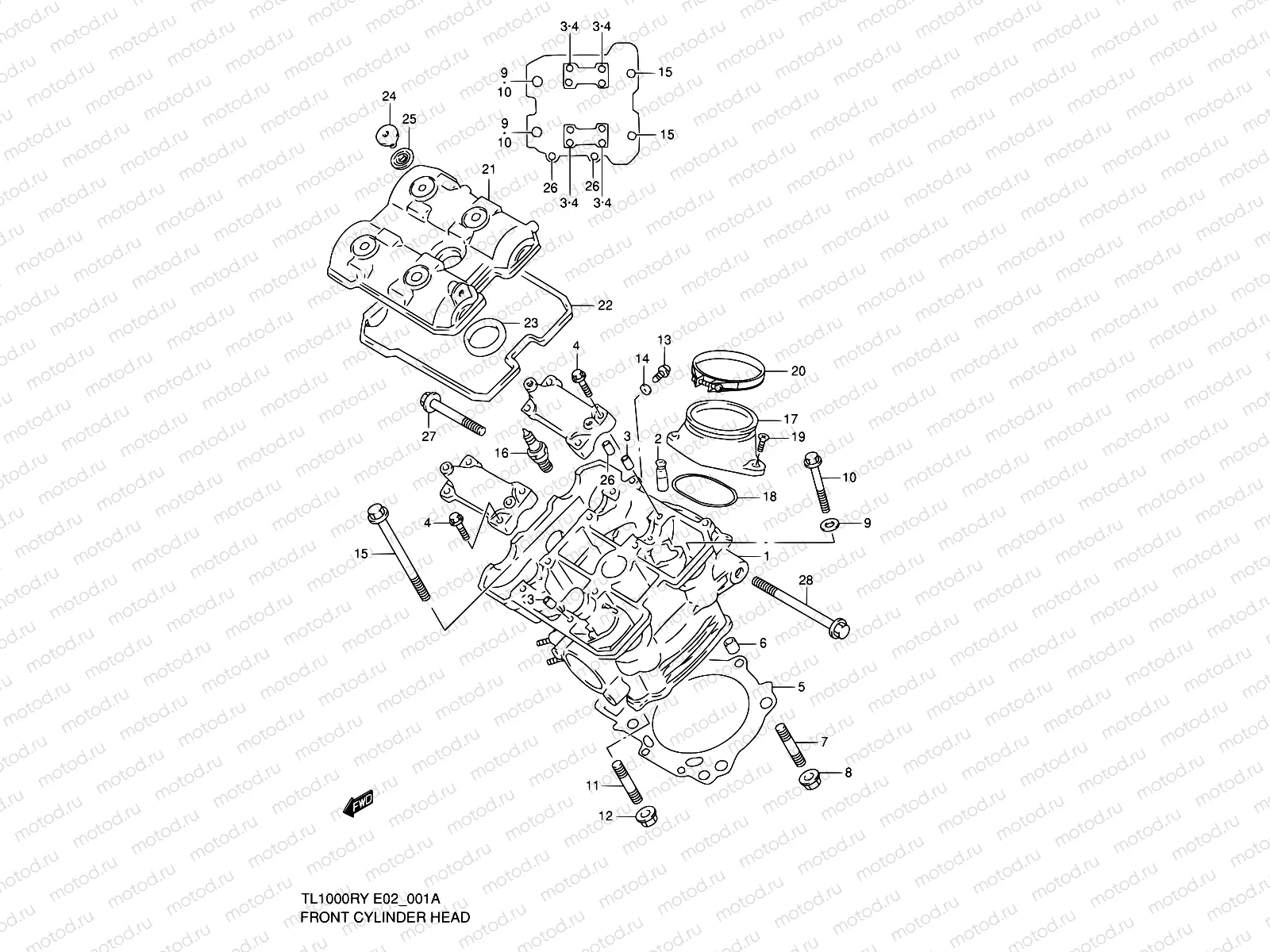

1A - FRONT CYLINDER HEAD

1A - FRONT CYLINDER HEAD
Например: 11100-02F21
1
11100-02F21
Cylinder head
1
11100-02F31
Cylinder head
2
11115-32E70
Направляющая клапана
2 053 ₽/шт
3
09206-08001
Стопор
170 ₽/шт
4
09103-06026
BOLT(6X39)
101 ₽/шт
5
11141-02F01
Прокладка
6 218 ₽/шт
6
04211-13189
ШТИФТ
129 ₽/шт
7
09108-08143
BOLT,STUD
272 ₽/шт
8
08316-1008B
Гайка
81 ₽/шт
9
09160-10082
ШАЙБА
102 ₽/шт
10
11161-02F00
BOLT,CYLINDER HEAD(L:175)
1 345 ₽/шт
11
09108-06096
Болт
1 450 ₽/шт
12
08319-31067
Гайка
153 ₽/шт
13
07120-0612B
БОЛТ
184 ₽/шт
14
09168-06023
ПРОКЛАДКА
162 ₽/шт
15
09103-06103
BOLT(6X70)
162 ₽/шт
17
13101-02FA0
PIPE ASSY,INTAKE
5 709 ₽/шт
18
09280-55005
O RING(D:2.4,ID:55.6)
291 ₽/шт
19
09120-06010-XC0
Винт 6X16
1 800 ₽/шт
20
09402-70902
CLAMP
598 ₽/шт
21
11171-02F00
Крышка
14 584 ₽/шт
22
11173-02F00
Прокладка
2 907 ₽/шт
23
11178-17E00
Прокладка
501 ₽/шт
24
09106-07021
БОЛТ
275 ₽/шт
25
09161-11008
Шайба
226 ₽/шт
26
09206-08001
Стопор
170 ₽/шт
27
01550-1040A
Болт верхний
119 ₽/шт
28
01550-1040A
Болт верхний
119 ₽/шт
