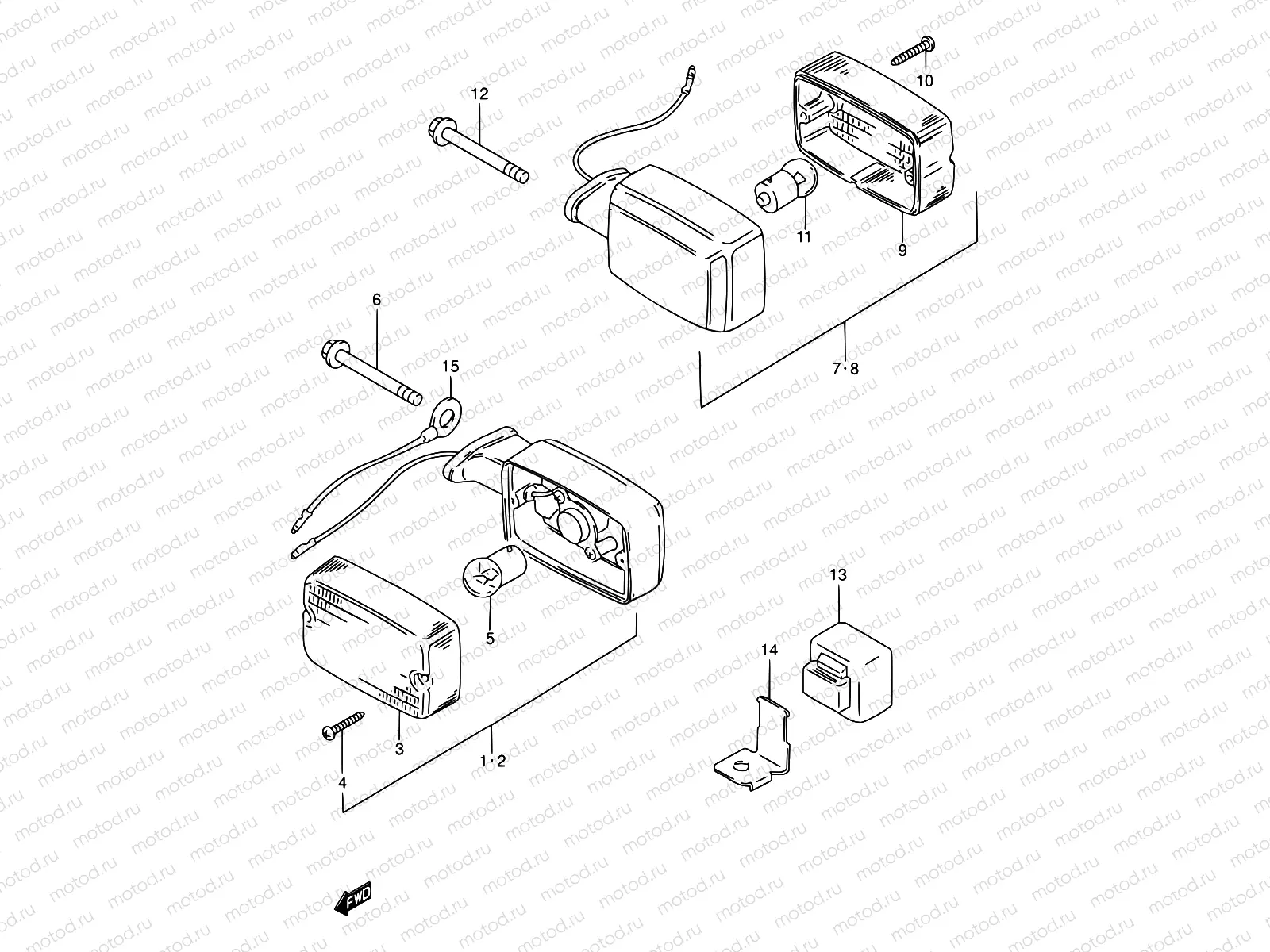

19B - TURN SIGNAL LAMP (MODEL V E94,P36,P48)

19B - TURN SIGNAL LAMP (MODEL V E94,P36,P48)
Например: 35601-26401-999
1
35601-26401-999
Lamp assy, front turnsignal rh
2
35602-26401-999
Lamp assy, front turnsignal lh
3
35612-35300
Линза
661 ₽/шт
4
35623-35300
Винт
98 ₽/шт
5
09471-06021
BULB(6V8W,STANLEY,A4115)
272 ₽/шт
6
09103-06282
BOLT(6X25)
1 250 ₽/шт
7
35603-39201-999
LAMP ASSY,RR TURNSIGNAL
16 473 ₽/шт
8
35604-39201-999
Lamp assy, rear turnsignal lh
9
35612-35300
Линза
661 ₽/шт
10
35623-35300
Винт
98 ₽/шт
11
09471-06021
BULB(6V8W,STANLEY,A4115)
272 ₽/шт
12
09103-06064
BOLT(6X60)
162 ₽/шт
13
38610-09400
RELAY,TURN SIGNAL
4 653 ₽/шт
14
38621-23400
Bracket, turnsignal relay
15
36660-33000
LEAD WIRE,EARTH
364 ₽/шт
