Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSF 1200 Bandit SUZUKI GSF1200 K5 Bandit SUZUKI (VIN: JS1A911) 19 - TRANSMISSION

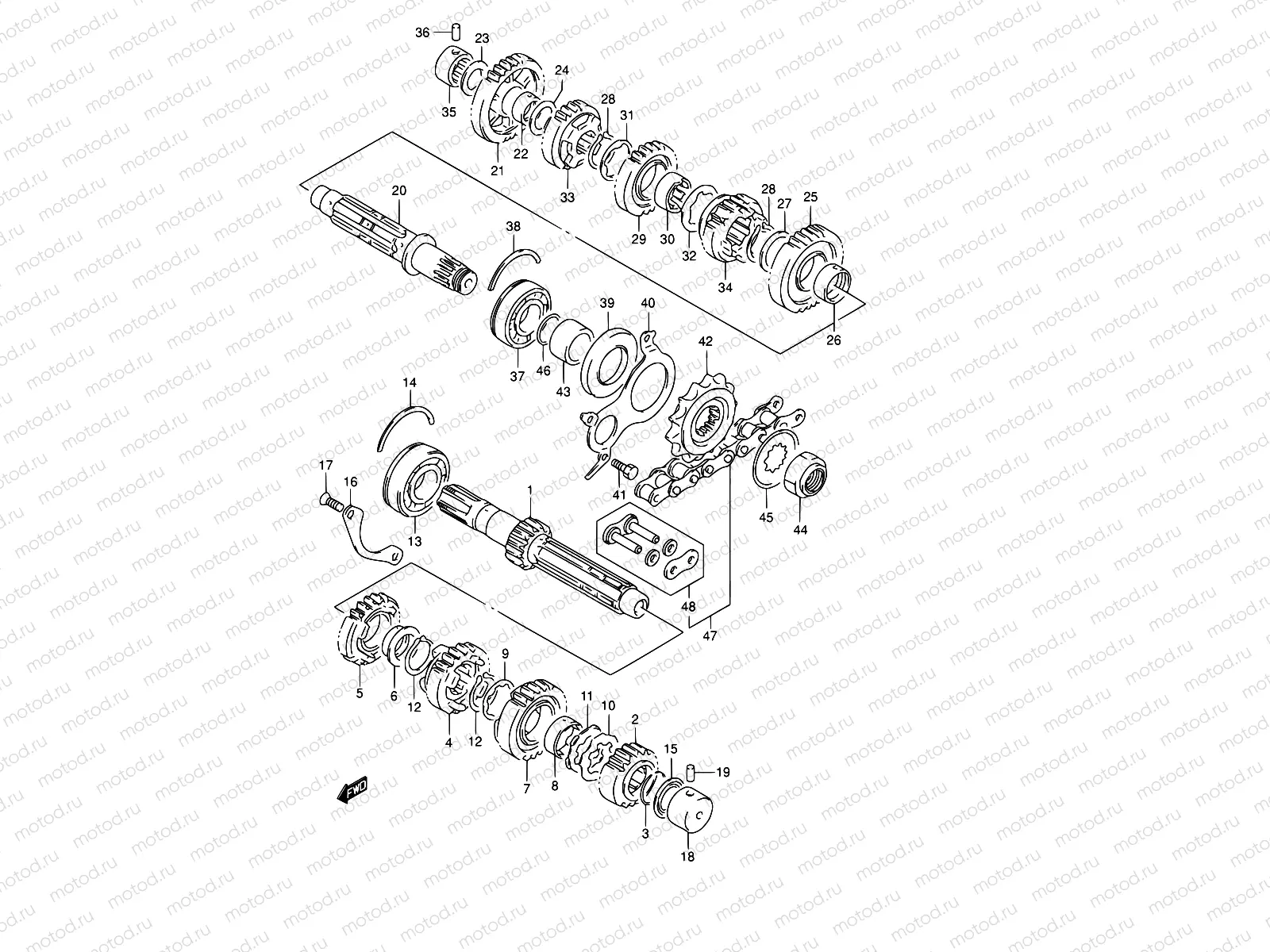

19 - TRANSMISSION

19 - TRANSMISSION

Например: 24121-40C21

1

24121-40C21

SHAFT,COUNTER(NT:13)

20 919 ₽/шт

2

24221-40C00

Gear,2nd drive

3

09380-25013

CIRCLIP

2 070 ₽/шт

4

24231-48B10

GEAR,3RD DRIVE(NT:20)

13 920 ₽/шт

5

24241-48B50

GEAR,4TH DRIVE(NT:22)

12 629 ₽/шт

6

24322-19F00

Втулка

1 193 ₽/шт

7

24251-48B30

GEAR,5TH DRIVE

11 613 ₽/шт

8

24252-48B00

USH,5TH DRIVE GEAR

1 521 ₽/шт

9

09167-25021

WASHER,LOCK

1 840 ₽/шт

10

09167-25013

Шайба

1 640 ₽/шт

11

09169-25001

Шайба

1 370 ₽/шт

12

09380-25003

КЛИПС

291 ₽/шт

13

09262-25105

Подшипник

5 653 ₽/шт

14

09390-62012

C RING

4 460 ₽/шт

15

09285-20006

Сальник

598 ₽/шт

16

24741-27A00

RETAINER,CNTR SHAFT BEARING

782 ₽/шт

17

09126-06011

SCREW,6X12

81 ₽/шт

18

09263-20119

Bearing(20X34X17.5)

5 474 ₽/шт

19

04221-07129

PIN

1 060 ₽/шт

20

24131-40C21

Вал ведущий

21 505 ₽/шт

21

24311-48B20

GEAR,1ST DRIVEN(NT:31)

10 244 ₽/шт

22

24312-02F00

ВТУЛКА

1 580 ₽/шт

23

09181-20251

Шайба (T:1.0)

172 ₽/шт

24

09181-22223

SHIM(22X34X1)

194 ₽/шт

25

24321-48B10

GEAR,2ND DRIVEN(NT:31)

18 190 ₽/шт

26

09300-28002

BUSH(28X32X11)

11 890 ₽/шт

27

09181-28167

SHIM(28X36X1)

3 050 ₽/шт

28

08331-31289

CIRCLIP

1 250 ₽/шт

29

24331-48B30

GEAR,3RD DRIVEN(NT:25)

10 244 ₽/шт

30

24332-48B01

USH,3RD DRIVEN GEAR

2 502 ₽/шт

31

09167-28001

WASHER,LOCK

2 310 ₽/шт

32

09167-28008

Пластина замка

4 610 ₽/шт

33

24341-06B30

GEAR,4TH DRIVEN(NT:23)

10 674 ₽/шт

34

24351-48B06

GEAR,5TH DRIVEN(NT:21)

20 400 ₽/шт

35

09263-20040

ПОДШИПНИК ШАРИКОВЫЙ

4 505 ₽/шт

36

04221-07209

ШТИФТ

102 ₽/шт

37

09267-25011

BEARING(25X62X21.6)

12 356 ₽/шт

38

09390-62012

C RING

4 460 ₽/шт

39

09283-34005

Уплотнение вала

2 720 ₽/шт

40

24751-40C01

RETAINER,DRIVE SHAFT OIL SEAL

587 ₽/шт

41

01500-0612B

Болт

1 210 ₽/шт

42

27510-17C10

SPROCKET,ENGINE(NT:15)

8 993 ₽/шт

43

09180-25100

SPACER(25X34X19)

18 730 ₽/шт

44

09159-20004

Гайка

759 ₽/шт

45

09167-25019

Шайба

194 ₽/шт

46

09280-25001

O RING(D:1,ID:24.5)

1 250 ₽/шт

47

27600-24F50-112

Цепь

32 453 ₽/шт

48

27620-24F60

JOINT SET,CHAIN

1 212 ₽/шт
