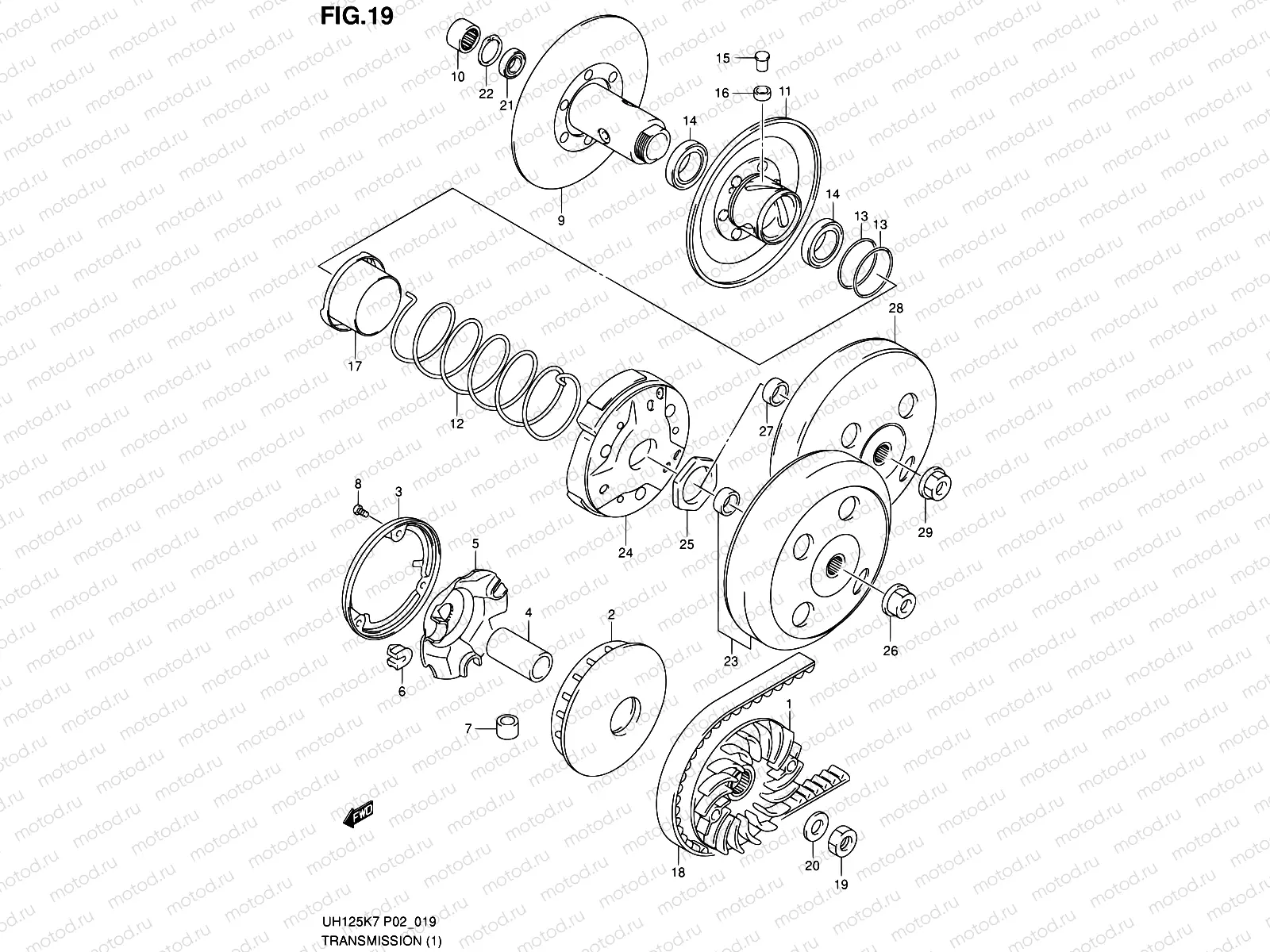

19 - TRANSMISSION (1)

19 - TRANSMISSION (1)

Например: 21110-21F01

1

21110-21F01

ACE,FIXED DRIVE

6 375 ₽/шт

2

21120-21F01

ACE,MOVABLE DRIVE

8 585 ₽/шт

3

21122-21F00

COVER,MOVABLE DRIVE

516 ₽/шт

4

21125-21F10

SPACER,MOVABLE DRIVE

2 033 ₽/шт

5

21431-21F50

PLATE,MOVABLE DRIVE

1 638 ₽/шт

6

21481-14F00

Слайдер

339 ₽/шт

7

21650-21F20

Ролик ведущего вариатора

1 156 ₽/шт

8

02142-0410A

Винт

81 ₽/шт

9

21210-03H00

FACE,FIXED DRIVEN

13 255 ₽/шт

10

21214-03H00

BEARING,FIXED DRIVEN,R

2 014 ₽/шт

11

21240-03H10

FACE,MOVABLE DRIVEN

12 903 ₽/шт

12

21243-03H00

SPRING,MOVABLE DRIVEN

2 326 ₽/шт

13

09280-41005

Кольцо уплотнительное

1 560 ₽/шт

14

09284-34002

SEAL,OIL(34X39X3)

1 341 ₽/шт

15

21248-33G00

PIN,MOVABLE DRIVEN

454 ₽/шт

16

21249-06F00

Кольцо/шайба

221 ₽/шт

17

21471-03H00

SHEET,MOVABLE DRIVEN

1 024 ₽/шт

18

27601-03H10

V-BELT,DRIVE

7 546 ₽/шт

19

09140-16005

Гайка

275 ₽/шт

20

09164-16005

WASHER

162 ₽/шт

21

09262-15035

BEARING(15X24X5)

3 539 ₽/шт

22

09381-24005

КЛИПС

1 840 ₽/шт

24

21501-46G11

Clutch assy,sho

25

09140-28004

ШАЙБА

4 650 ₽/шт

27

21213-03H00

SPACER,FIXED DRIVEN

888 ₽/шт

28

21220-20E50

HOUSING,CLUTCH

9 071 ₽/шт

29

09159-12068

Гайка

187 ₽/шт
