Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI PE 175 SUZUKI PE175 Z SUZUKI (VIN: JS1PG12A) 19 - REAR BRAKE

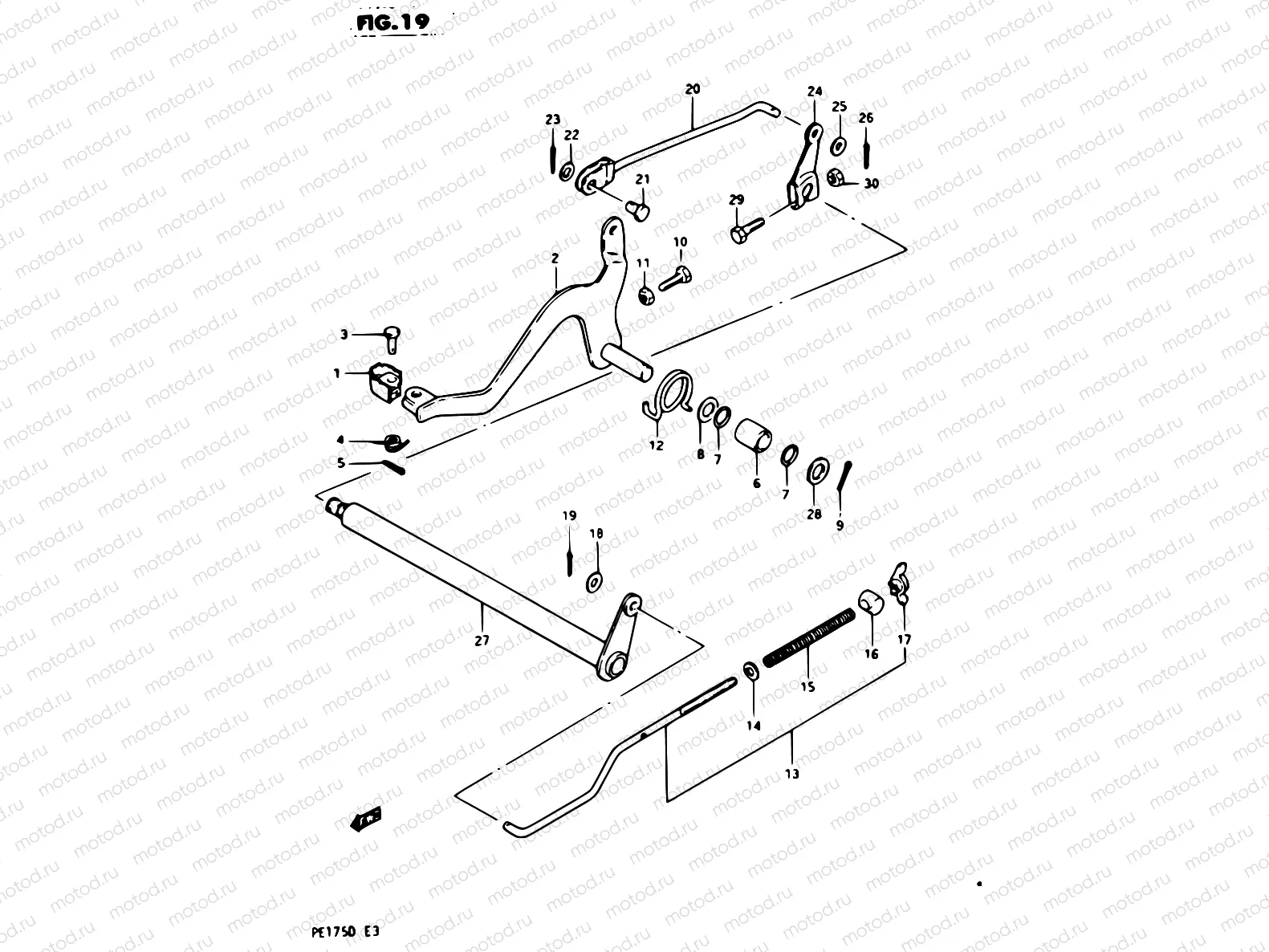

19 - REAR BRAKE

19 - REAR BRAKE
Например: 43110-40610
1
43110-40610
Pedal brake
2
43120-14411
Arm. brake pedal
3
09200-06038
PIN
1 210 ₽/шт
4
09444-11002
Spring
7
09280-12006
O RING(D:2.2,ID:11.8)
1 250 ₽/шт
8
08211-12221
WASHER
1 250 ₽/шт
9
J0411-13020-A
Pin
10
09100-06009
Болт
129 ₽/шт
11
08310-00067
Гайка
81 ₽/шт
12
09448-25007-XC0
Пружина
708 ₽/шт
13
43300-14400
Rod rr brake rr
14
08322-01087
Шайба
81 ₽/шт
15
09440-09004
SPRING
129 ₽/шт
16
09209-13018
Стопор
204 ₽/шт
17
09144-06055
.nut
18
08322-0106A
Шайба
81 ₽/шт
19
04111-2020A
Штифт
81 ₽/шт
20
43340-14400
Rod rr brake rr
21
09200-06013
PIN(L:13.5)
194 ₽/шт
22
08322-0106A
Шайба
81 ₽/шт
23
04111-2020A
Штифт
81 ₽/шт
24
43361-20300
Arm rr brk rod outer
25
08322-0106A
Шайба
81 ₽/шт
26
04111-2020A
Штифт
81 ₽/шт
27
43350-14400
Arm rr brake rod inner
28
09160-12017
Шайба
1 410 ₽/шт
29
09100-06150
BOLT(6X31)
1 170 ₽/шт
30
08319-31067
Гайка
153 ₽/шт
