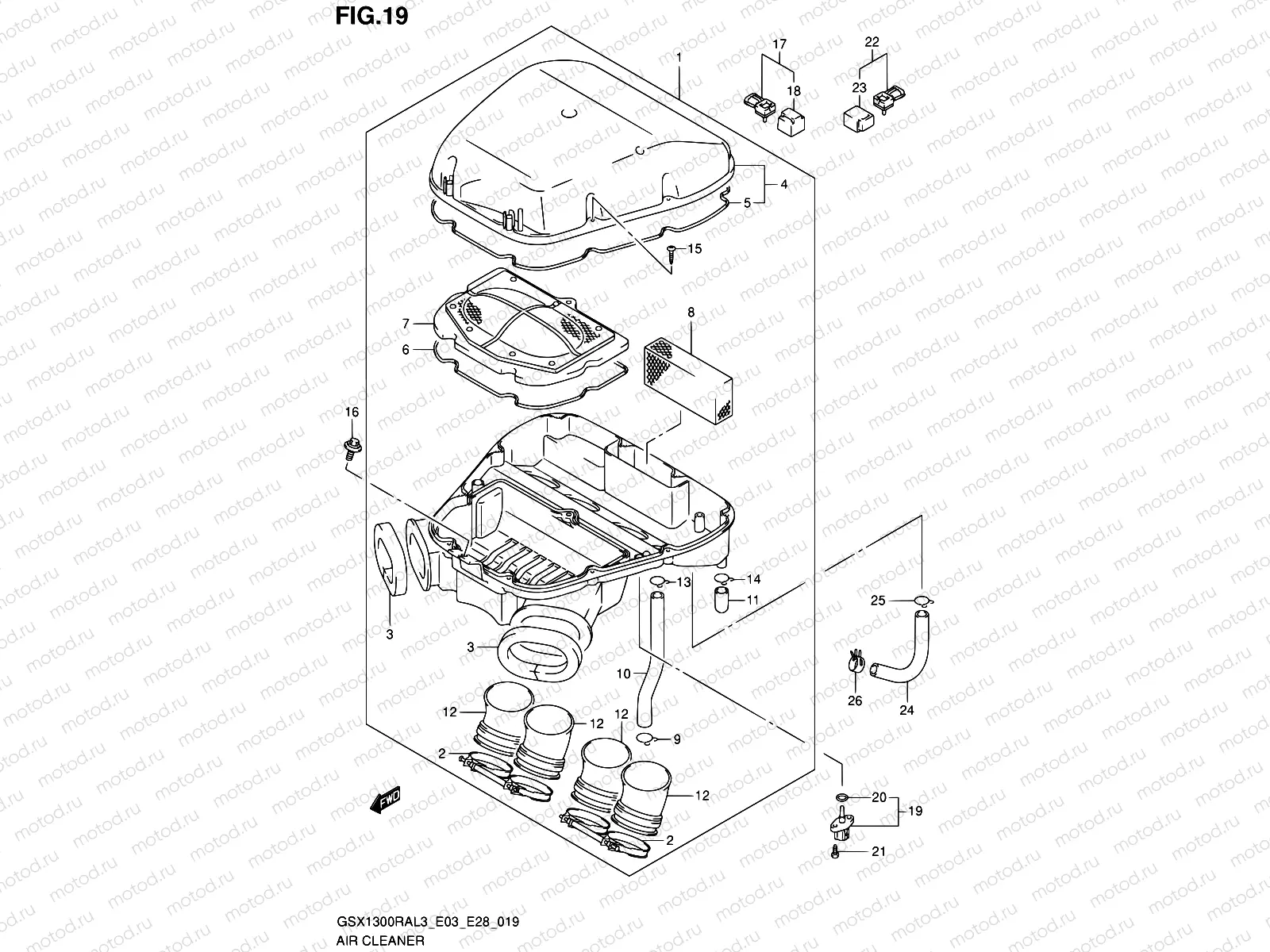

19 - AIR CLEANER (GSX1300RAL3 E03)

19 - AIR CLEANER (GSX1300RAL3 E03)

Например: 13700-15H01

1

13700-15H01

Boîte de filtre à air

2

13170-15H10

CLAMP,INTAKE PIPE

1 598 ₽/шт

3

13736-15H01

CUSHION,DUCT

680 ₽/шт

4

13740-15H00

Крышка

5 396 ₽/шт

5

13746-15H00

Прокладка стакана

657 ₽/шт

6

13756-15H00

Прокладка

782 ₽/шт

7

13780-15H00

ФИЛЬТР ВОЗДУШНЫЙ ДВИГАТЕЛЯ

4 760 ₽/шт

8

13788-15H00

ФИЛЬТР ВОЗДУШНЫЙ

580 ₽/шт

9

09401-16401

Хомут

1 800 ₽/шт

10

13853-15H01

Tube,breather

868 ₽/шт

11

13859-41B10

Заглушка

323 ₽/шт

12

13882-41G01

Tube,outlet b

13

09401-14101

ХОМУТ МАЛЫЙ

162 ₽/шт

14

09401-14101

ХОМУТ МАЛЫЙ

162 ₽/шт

15

03541-0525B

Винт

1 410 ₽/шт

16

09116-06115

Болт копрусный

153 ₽/шт

17

15630-29G40

SENSOR,BOOST

14 623 ₽/шт

18

15625-29G40

COVER

618 ₽/шт

19

13650-14G11

Sensor,air temp

20

13655-14G10

O RING

238 ₽/шт

21

03511-0516B

Болт

82 ₽/шт

22

15630-29G30

SENSOR,AIR PRESSURE

16 109 ₽/шт

23

15625-29G30

COVER

680 ₽/шт

24

13697-15H00

OSE,ISC VALVE

762 ₽/шт

25

09401-15101

ХОМУТ МАЛЫЙ

162 ₽/шт

26

09401-16403

ХОМУТ ПЫЛЬНИКА РУЛЕВОЙ ТЯГИ

1 370 ₽/шт
