Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 X SUZUKI (VIN: JS1GR7DB, JS1GR7DA) 18B - 2ND AIR (MODEL V E18,E39)

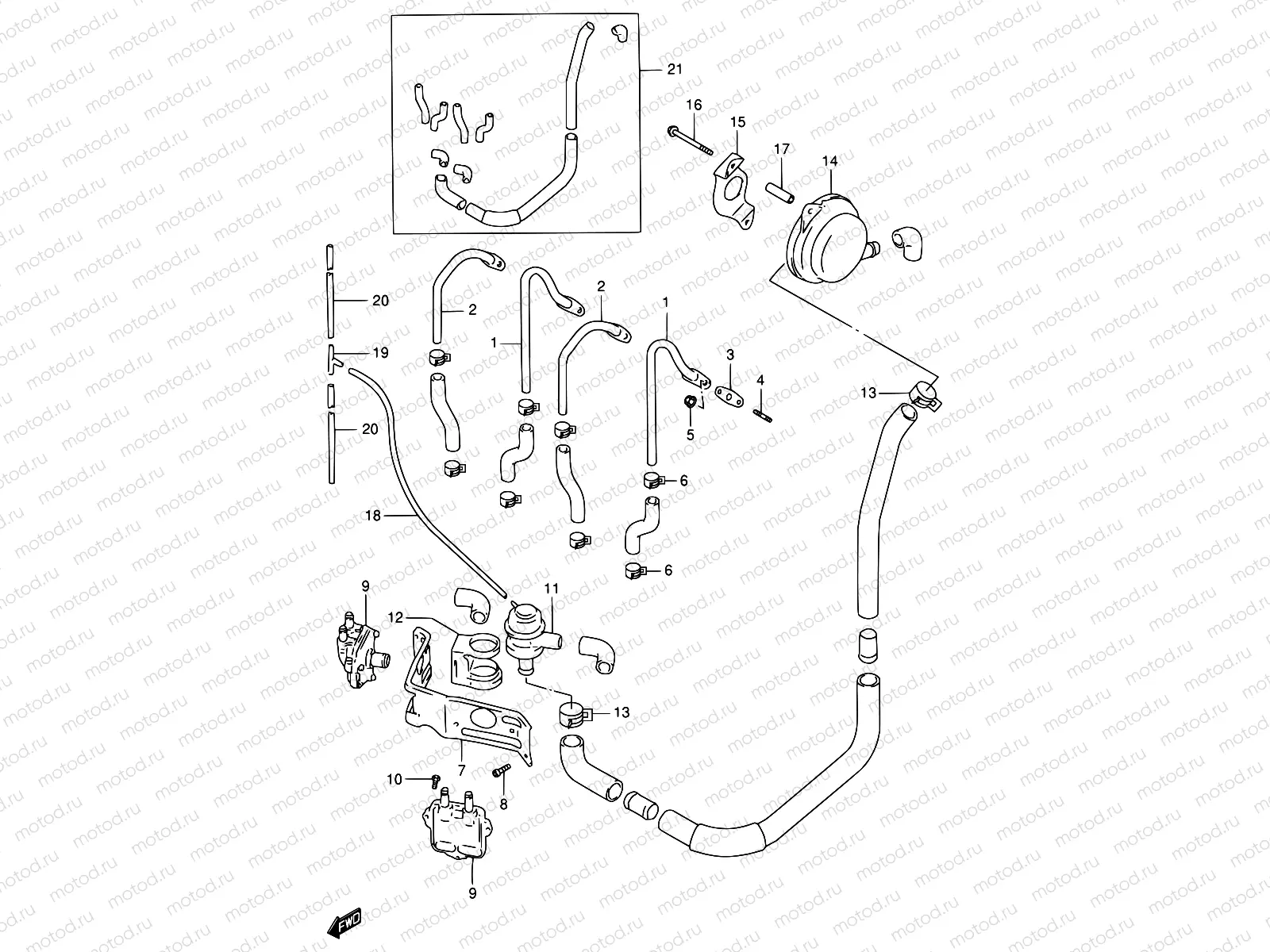

18B - 2ND AIR (MODEL V E18,E39)

18B - 2ND AIR (MODEL V E18,E39)

Например: 18410-33E00

1

18410-33E00

Pipe, 2nd air no.1

2

18420-33E00

Pipe, 2nd air no.2

3

18441-45C01

Прокладка

446 ₽/шт

4

01421-0616A

Болт заклепка

114 ₽/шт

5

08319-31067

Гайка

153 ₽/шт

6

09401-13417

ХОМУТ МАЛЫЙ

170 ₽/шт

7

18750-33E00

Bracket, 2nd air

8

09103-06285

БОЛТ

136 ₽/шт

9

18450-48B00

Valve assy, 2nd air switching

10

07130-05167

Болт

1 520 ₽/шт

11

18510-46E00

Valve assy, 2nd air switching

12

18487-01D00

Cushion, air valve

13

09401-23403

CLIP

2 970 ₽/шт

14

18700-17C03

LEANER ASSY,2ND AIR

15

18761-41C00

Holder

16

01550-0660A

Болт

102 ₽/шт

17

09180-06130

Entretoise

18

09355-40805-600

Шланг

663 ₽/шт

19

09367-06002

Соединение 3-х стороннее

179 ₽/шт

20

09355-50002-00B

Hose,5x10x2000

21

18410-33810

Hose set, 2nd air
