Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1400 SUZUKI GSX1400 K5 SUZUKI (VIN: JS1BN1111) 17A - MUFFLER (MODEL K5)

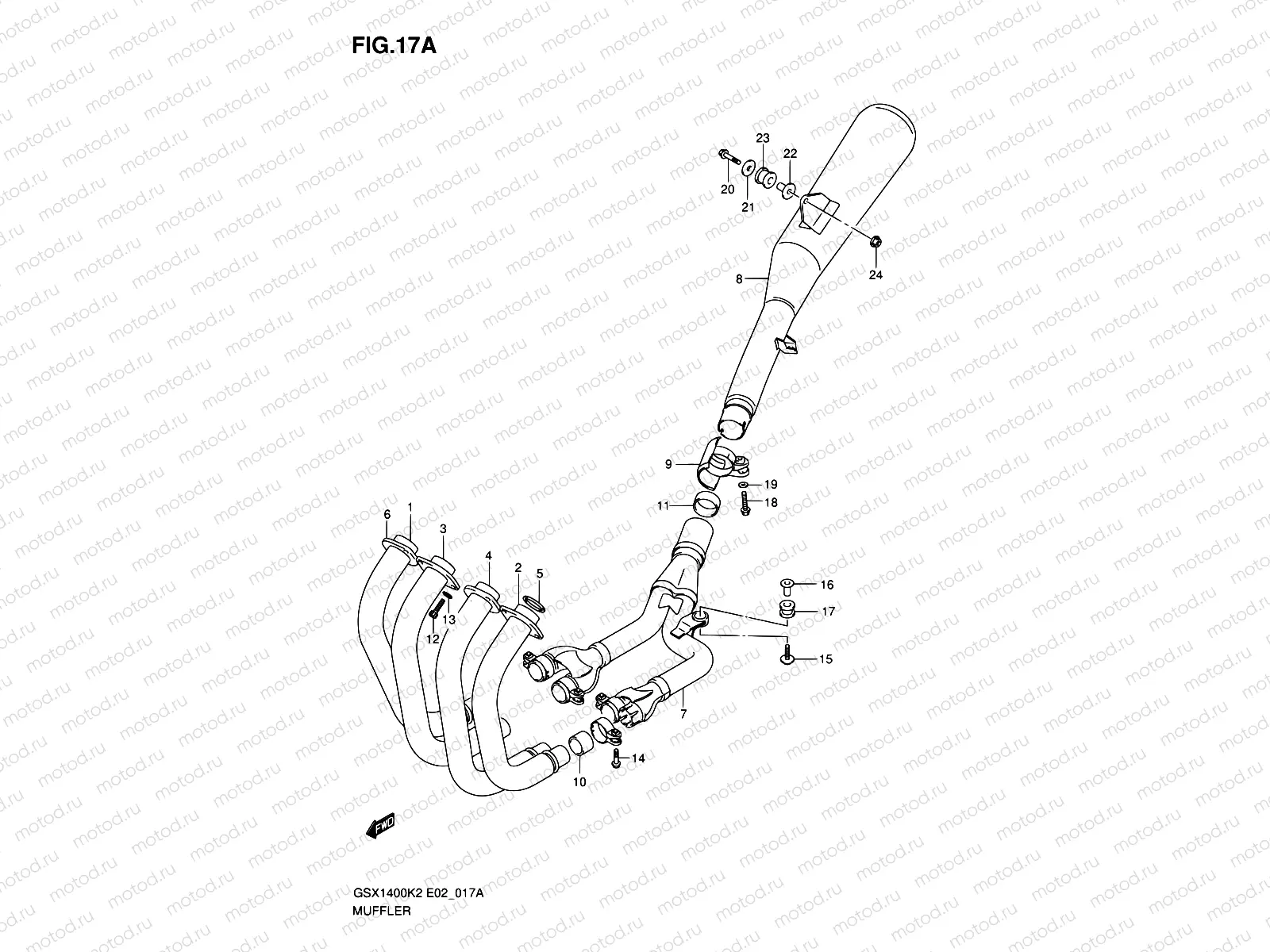

17A - MUFFLER (MODEL K5)

17A - MUFFLER (MODEL K5)

Например: 14150-42F30

1

14150-42F30

PIPE,EXHAUST,R

17 126 ₽/шт

2

14160-42F30

PIPE,EXHAUST,L

17 126 ₽/шт

3

14170-42F30

PIPE,EXHAUST CTR,R

17 126 ₽/шт

4

14180-42F30

PIPE,EXHAUST CTR,L

17 126 ₽/шт

5

14181-46E10

Прокладка

678 ₽/шт

6

14182-42F00

CLAMP,EXHAUST PIPE

3 400 ₽/шт

7

14210-42F30

BODY,MANF

90 882 ₽/шт

8

14310-42F40

BODY,MUFFLER

126 098 ₽/шт

8

14310-42F30

BODY,MUFFLER

119 306 ₽/шт

9

14459-42F30

CLAMP,MUFFLER

7 395 ₽/шт

10

14771-32E00

Коннектор

1 938 ₽/шт

11

14771-42F31

ПРОКЛАДКА

1 581 ₽/шт

12

09106-08165

БОЛТ

242 ₽/шт

13

09160-08145

Шайба

1 330 ₽/шт

14

09103-08365

БОЛТ

2 310 ₽/шт

15

09118-08145

BOLT(8X40)

194 ₽/шт

16

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

17

09320-12048

САЙЛЕНТБЛОК

469 ₽/шт

18

09103-08392

BOLT(8X40)

146 ₽/шт

19

08322-0108A

Шайба

85 ₽/шт

20

09103-08358

БОЛТ

605 ₽/шт

21

09160-08147

Шайба

243 ₽/шт

22

09180-08216

Кольцо/шайба

388 ₽/шт

23

09320-12049

САЙЛЕНТБЛОК

694 ₽/шт

24

08361-2508A

Гайка

337 ₽/шт
