Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650A-XA M0 V-Strom 650A/XTA (E21,C733AZL) SUZUKI (VIN: JS1C733A) 172A - FUEL PUMP

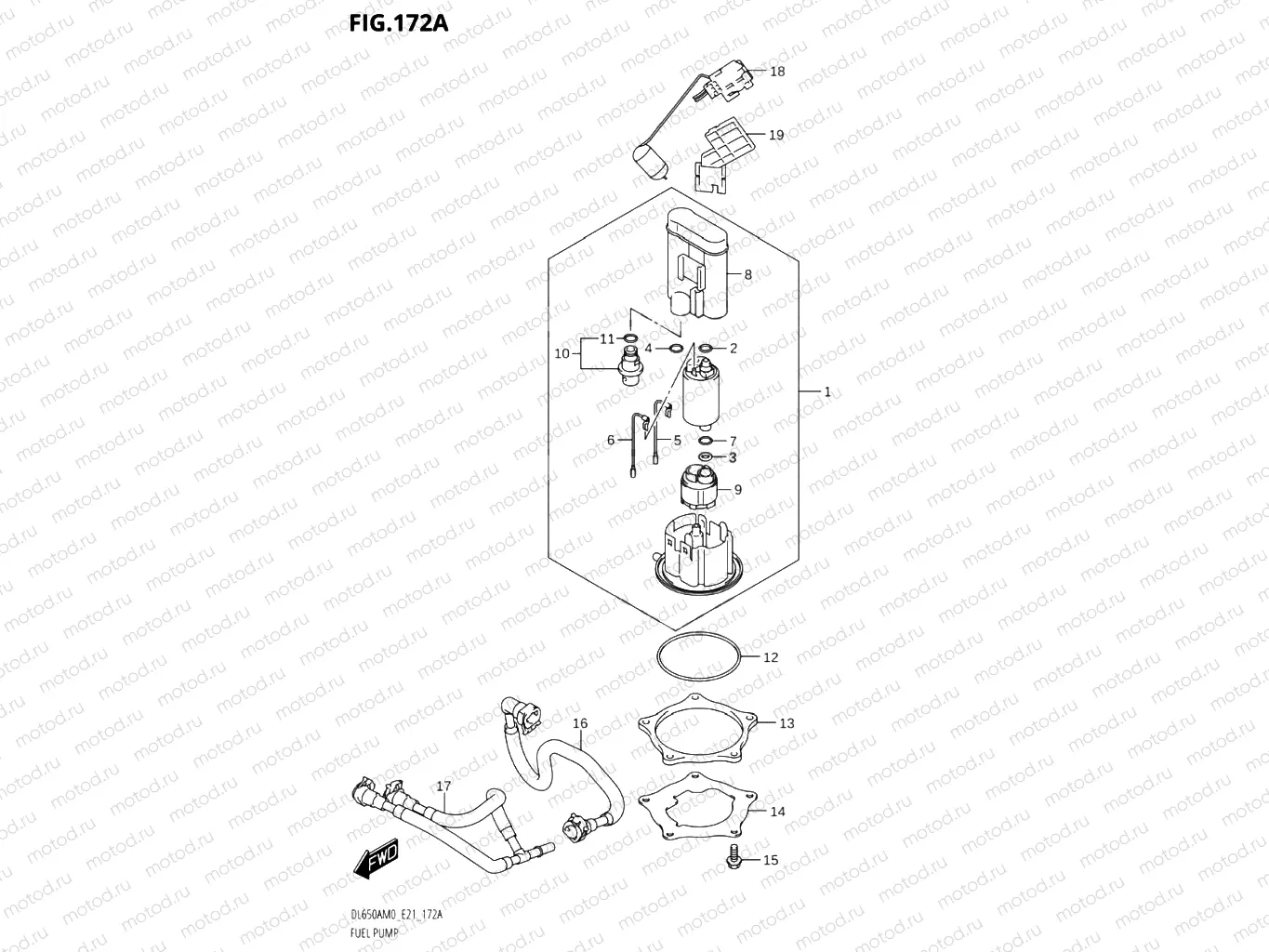

172A - FUEL PUMP

172A - FUEL PUMP
Например: 15100-28K00
1
15100-28K00
PUMP ASSY,FUEL
55 726 ₽/шт
1 шт. в узле
2
15113-05H00
O RING
1 502 ₽/шт
1 шт. в узле
3
15113-17K00
O RING
2 261 ₽/шт
1 шт. в узле
4
15113-35F00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
1 054 ₽/шт
1 шт. в узле
5
15114-17K00
WIRE,EARTH
2 659 ₽/шт
1 шт. в узле
6
15115-17K00
WIRE,LEAD
2 659 ₽/шт
1 шт. в узле
7
15116-17K00
COLLAR
1 292 ₽/шт
1 шт. в узле
8
15310-17K00
FILTER
8 237 ₽/шт
1 шт. в узле
9
15420-17K00
STRAINER
8 883 ₽/шт
1 шт. в узле
10
15610-17K00
REGULATOR
10 831 ₽/шт
1 шт. в узле
11
15113-48H00
O RING
1 114 ₽/шт
1 шт. в узле
12
15201-07L00
O-Ring,fuel Pump
1 752 ₽/шт
1 шт. в узле
13
15122-17K00
PLATE,FUEL PUMP INNER
2 913 ₽/шт
1 шт. в узле
14
15121-28K00
PLATE,FUEL PUMP OUTER
735 ₽/шт
1 шт. в узле
15
07120-0616A
Болт
1 520 ₽/шт
5 шт. в узле
16
15810-28K00
HOSE COMP,FUEL NO.1
5 474 ₽/шт
1 шт. в узле
17
15820-28K00
HOSE COMP,FUEL NO.2
7 507 ₽/шт
1 шт. в узле
18
34810-28K00
GAUGE ASSY,FUEL LEVEL SENDER
7 077 ₽/шт
1 шт. в узле
19
34815-28K00
ATTACHMENT,FUEL LEVEL GAUGE
1 408 ₽/шт
1 шт. в узле
