Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VZ 1600 Marauder SUZUKI VZ1600 K5 Marauder (E24) SUZUKI 17 - THROTTLE

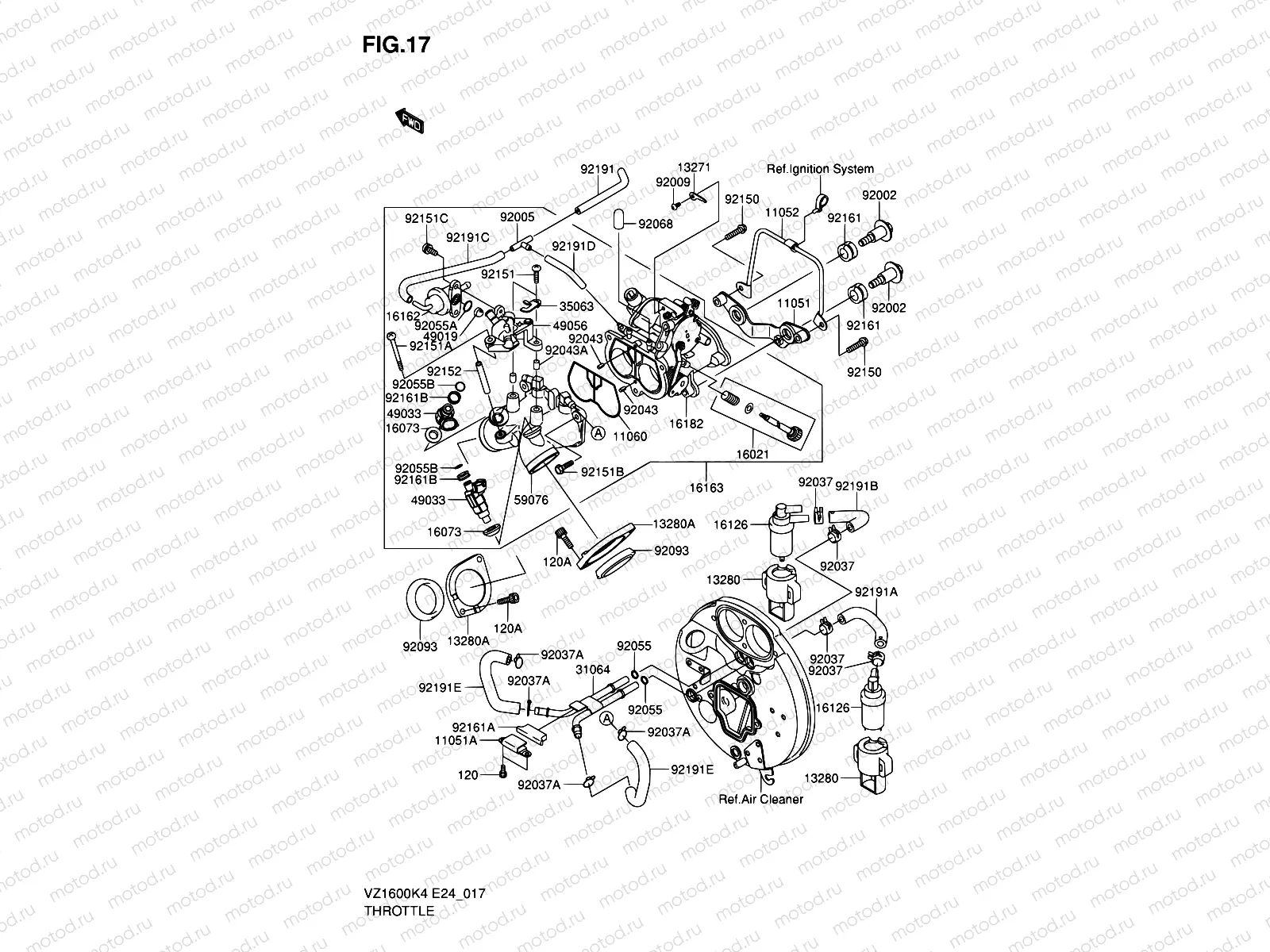

17 - THROTTLE

17 - THROTTLE
Например: KK120-S0510
120
KK120-S0510
BOLT-SOCKET
120
KK120-Z0620
BOLT-SOCKET
11051
K1105-11333
BRACKET
11051
K1105-11345
BRACKET
11052
K1105-21067
Bracket,high te
11060
K1106-01928
GASKET,THROTTLE BODY
13271
K1327-11314
Plate,starter c
13280
K1328-01154
Holder
13280
K1328-01139
Holder
16021
K1602-11227
Screw-throttle
16073
K1607-31119
Insulator
16126
K1612-61372
Valve
16162
K1616-21054
Regulator-fuel
16163
K1616-31113
Throttle-assy
16182
K1618-21003
Body-throttle
31064
K3106-41242
Pipe-comp
35063
K3506-31148
Stay
49019
K4901-93707
Filter-fuel,str
49033
K4903-31057
Nozzle-injectio
49056
K4905-61054
Pipe-injection
59076
K5907-61113
Pipe d’admission
92002
K9200-21595
Bolt
92005
K9200-51366
Fitting
92009
K9200-91903
Screw,4x6
92037
K9203-71271
Clamp,fuel tube
92037
K9203-71181
Collier
92043
K9204-31600
Pin,throttle bo
92043
K9204-31601
Pin,delivery pi
92055
K9205-51622
O-Ring (INJECTION NOZZLE)
92055
K9205-51620
Ring-o,fuel reg
92055
KK920-55029
Ring-o,7.8x3.5
92068
KK920-68006
Заглушка ,12X25
291 ₽/шт
92093
K9209-30072
SEAL
1 185 ₽/шт
92150
K9215-01779
Болт 6X25
352 ₽/шт
92151
K9215-11587
Bolt,throttle b
92151
K9215-11588
Vis (6x12)
92151
K9215-11585
Bolt,5x20
92151
K9215-11586
Bolt,5x75
92152
K9215-21206
Collar,delivery
92161
K9216-11083
Damper,injectio
92161
K9216-11058
Damper
92161
K9216-11062
Damper
92191
K9219-11608
Tube
92191
K9219-11403
Tube,l=55
92191
K9219-11402
Tube,l=130
92191
K9219-11368
Tube,front valv
92191
K9219-11367
Tube,rear valve
92191
K9219-11298
Tube,throttle-b
