Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI EN 125 SUZUKI EN125-2A K3 SUZUKI 17 - STARTING MOTOR (DAICHOKOU)

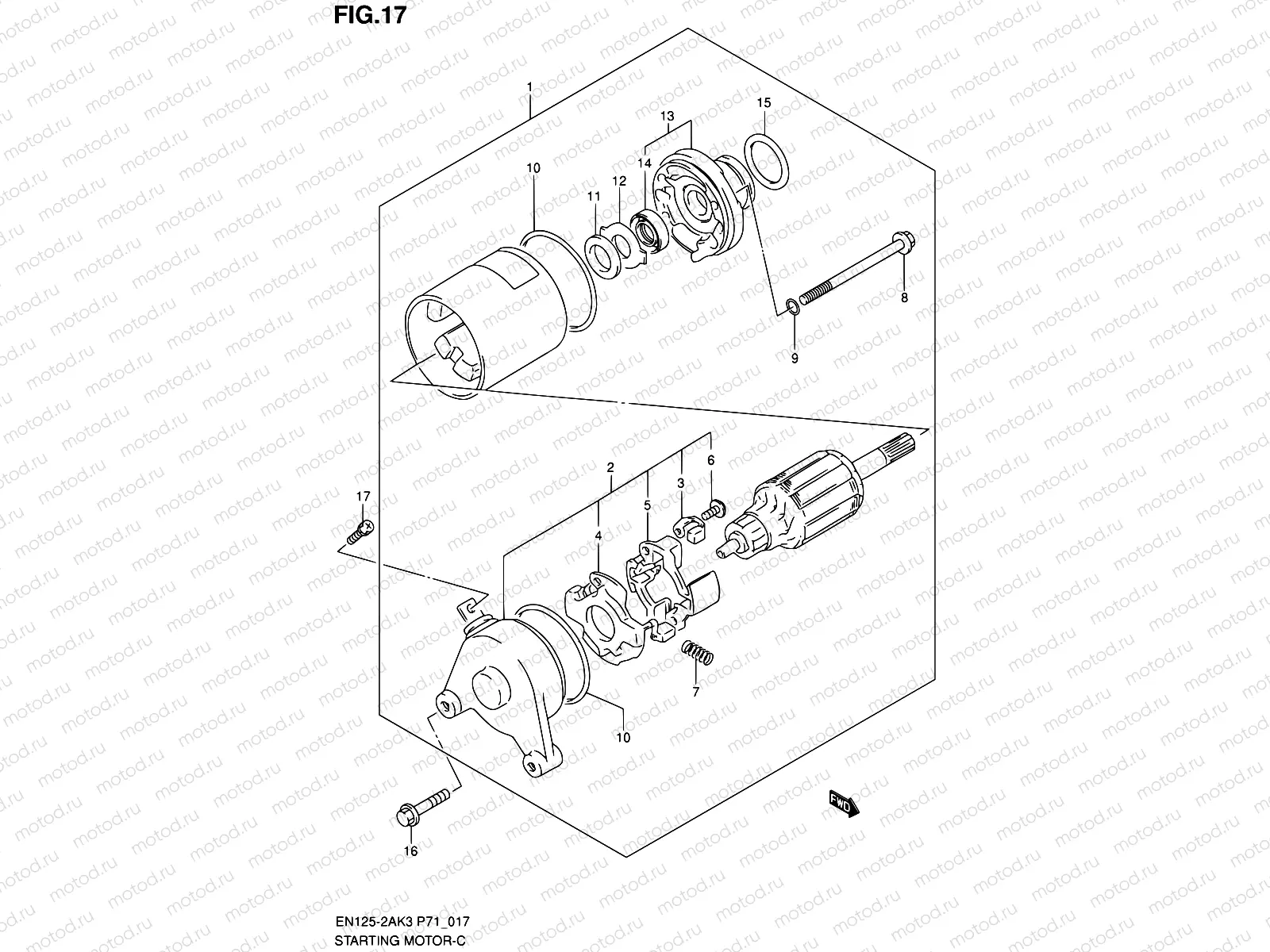

17 - STARTING MOTOR (DAICHOKOU)

17 - STARTING MOTOR (DAICHOKOU)

Например: 31100-05530-000

1

31100-05530-000

Мотор стартера

43 010 ₽/шт

2

31175-05530-000

FRAME ASSY,COMMUTATOR END

6 295 ₽/шт

3

31132-05530-000

BRUSH

493 ₽/шт

4

31130-05530-000

BRUSH SUB ASSY

1 584 ₽/шт

5

31133-05530-000

HOLDER,BRUSH

1 294 ₽/шт

6

31134-05530-000

Болт

106 ₽/шт

7

31135-05530-000

Пружина

133 ₽/шт

8

31281-05530-000

Болт

321 ₽/шт

9

31156-05530

O RING

152 ₽/шт

10

31264-05530

O RING

297 ₽/шт

11

31361-055A0

SHIM

106 ₽/шт

12

31361-055B0

Плата замка

133 ₽/шт

13

31150-05530-000

HOUSING ASSY

4 927 ₽/шт

14

31153-05530

Сальник

841 ₽/шт

15

09280-24003

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

179 ₽/шт

16

01547-06307

Болт

102 ₽/шт

17

09137-05004

Винт (5X8)

1 170 ₽/шт
