Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650A K8 V-Strom (E02,E19,E24,E37) SUZUKI (VIN: JS1B1112) 17 - OIL COOLER

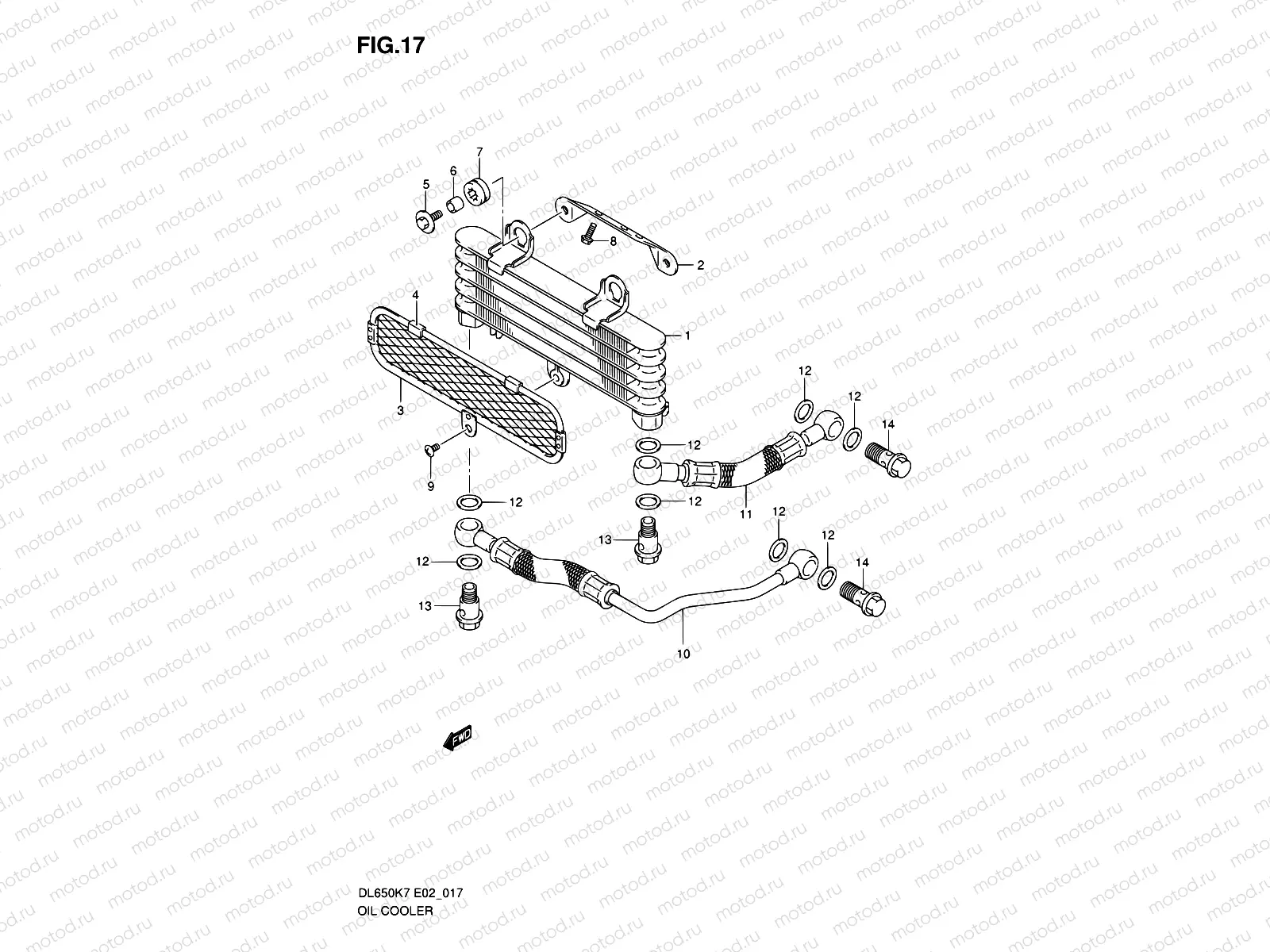

17 - OIL COOLER

17 - OIL COOLER

Например: 16600-27G00

1

16600-27G00

COOLER ASSY,OIL

59 092 ₽/шт

2

16620-27G00

BRACKET,OIL COOLER

653 ₽/шт

3

16650-27G02

uard,oil Cooler

3 245 ₽/шт

4

17765-09F01

Protector,ctr

231 ₽/шт

5

09116-06167

БОЛТ

145 ₽/шт

6

09180-06310

SPACER

178 ₽/шт

7

09320-10055

CUSHION

187 ₽/шт

8

01550-0616A

БОЛТ

81 ₽/шт

9

02142-0510A

Болт

82 ₽/шт

10

16460-17G00

Hose, oil cooler rh

11

16470-17G00

HOSE,OIL COOLER,L

8 289 ₽/шт

12

09168-14004

Прокладка

129 ₽/шт

13

09360-12012

Болт соединяющий

7 080 ₽/шт

14

09360-14012

БОЛТ

731 ₽/шт
