Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 400 SUZUKI GSX400E T SUZUKI 17 - GEAR SHIFTING

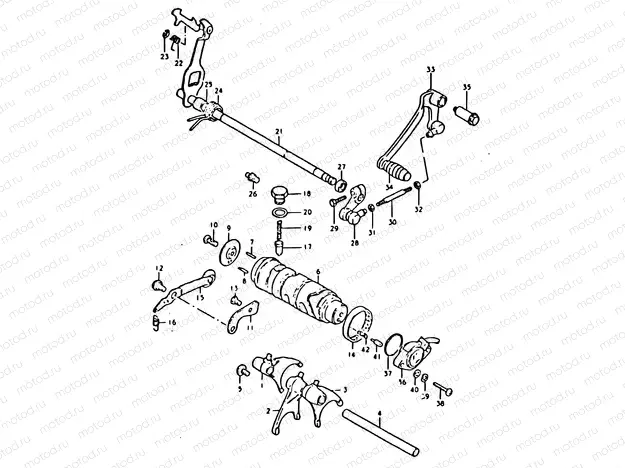

17 - GEAR SHIFTING

17 - GEAR SHIFTING

Например: 25211-44001

1

25211-44001

FORK,GEAR SHIFT NO.1

5 122 ₽/шт

2

25221-44001

FORK,GEAR SHIFT NO.2

5 122 ₽/шт

3

25231-44000

FORK,GEAR SHIFT NO.2

5 122 ₽/шт

4

25411-18900

SHAFT,GEAR SHIFT FORK

1 150 ₽/шт

5

02142-06107

Болт

85 ₽/шт

5

02142-0610B

Винт держатель

85 ₽/шт

6

25311-47001

Cam, gear shifting

7

09261-04001

PIN(4X18.5)

900 ₽/шт

8

09209-04013

PIN

2 850 ₽/шт

9

25322-44000

RETAINER,GEAR SHIFT CAM DR PIN

192 ₽/шт

10

02112-3616A

Болт

1 210 ₽/шт

10

02112-0616A

Болт

81 ₽/шт

11

25341-33300

GUIDE,GEAR SHIFT CAM

465 ₽/шт

12

09111-06054

BOLT(6X14.6)

1 840 ₽/шт

13

01107-06168

Vis

14

09263-40001

BEARING(40X47X12)

1 935 ₽/шт

15

25350-44000

STOPPER,GEAR SHIFT CAM NO.1

852 ₽/шт

16

09443-09007

Пружина

1 290 ₽/шт

17

25351-30010

STOPPER,GEAR SHIFT CAM NO.2

782 ₽/шт

18

25354-30000

HOLDER,GEAR SHIFT CAM STOP SPR

504 ₽/шт

19

09440-06014

Spring

20

09168-14004

Прокладка

129 ₽/шт

21

25510-44100

SHAFT,GEAR SHIFT

7 650 ₽/шт

22

09448-13008

Пружина

1 920 ₽/шт

23

08332-1107A

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

24

09444-26013

SPRING

179 ₽/шт

25

09180-12068

Пружина

1 840 ₽/шт

26

25671-01011

STOPPER,GEAR SHIFT ARM

204 ₽/шт

27

09285-12006

САЛЬНИК ТРАНСМИССИИ, РЕЗИНА

275 ₽/шт

28

25520-47020

Arm

29

01500-06207

Болт

81 ₽/шт

30

25525-44110

ROD,GEAR SHIFT LINK(L:60)

504 ₽/шт

31

08310-00067

Гайка

81 ₽/шт

32

09140-06011

Гайка

820 ₽/шт

33

25600-44100

LEVER ASSY,GEAR SHIFT

6 412 ₽/шт

34

25652-16510

Rubber,gear Shift Pedal

355 ₽/шт

35

25617-44101

Shaft,gear shif

36

37720-45100

TERMINAL BASE ASSY,GEAR SHIFT

6 803 ₽/шт

37

09280-26005

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

194 ₽/шт

38

02112-75207

Болт

1 640 ₽/шт

39

08321-0105A

Пластина замка

81 ₽/шт

40

08322-01057

Шайба

85 ₽/шт

41

09209-05011

ШТИФТ

178 ₽/шт

42

09440-04010

ПРУЖИНА

113 ₽/шт
