Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSF 1200 Bandit SUZUKI GSF1200 X Bandit SUZUKI (VIN: JS1GV75A) 16B - SECOND AIR (GSF1200SAV/SAW/SAX/SAY E18)

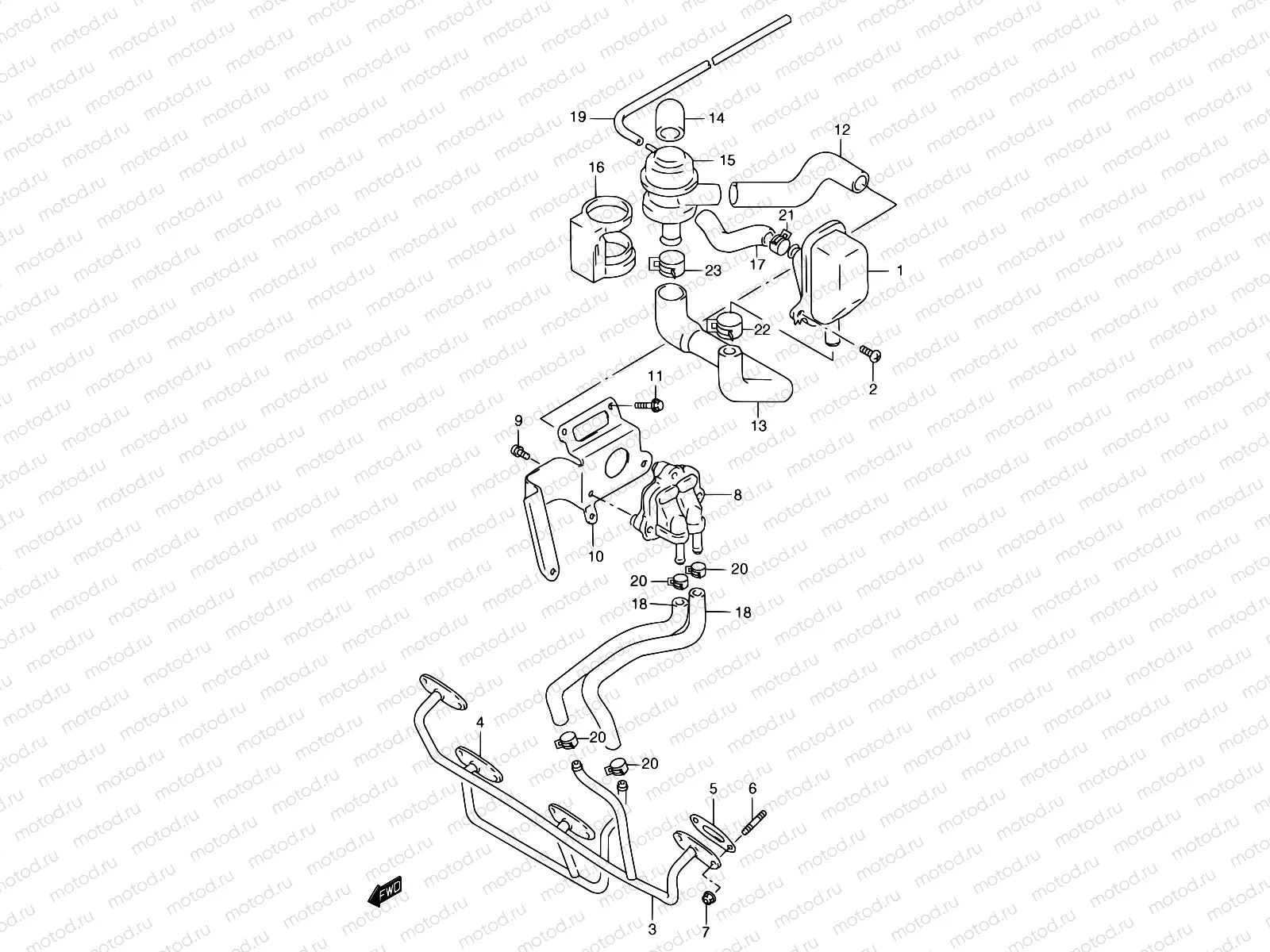

16B - SECOND AIR (GSF1200SAV/SAW/SAX/SAY E18)

16B - SECOND AIR (GSF1200SAV/SAW/SAX/SAY E18)

Например: 13800-27E00

1

13800-27E00

CLEANER ASSY,2ND AIR

3 480 ₽/шт

2

02142-0616A

Болт

81 ₽/шт

3

18410-27E10

Pipe, 2nd air outer

4

18420-27E10

Pipe, 2nd air inner

5

18441-17C11

GASKET,2ND AIR PIPE

1 020 ₽/шт

6

01421-0616A

Болт заклепка

114 ₽/шт

7

08319-31067

Гайка

153 ₽/шт

8

18450-48B00

Valve assy, 2nd air reed

9

07130-05167

Болт

1 520 ₽/шт

10

18670-27E00

Bracket, lh

11

01550-0612B

БОЛТ

81 ₽/шт

12

18521-27E10

Hose, 2nd air sw valve

13

18711-27E10

Hose, 2nd air cleaner

14

18483-39A00

Cap, switching valve

15

18510-46E00

Valve assy, 2nd air switching

16

18487-01D00

Cushion, air valve

17

18731-27E10

Hose, cleaner inlet

18

09355-90145-600

Шланг 9X14X600

1 421 ₽/шт

19

09355-40805-600

Шланг

663 ₽/шт

20

09401-13417

ХОМУТ МАЛЫЙ

170 ₽/шт

21

09401-16403

ХОМУТ ПЫЛЬНИКА РУЛЕВОЙ ТЯГИ

1 370 ₽/шт

22

09401-20405

ХОМУТ МАЛЫЙ

2 070 ₽/шт

23

09401-25406

ХОМУТ МАЛЫЙ

2 580 ₽/шт
