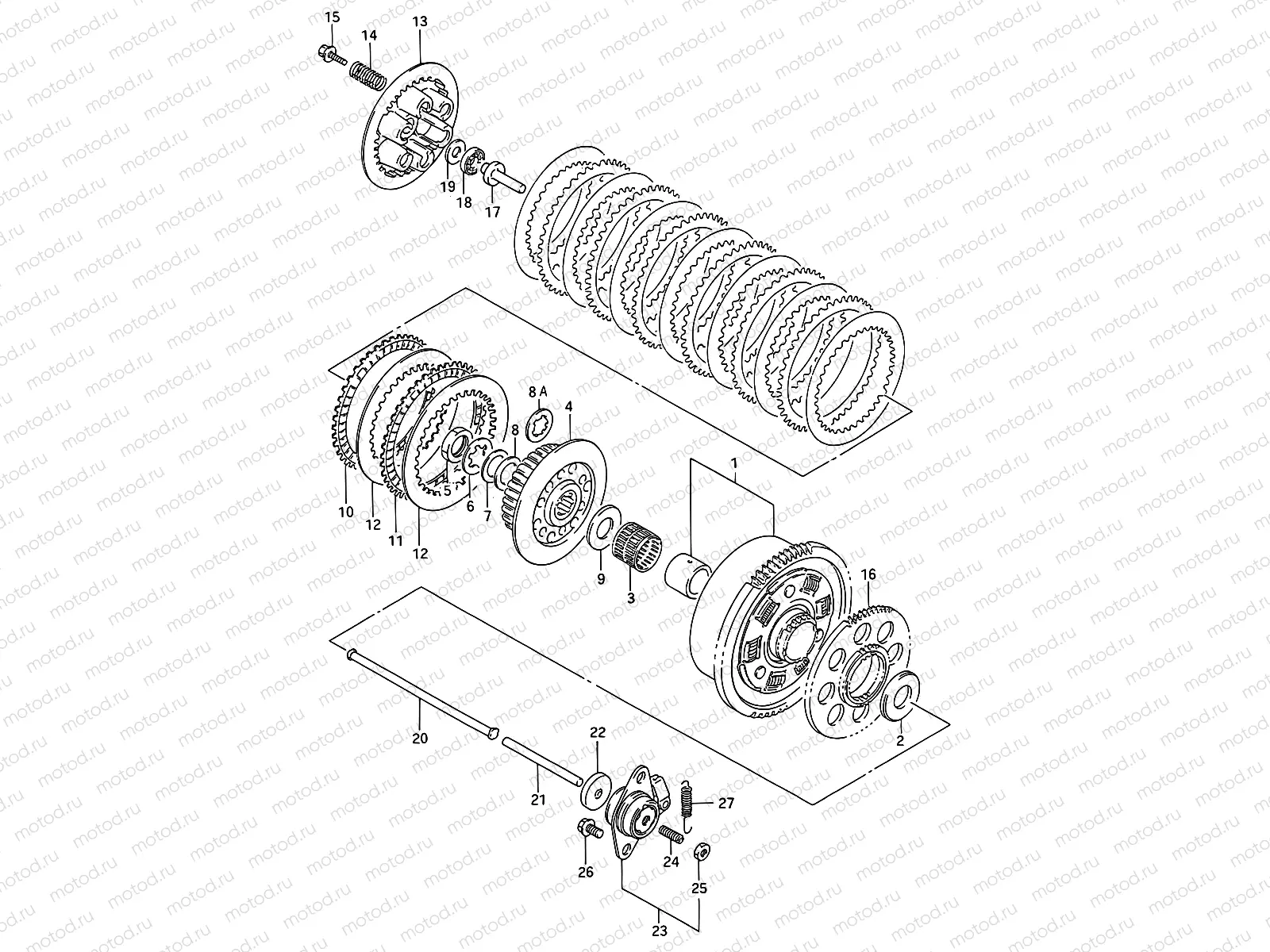

16A - CLUTCH (MODEL N/P/R/S/T)

16A - CLUTCH (MODEL N/P/R/S/T)
Например: 21200-07867
1
21200-07867
2
09160-25071
Шайба
8 090 ₽/шт
3
09263-35017
BEARING(35X40X35.8)
10 030 ₽/шт
4
21410-17D01
Hub,clutch slv.
5
09140-24012
Nut
6
09167-25007
ШАЙБА
1 560 ₽/шт
7
09164-24006
ШАЙБА ФОРСУНКИ
226 ₽/шт
8
09181-25186
Шайба (T:0.50)
2 070 ₽/шт
9
09160-25056
WASHER
727 ₽/шт
10
21441-20C00
PLATE,CLUTCH DRIVE
2 678 ₽/шт
11
21442-17C00
PLATE,CLUTCH DRIVE NO.2
2 366 ₽/шт
12
21451-17C00
Диск сцепления
1 071 ₽/шт
13
21462-17E01
DISC,CLUTCH PRESSURE
6 843 ₽/шт
14
09440-20020
Пружина
275 ₽/шт
15
09116-06150
БОЛТ
136 ₽/шт
16
22721-17D02
Gear,generator
17
23121-31E00
PIECE,CLUTCH PUSH
1 377 ₽/шт
18
09263-15003
Подшипник 15X28X2
532 ₽/шт
19
09160-15045
Шайба
211 ₽/шт
20
23110-20C00
Штанга муфты
1 677 ₽/шт
21
23111-31301
Штанга муфты
2 244 ₽/шт
22
09285-06015
САЛЬНИК УПЛОТНИТЕЛЬНЫЙ
840 ₽/шт
23
23200-31300
SCREW ASSY,CLUTCH RELEASE
10 578 ₽/шт
24
09134-06010
Болт
1 880 ₽/шт
25
08310-00067
Гайка
81 ₽/шт
26
01550-06167
БОЛТ
72 ₽/шт
26
01550-0616B
БОЛТ
81 ₽/шт
27
09443-07038
Пружина
2 310 ₽/шт
