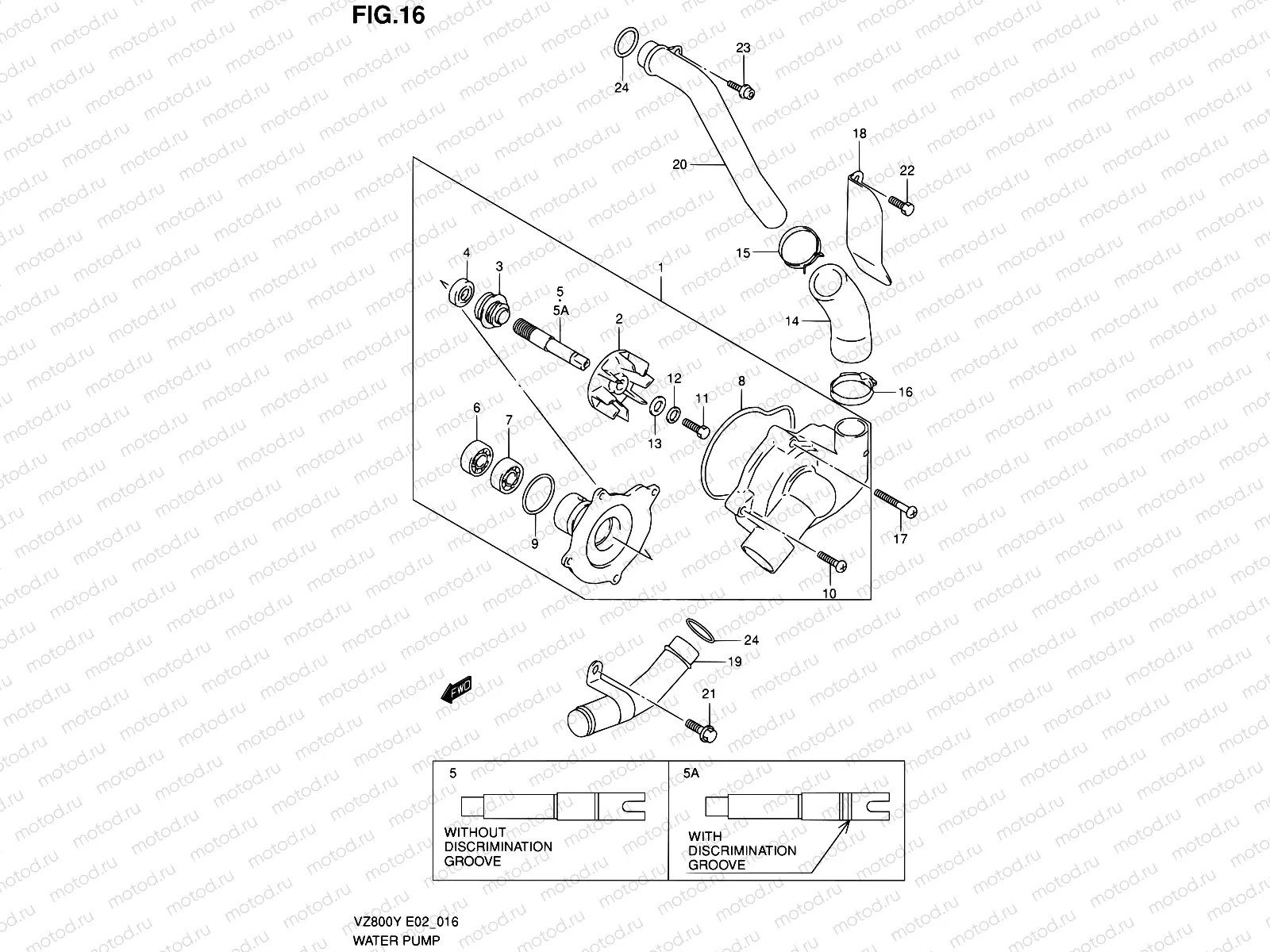

16 - WATER PUMP

16 - WATER PUMP
Например: 17400-48E01
1
17400-48E01
Pump Assy,water
55 352 ₽/шт
2
17491-17E01
Импеллер
3 145 ₽/шт
3
17470-02F11
САЛЬНИК МЕХАНИЧЕСКИЙ НАСОСА ВОДЯНОГО
2 528 ₽/шт
4
09283-10004
SEAL,OIL(10X21X5)
242 ₽/шт
5
17511-48E01
SHAFT,WATER PUMP
9 619 ₽/шт
5
17511-48E01
SHAFT,WATER PUMP
9 619 ₽/шт
6
09262-10014
BEARING(10X26X8)
872 ₽/шт
7
09262-12001
Подшипник
1 131 ₽/шт
8
17418-33401
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
549 ₽/шт
9
17435-33400
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
1 001 ₽/шт
10
02112-0616A
Болт
81 ₽/шт
11
09100-06099
BOLT(6X13)
136 ₽/шт
12
09164-06006
Шайба
113 ₽/шт
13
09168-06025
Шайба
129 ₽/шт
14
17859-48E00
HOSE,WATER PUMP OUTLET
997 ₽/шт
15
09401-26407
CLIP
2 970 ₽/шт
16
09402-32511
Хомут
646 ₽/шт
17
01547-0635B
Болт
97 ₽/шт
18
17871-48E00
PLATE,WATER HOSE
516 ₽/шт
19
17880-48E00
PIPE,WATER PUMP INLET
1 771 ₽/шт
20
17890-48E00
PIPE,WATER PUMP OUTLET
2 463 ₽/шт
21
01550-0612B
БОЛТ
81 ₽/шт
22
01550-0610B
Болт
85 ₽/шт
23
07120-06127
Болт
1 840 ₽/шт
24
09280-21015
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО
114 ₽/шт
