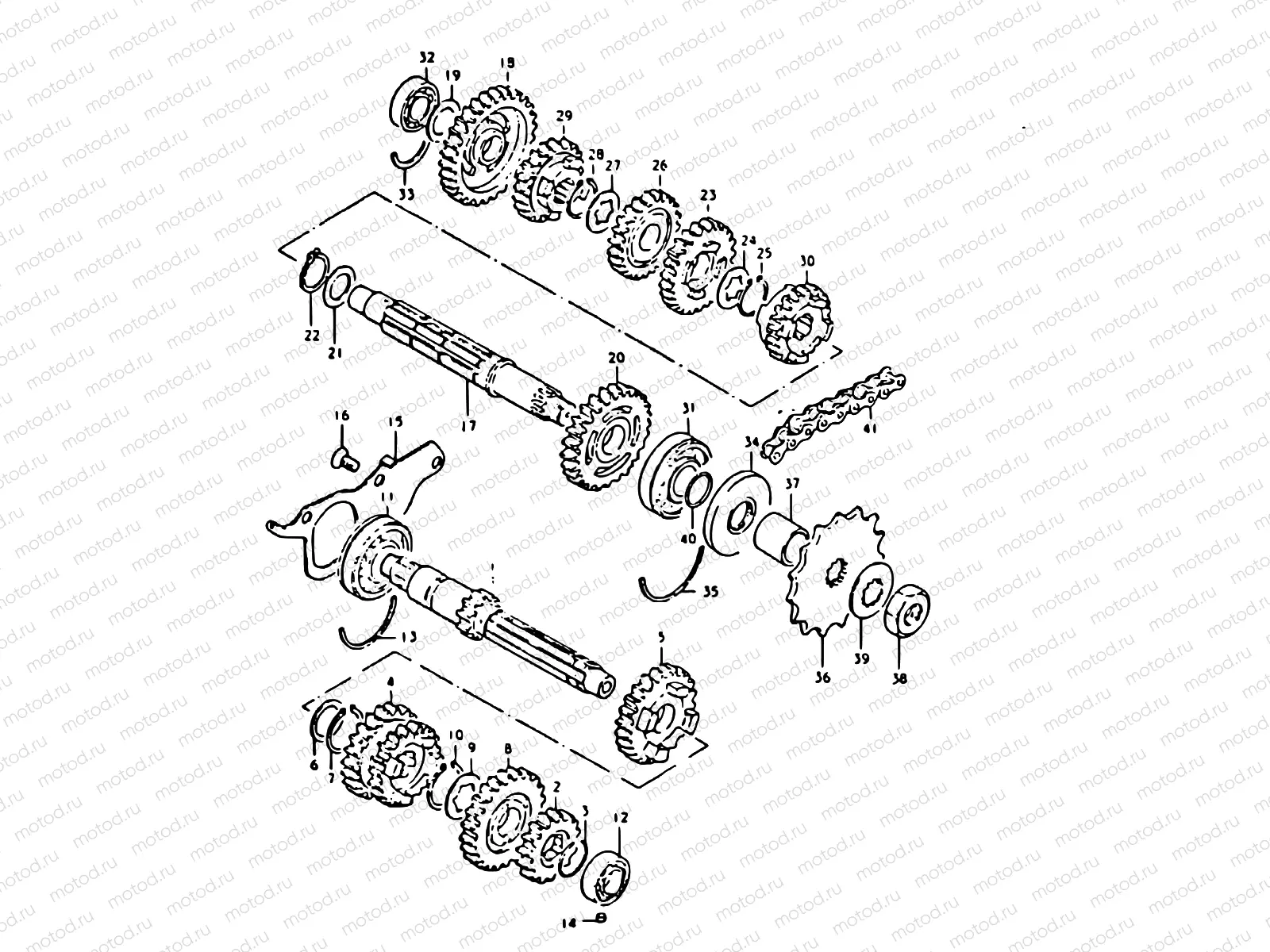

16 - TRANSMISSION

16 - TRANSMISSION
Например: 24121-11402
1
24121-11402
Countershaft (nt:12)
2
24221-11300
Gear, 2nd drive (nt:16)
3
09380-22009
Стопорное кольцо (пружинное)
1 490 ₽/шт
4
24231-11300
Gear, 3/4 drive (nt:19/21)
5
24251-11300
Gear, 5th drive (nt:22)
6
09181-22139
SHIM,22X28X1.0
204 ₽/шт
7
08331-31229
Зажимы
153 ₽/шт
8
24261-11300
Gear, 6th drive (nt:23)
9
09167-22011
Пластина замка
1 880 ₽/шт
10
08331-31229
Зажимы
153 ₽/шт
11
08160-62050
Подшипник B1 25X52X15
1 324 ₽/шт
12
09263-17015
Bearing, lh
13
09390-52002
C-ring
14
04221-07129
PIN
1 060 ₽/шт
15
24741-11401
16
02122-0612B
Болт
82 ₽/шт
17
24131-11401
18
24310-11300
Gear, 1st driven (nt:30)
19
09181-15166
SHIM(15X24X1)
179 ₽/шт
20
24320-11300
Gear, 2nd driven (nt:26)
21
09181-22139
SHIM,22X28X1.0
204 ₽/шт
22
08331-31229
Зажимы
153 ₽/шт
23
24331-11400
Gear, 3rd driven (nt:23)
24
09167-22011
Пластина замка
1 880 ₽/шт
25
08331-31229
Зажимы
153 ₽/шт
26
24341-11300
Gear, 4th driven (nt:21)
27
09167-22011
Пластина замка
1 880 ₽/шт
28
08331-31229
Зажимы
153 ₽/шт
29
24351-11300
Gear, 5th driven (nt:19)
30
24361-11300
Gear, 6th driven (nt:18)
31
08160-63040
Подшипник B1 20X52X15
1 438 ₽/шт
32
08123-6202B
Wheel bearing
33
09390-35001
C RING
34
09283-25069
Oil seal
34
09283-28012
Oil seal
35
09390-52002
C-ring
36
27511-11301
Pignon avant (Z=15)
37
27531-19991
37
09180-20078
Spacer (20*28*21.6)
38
09140-16013
Nut
39
09167-20018
WASHER,LOCK
1 600 ₽/шт
40
09280-20001
O RING(D:1,ID:19.5)
179 ₽/шт
41
27600-11470
Chain, drive (520*106le)
