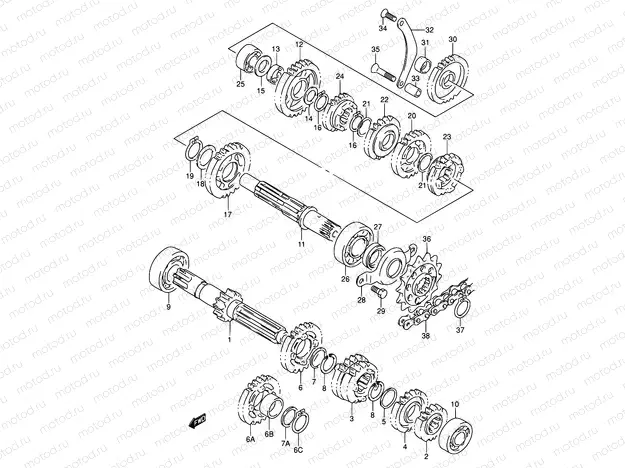

16 - TRANSMISSION

16 - TRANSMISSION

Например: 24120-14D03

1

24120-14D03

SHAFT,COUNTER(NT:12)

11 300 ₽/шт

2

24221-14D01

GEAR,2ND DRIVE

6 452 ₽/шт

3

24231-15D01

Gear, 3/4th drive (nt:18/21)

4

24251-15D00

Gear, 5th drive (nt:23)

5

09181-22111

SHIM(22X26X1)

1 990 ₽/шт

6

24260-15D00

Gear, 6th drive (nt:24)

7

09181-22139

SHIM,22X28X1.0

204 ₽/шт

8

09380-22006

КЛИПС

194 ₽/шт

9

09262-20145

ПОДШИПНИК КАЧЕНИЯ

1 503 ₽/шт

10

09262-17027

Подшипник

1 683 ₽/шт

11

24130-14D14

Торсионный вал

12 317 ₽/шт

12

24311-14D01

GEAR,1ST DRIVEN(NT:29)

6 569 ₽/шт

13

24312-14D00

BUSH,1ST DRIVEN GEAR

1 365 ₽/шт

14

08211-17322

WASHER

1 520 ₽/шт

15

09181-22167

SHIM,22X30X1

194 ₽/шт

16

09380-22006

КЛИПС

194 ₽/шт

17

24320-14D00

GEAR,2ND DRIVEN(NT:26)

6 295 ₽/шт

18

09181-25167

Шайба

194 ₽/шт

19

09380-25010

КЛИПС

210 ₽/шт

20

24331-15D01

Gear, 3rd driven (nt:23)

21

09181-22139

SHIM,22X28X1.0

204 ₽/шт

22

24341-15D00

Gear, 4th driven (nt:21)

23

24351-15D00

Gear, 5th driven (nt:19)

24

24361-15D00

Gear, 6th driven (nt:17)

25

09267-17003

BEARING(17X40X17.5)

5 982 ₽/шт

26

09262-22024

BEARING(22X56X16)

4 418 ₽/шт

27

09283-22025

SEAL,OIL(22X34X7)

1 258 ₽/шт

28

24751-14D00

RETAINER,DRIVE SHAFT OIL SEAL

504 ₽/шт

29

01500-0612B

Болт

1 210 ₽/шт

30

26261-14D10

GEAR,KICK STARTER IDLE(NT:27)

5 015 ₽/шт

31

26262-14D00

BUSH,KICK STARTER IDLE GEAR

799 ₽/шт

32

26264-14D00

RETAINER,KICK IDLE GEAR

719 ₽/шт

33

09180-06314

SPACER(6.5X12X21)

2 030 ₽/шт

34

02122-0616B

Болт

85 ₽/шт

35

02122-06357

Vis

36

27511-37F00

SPROCKET,ENGINE(NT:13)

3 011 ₽/шт

36

27511-47D00

SPROCKET(NT:14)

3 030 ₽/шт

36

27510-47D01

Sprocket,engine(Nt:14)

5 044 ₽/шт

37

09380-22012

CIRCLIP

1 840 ₽/шт

38

27600-06C20-114

Цепь (rk520sm114le)

14 705 ₽/шт
