Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GSX 250 SUZUKI GSX250F T SUZUKI 16 - RADIATOR

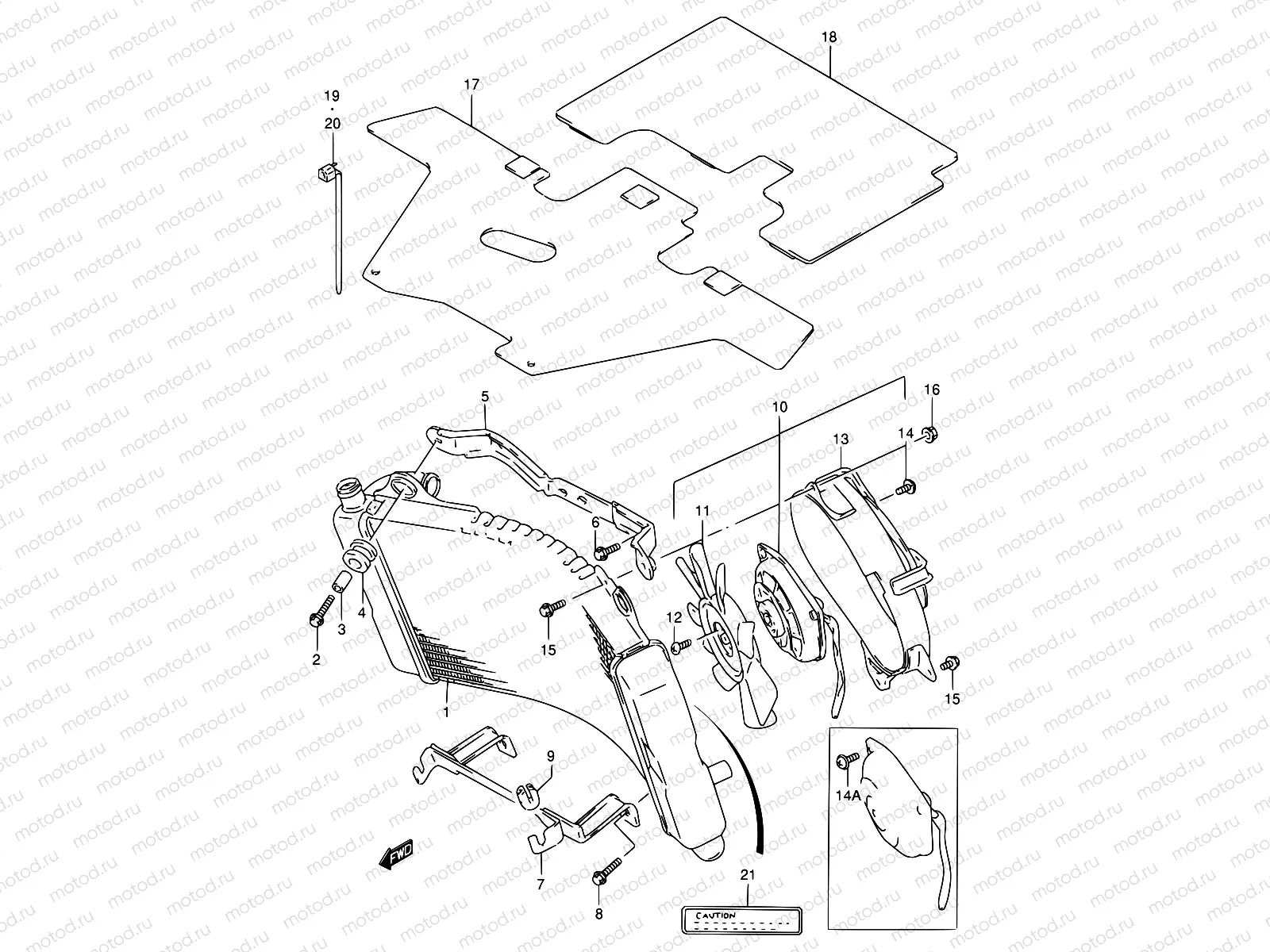

16 - RADIATOR

16 - RADIATOR

Например: 17710-24D00

1

17710-24D00

Radiator assy, water

2

09116-06131

BOLT(6X25)

1 210 ₽/шт

3

09180-07004

Кольцо/шайба

1 410 ₽/шт

4

17787-19A00

CUSHION,RADIATOR LWR

238 ₽/шт

5

17742-24D00

Bracket, radiator upper

6

01500-0612B

Болт

1 210 ₽/шт

7

17740-24D01

BRACKET,RADIATOR LWR

2 190 ₽/шт

8

01550-0625A

Болт

102 ₽/шт

9

16628-27A00

CUSHION,OIL COOLER NO.2

172 ₽/шт

10

17800-24D01

Fan assy, radiator

11

17820-06C00

.fan

12

02112-0406B

Болт

81 ₽/шт

13

17770-24D01

.shroud assy, fan

14

02112-3510B

Болт

81 ₽/шт

14

02142-0508A

SCREW

85 ₽/шт

15

01550-0610B

Болт

85 ₽/шт

16

08319-31067

Гайка

153 ₽/шт

17

17750-24D00

Guard, heat no.1

18

17781-24D00

GUARD,HEAT NO.2

2 952 ₽/шт

19

09407-14403

КЛЕММА

221 ₽/шт

20

09407-14403

КЛЕММА

221 ₽/шт

21

17992-24D00

Label, radiator cooling fan
