Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 600 F SUZUKI GSX600F L SUZUKI (VIN: JS1GN72A) 16 - CLUTCH (MODEL J/K/L/M)

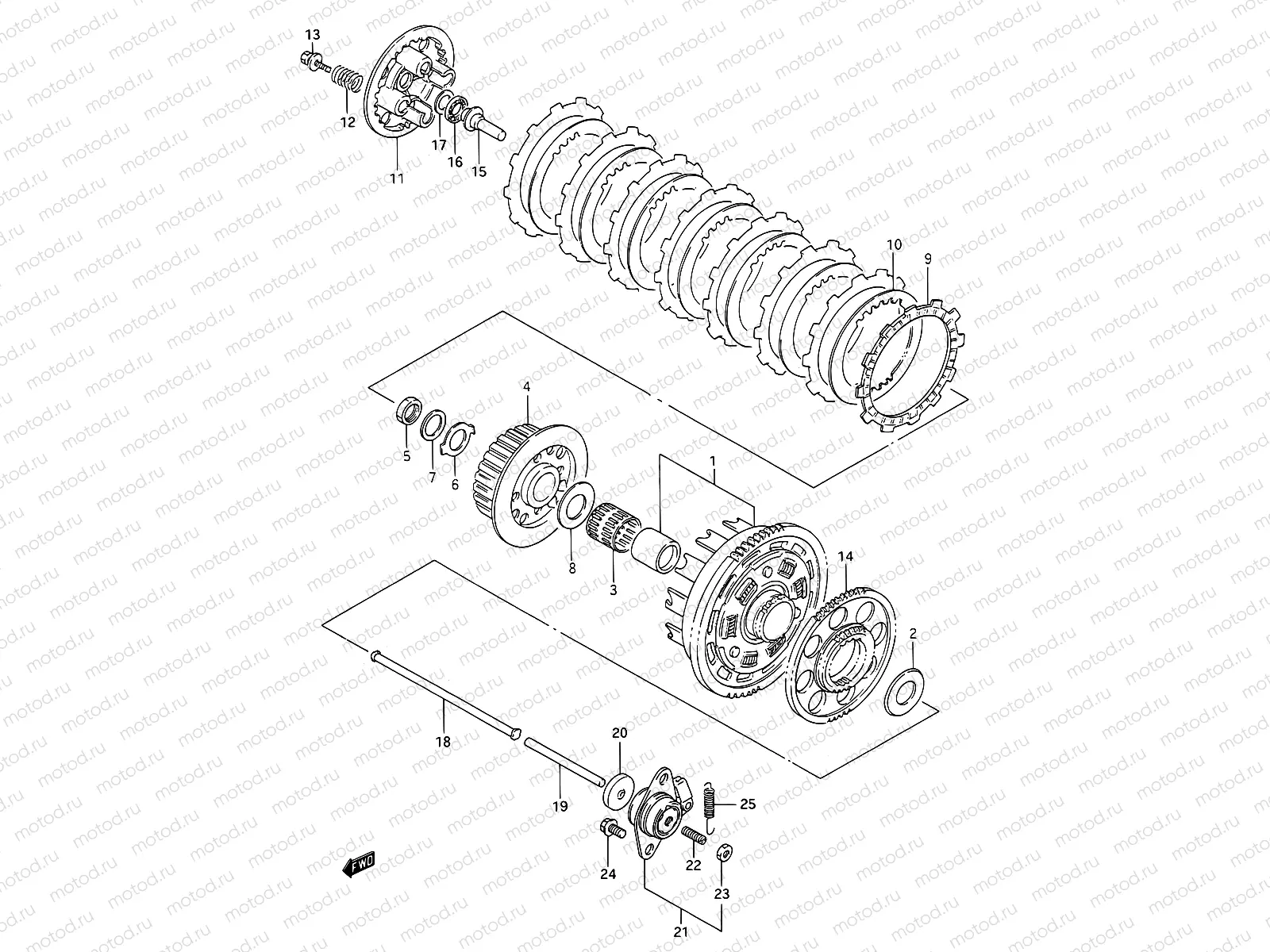

16 - CLUTCH (MODEL J/K/L/M)

16 - CLUTCH (MODEL J/K/L/M)
Например: 21200-19813
1
21200-19813
Gear, primary driven (nt:88)
2
09160-25071
Шайба
8 090 ₽/шт
3
09263-35017
BEARING(35X40X35.8)
10 030 ₽/шт
4
21410-27A02
HUB,CLUTCH SLEEVE
9 775 ₽/шт
5
09140-22008
Гайка
485 ₽/шт
6
09169-22005
Шайба блокирующая
1 600 ₽/шт
7
09164-22007
Шайба
3 680 ₽/шт
8
09160-25056
WASHER
727 ₽/шт
9
21441-37430
ДИСК СЦЕПЛЕНИЯ
4 165 ₽/шт
10
21451-05A00
Диск сцепления
2 423 ₽/шт
11
21462-27A00
DISC,CLUTCH PRESSURE
3 617 ₽/шт
12
09440-20016
Пружина
275 ₽/шт
13
09116-06168
БОЛТ
1 520 ₽/шт
14
22721-17D02
Gear,generator
15
23121-27A00
PIECE,CLUTCH PUSH
1 677 ₽/шт
16
09263-15003
Подшипник 15X28X2
532 ₽/шт
17
09160-15045
Шайба
211 ₽/шт
18
23110-20C00
Штанга муфты
1 677 ₽/шт
19
23111-31301
Штанга муфты
2 244 ₽/шт
20
09285-06015
САЛЬНИК УПЛОТНИТЕЛЬНЫЙ
840 ₽/шт
21
23200-31300
SCREW ASSY,CLUTCH RELEASE
10 578 ₽/шт
22
09134-06010
Болт
1 880 ₽/шт
23
08310-00067
Гайка
81 ₽/шт
24
01550-06167
БОЛТ
72 ₽/шт
25
09443-07038
Пружина
2 310 ₽/шт
