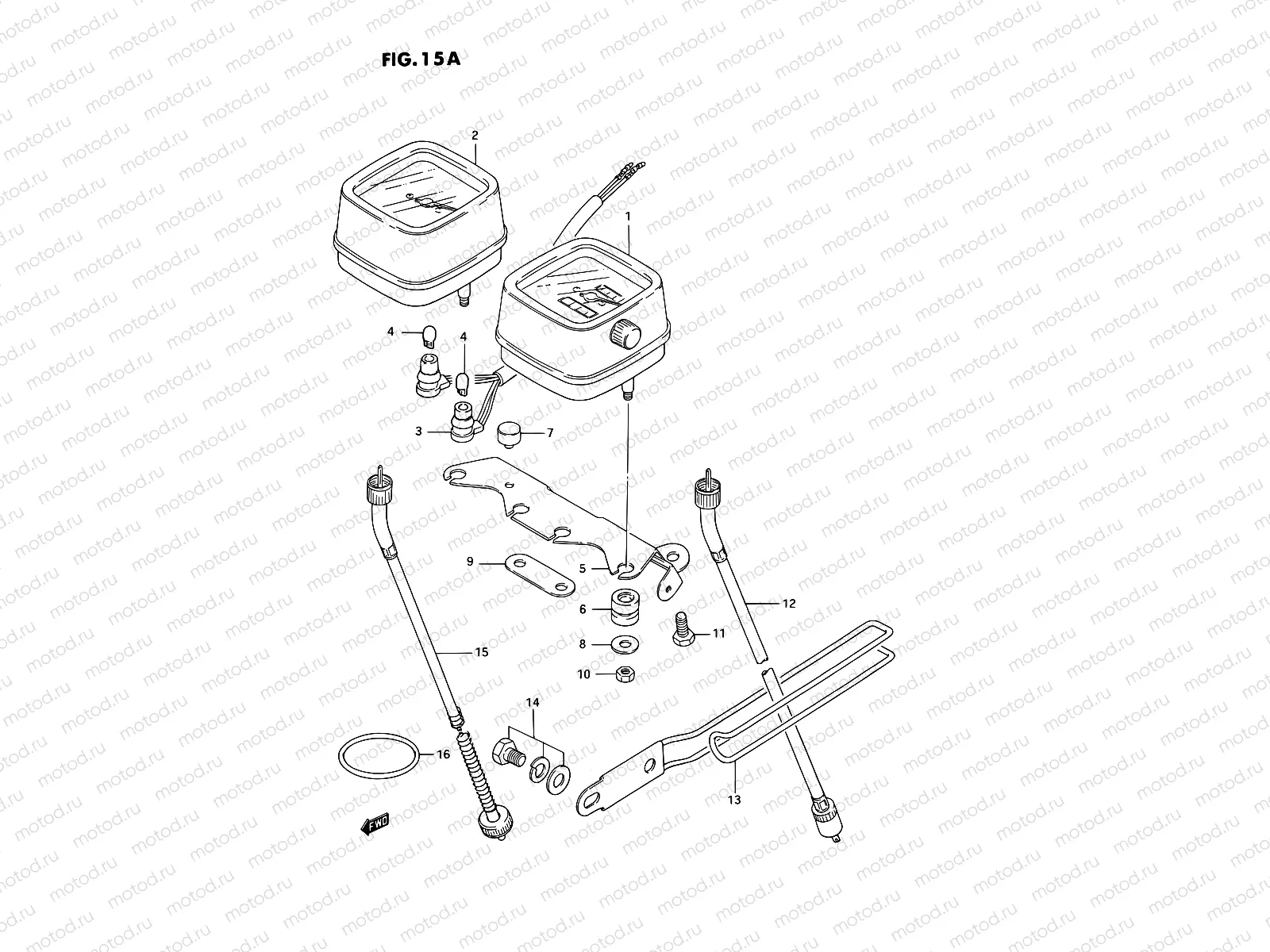

15A - SPEEDOMETER - TACHOMETER (MODEL N/P/R E24)

15A - SPEEDOMETER - TACHOMETER (MODEL N/P/R E24)
Например: 34110-48502
1
34110-48502
Meter, speed
2
34210-48502
ТАХОМЕТР
14 365 ₽/шт
3
34170-48580
SOCKET,SPEEDOMETER
2 991 ₽/шт
4
09471-12077
BULB(12V1.7W,T10,WB121)
1 990 ₽/шт
5
34950-48502
BRACKET
3 108 ₽/шт
6
34189-48500
CUSHION
301 ₽/шт
7
34956-28011
CUSHION,METER
250 ₽/шт
8
09160-05037
Шайба
97 ₽/шт
9
34182-48500
PLATE,CONNECTING
250 ₽/шт
10
08310-0005B
Гайка
1 370 ₽/шт
11
01560-0616A
Болт
1 330 ₽/шт
12
34910-34B01
Cable Assy,speedometer
4 280 ₽/шт
13
34930-05203
Направляющая кабеля
1 052 ₽/шт
14
01580-08123
Vis
15
34940-29903
Cable Assy,tachometer
3 304 ₽/шт
16
58642-41300
O RING,RR BRAKE CABLE
301 ₽/шт
