Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI GD 110 SUZUKI GD110HU L1 SUZUKI 15 - TRANSMISSION

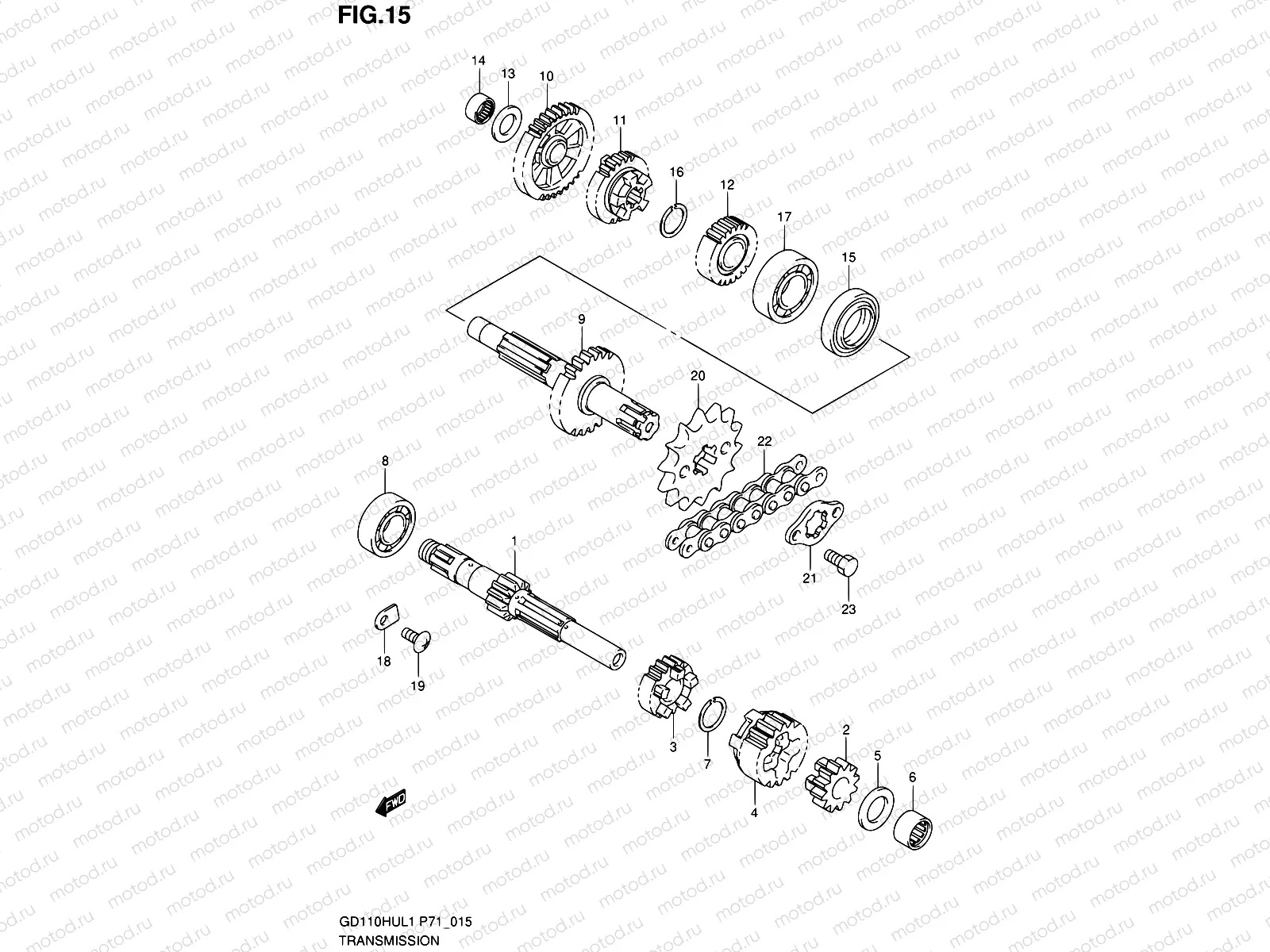

15 - TRANSMISSION

15 - TRANSMISSION
Например: 24120-36H10
1
24120-36H10
Shaft, counter
2
24221-36H00
Gear, 2nd drive
2
24221-45H50
Gear, 2nd drive
3
24231-36H00
Gear, 3rd drive
3
24231-45H50
Gear, 3rd drive
4
24241-36H00
Gear, 4th drive
4
24241-45H50
Gear, 4th drive
5
09160-13006
WASHER(13X24X1)
1 210 ₽/шт
6
09263-13003
BEARING(13X19X14)
1 040 ₽/шт
7
09380-17007
CIRCLIP
1 060 ₽/шт
8
08110-62030
ПОДШИПНИК ВЫЖИМНОЙ
867 ₽/шт
9
24130-36H10
Shaft, drive
9
24130-36H20
Shaft, drive
10
24311-36H00
Gear, 1st driven
10
24311-45H50
Gear, 1st driven
11
24331-36H00
Gear, 3rd driven
11
24331-45H50
Gear, 3rd driven
12
24341-36H00
Gear, 4th driven
12
24341-45H50
Gear, 4th driven
13
09160-13006
WASHER(13X24X1)
1 210 ₽/шт
14
09263-13003
BEARING(13X19X14)
1 040 ₽/шт
15
09283-17025
Уплотнение вала
391 ₽/шт
16
09380-17007
CIRCLIP
1 060 ₽/шт
17
08110-62030
ПОДШИПНИК ВЫЖИМНОЙ
867 ₽/шт
18
24741-21A00
RETAINER
170 ₽/шт
19
02142-0612B
Винт
81 ₽/шт
20
27511-36H00
SPROCKET,ENGINE(14T)
21
27512-09G00
PLATE,ENGINE SPROCKET
203 ₽/шт
22
27600-29B40-104
CHAIN,DRIVE(104L)
23
01500-0610B
Болт
85 ₽/шт
