Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RG 125 Gamma SUZUKI RG125F N Gamma SUZUKI 15 - TRANSMISSION

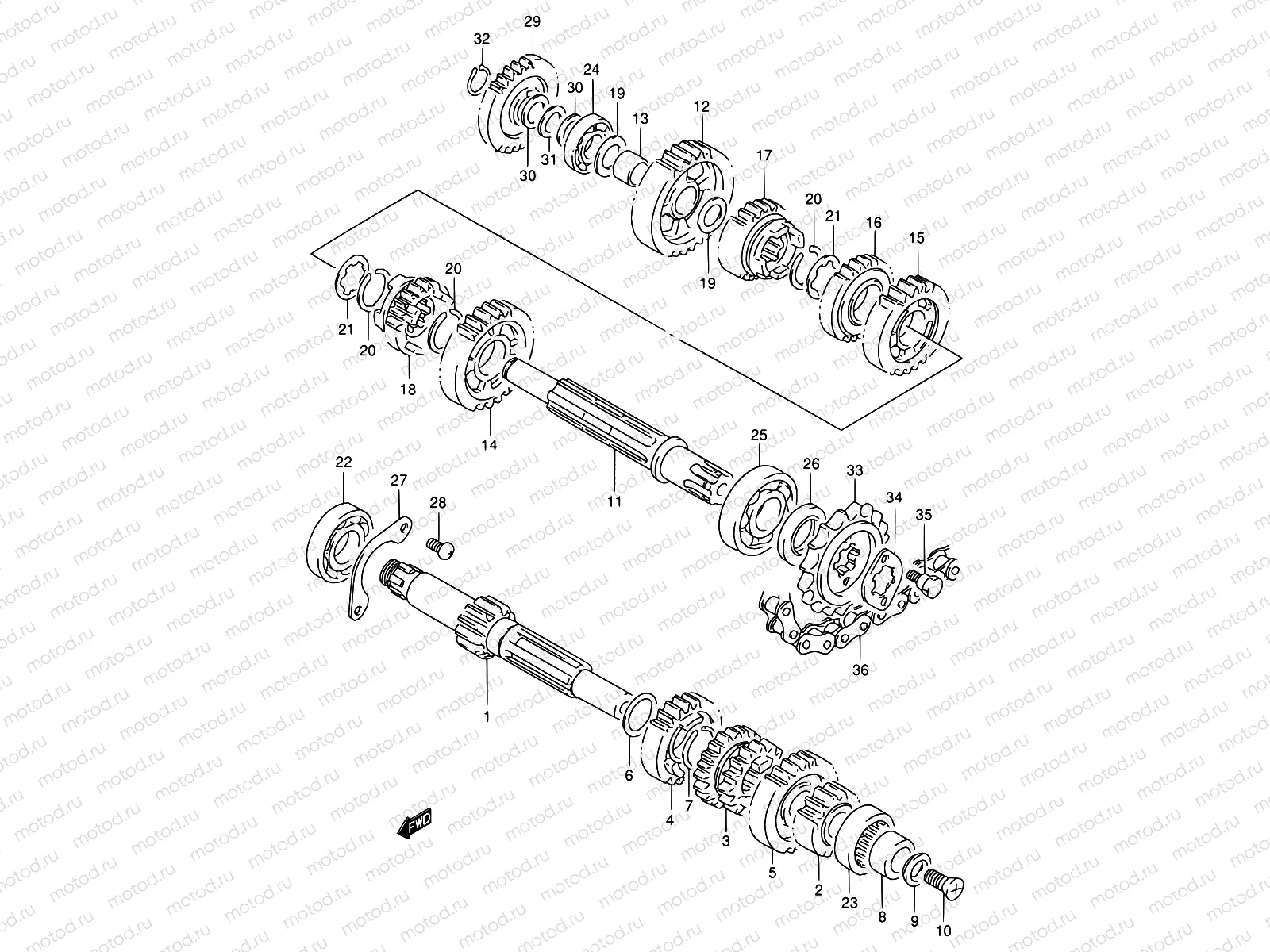

15 - TRANSMISSION

15 - TRANSMISSION

Например: 24121-03D02

1

24121-03D02

SHAFT,CNTR(NT11)

2

24221-03D02

AANDRIJFTANDWIEL 2 V

3

24231-08D01

Gear,3rd,4th dr

4

24251-03D00

Gear,5th drive,

5

24260-19D00

GEAR,6TH DRIVE

6

09181-20139

SHIM(20X26X1)

194 ₽/шт

7

09380-20007

КЛИПС

194 ₽/шт

8

24127-19D00

RACE,CNTR SHAFT L BRG INNER

9

24126-19D00

RETAINER,CNTR SHAFT L BEARING

614 ₽/шт

10

02122-0612B

Болт

82 ₽/шт

11

24131-03D00

Shaft,drive

12

24311-03D02

Gear, 1st driven (nt:29)

13

09300-15015

Silentblock

14

24321-19D00

RODA 2 V.

15

24331-19D00

Gear, 3rd driven (nt:20)

16

24341-03D00

Gear,4th driven

17

24351-03D00

Gear, 5th driven (nt:22)

18

24361-08D01

Gear, 6th driven (nt:20)

19

09181-15166

SHIM(15X24X1)

179 ₽/шт

20

09380-22006

КЛИПС

194 ₽/шт

21

09167-22011

Пластина замка

1 880 ₽/шт

22

09262-20111

Bearing,20x47x1

23

09263-20081

Bearing (20x32x12)

24

09262-15025

BEARING(15X35X8)

1 521 ₽/шт

25

09262-20110

BEARING(20X52X12.5)

2 796 ₽/шт

26

09283-20057

ПРОКЛАДКИ ПОВ.КУЛАКА

612 ₽/шт

27

24741-12B00

RETAINER,CNTR SHAFT BEARING

317 ₽/шт

28

02112-3612A

Болт

1 250 ₽/шт

29

26260-36A01

Gear, idle (nt:29)

30

09181-15106

SHIM.15X20X0.8

31

09164-15009

ANILHA 15.6X21.2X0.3

32

08331-3115A

CIRCLIP

97 ₽/шт

33

27510-19D00

SPROCKET,ENGINE(NT:16)

5 122 ₽/шт

33

27510-03D02

Sprocket,engine(Nt:15)

4 888 ₽/шт

34

27512-36200

PLATE

417 ₽/шт

35

09111-06039

БОЛТ

81 ₽/шт

36

27600-36A20-130

Chain assy (rk428hox130le)
