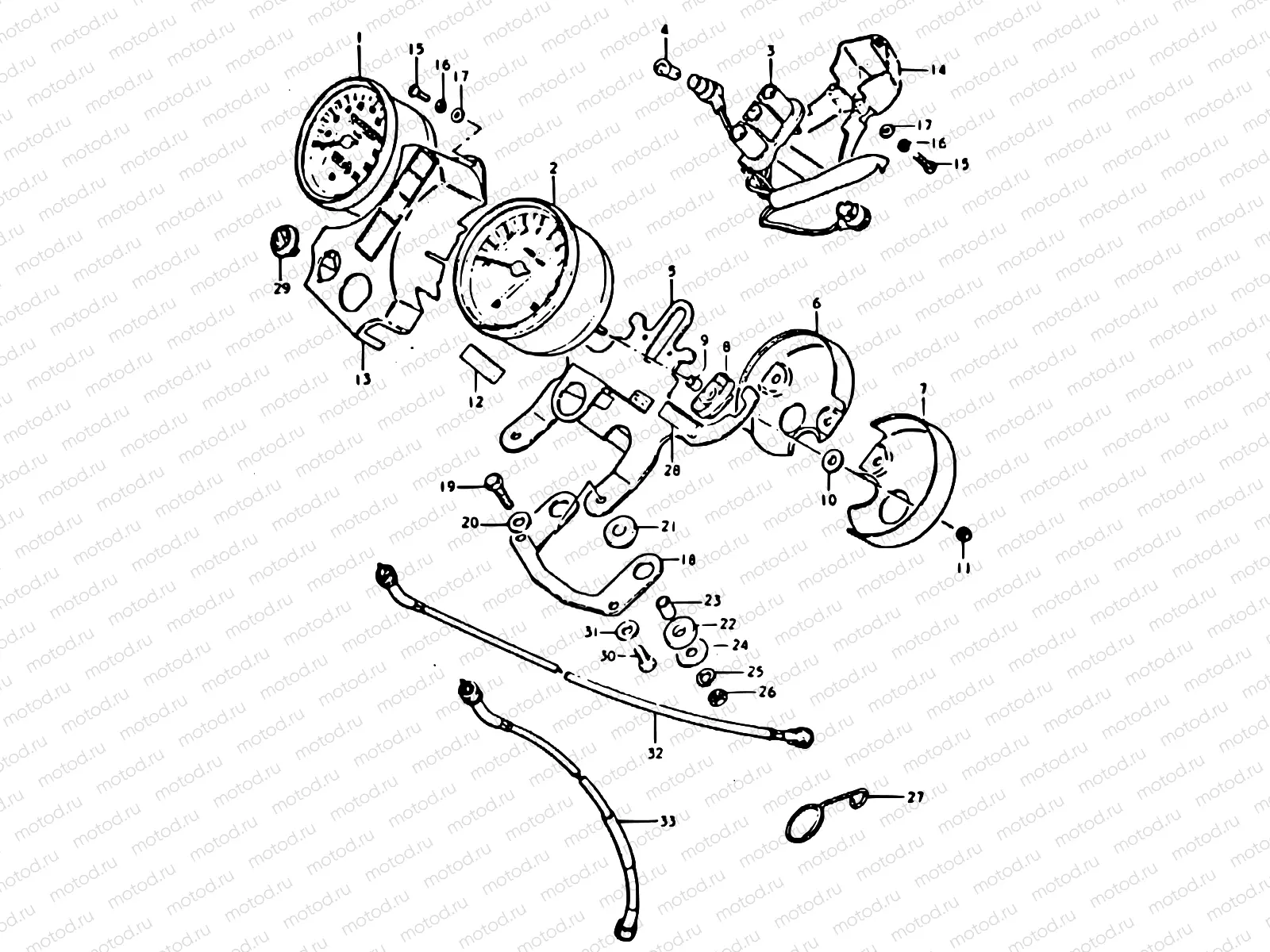

15 - SPEEDOMETER - TACHOMETER (MODEL N)

15 - SPEEDOMETER - TACHOMETER (MODEL N)

Например: 34110-11332

1

34110-11332

.speedometer

2

34210-11301

.tachometer

3

34173-11300

.socket

4

09471-12001-LCP

Bulb 6v/1,7w

5

34951-11300

.bracket

6

34961-36322

UNDER COVER,SPEEDOMETER

1 054 ₽/шт

7

34962-36322

Plate,tachometr

8

34189-32400

CUSHION

305 ₽/шт

9

34972-44022

.spacer (7*5.1*10)

10

09160-05043

Шайба

102 ₽/шт

11

08313-1005A

Гайка

1 090 ₽/шт

12

34189-44020

.pad

12

34100-11333

Speedo/tachometer assy

13

36380-11300

.box, pilot bulb

14

34981-44020

.case, under

15

09125-04011

Vis

16

34997-44020

.lock washer

17

08322-0104B

Шайба

81 ₽/шт

18

34952-11300

.bracket

19

01500-06307

Болт

85 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

34955-11300

CUSHION

301 ₽/шт

22

34956-11300

CUSHION

301 ₽/шт

23

34978-11300

.spacer

24

09160-06134

Шайба

102 ₽/шт

25

08321-01067

Шайба, стопорная

81 ₽/шт

26

08310-00067

Гайка

81 ₽/шт

27

34949-30002

CLIP

238 ₽/шт

28

34289-11300

.pad, tachometer (10*30*6)

29

34995-31600

Cap,speed warni

30

01107-06168

Vis

31

08322-0106A

Шайба

81 ₽/шт

32

34910-10213

Câble de compteur de vitesse

33

34940-11304

Cable assy,tach
