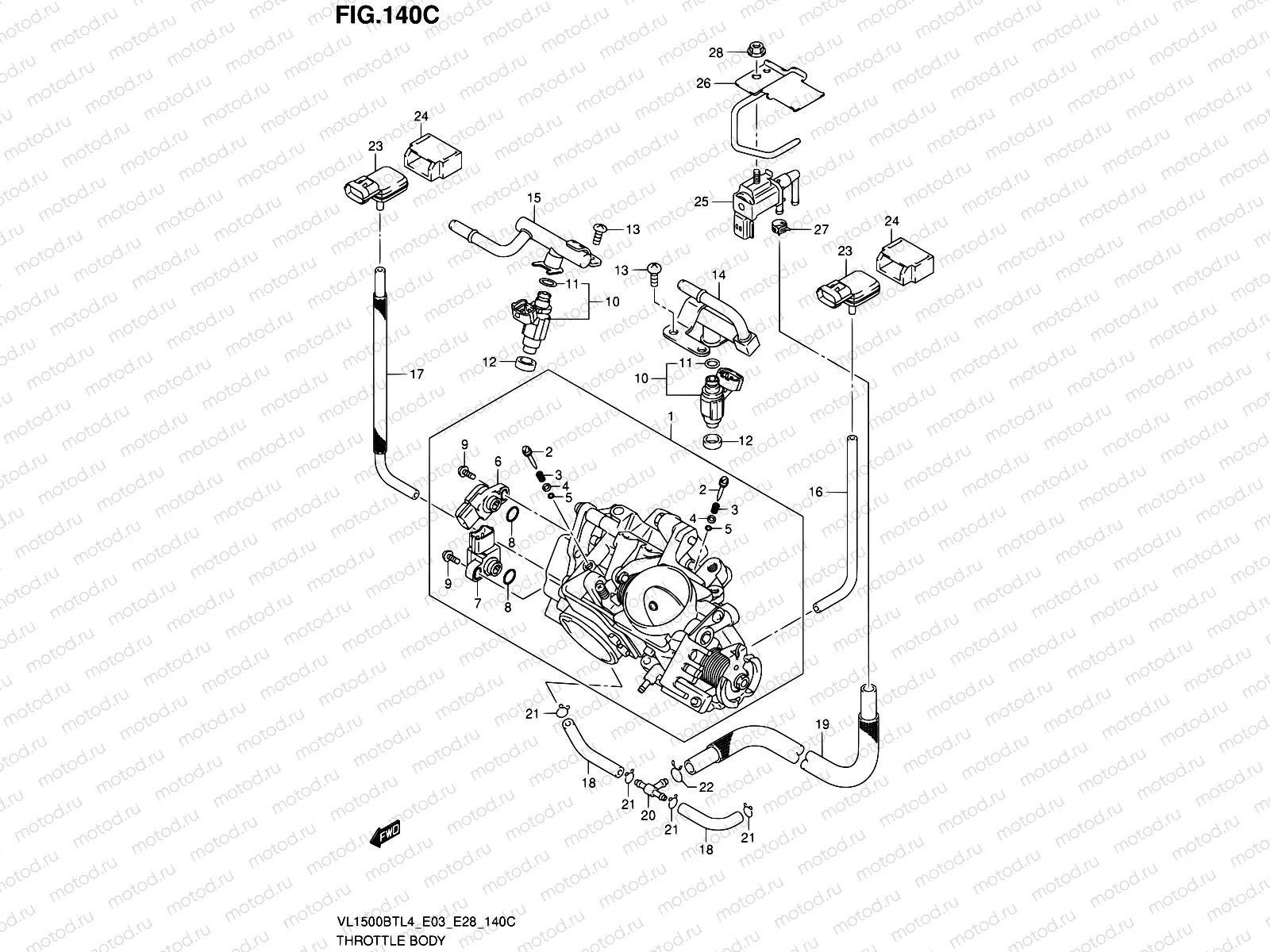

140C - THROTTLE BODY (VL1500BTL4 E33)

140C - THROTTLE BODY (VL1500BTL4 E33)
Например: 13405-40HB0
1
13405-40HB0
ODY ASSY,THROTTLE
115 192 ₽/шт
2
13269-33E00
Болт
653 ₽/шт
3
13268-48700
Пружина
210 ₽/шт
4
13606-47A00
Шайба
162 ₽/шт
5
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
6
13580-48G10
Датчик
10 540 ₽/шт
7
13580-48G00
Датчик
10 285 ₽/шт
8
13575-29G00
O-Ring
9
13605-02F00
Болт
170 ₽/шт
10
15710-48G00
INJECTOR ASSY
13 808 ₽/шт
11
15717-58B00
Кольцо уплотнительное
581 ₽/шт
12
15722-29G00
САЛЬНИК
459 ₽/шт
13
13602-06148
Болт
180 ₽/шт
14
15730-40H00
PIPE ASSY,DELIVERY
10 518 ₽/шт
15
15730-40H10
PIPE ASSY,DELIVERY
11 065 ₽/шт
16
13683-48G01
Hose
17
13683-40H10
OSE
2 366 ₽/шт
18
13683-48G21
HOSE
3 206 ₽/шт
19
13683-40H20
OSE
5 709 ₽/шт
20
13685-04F10
Золотник
551 ₽/шт
21
09401-06101
CLIP
114 ₽/шт
22
09401-10401
CLIP
900 ₽/шт
23
18591-41F00
Датчик прессуры
24 829 ₽/шт
24
18595-33G00
HOLDER
1 458 ₽/шт
25
18117-52G10
КЛАПАН ЭЛЕКТРОМАГНИТНЫЙ
8 094 ₽/шт
26
18119-06J00
BRACKET,PURGE VALVE
1 412 ₽/шт
27
09401-10411
CLIP
1 370 ₽/шт
28
08316-1006A
Гайка
85 ₽/шт
