Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650 L5 Burgman 650 (E03,E28,E33) SUZUKI 140B - THROTTLE BODY (AN650L5 E33)

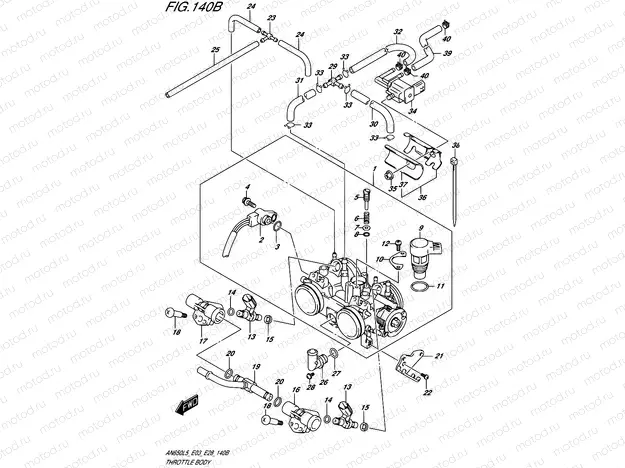

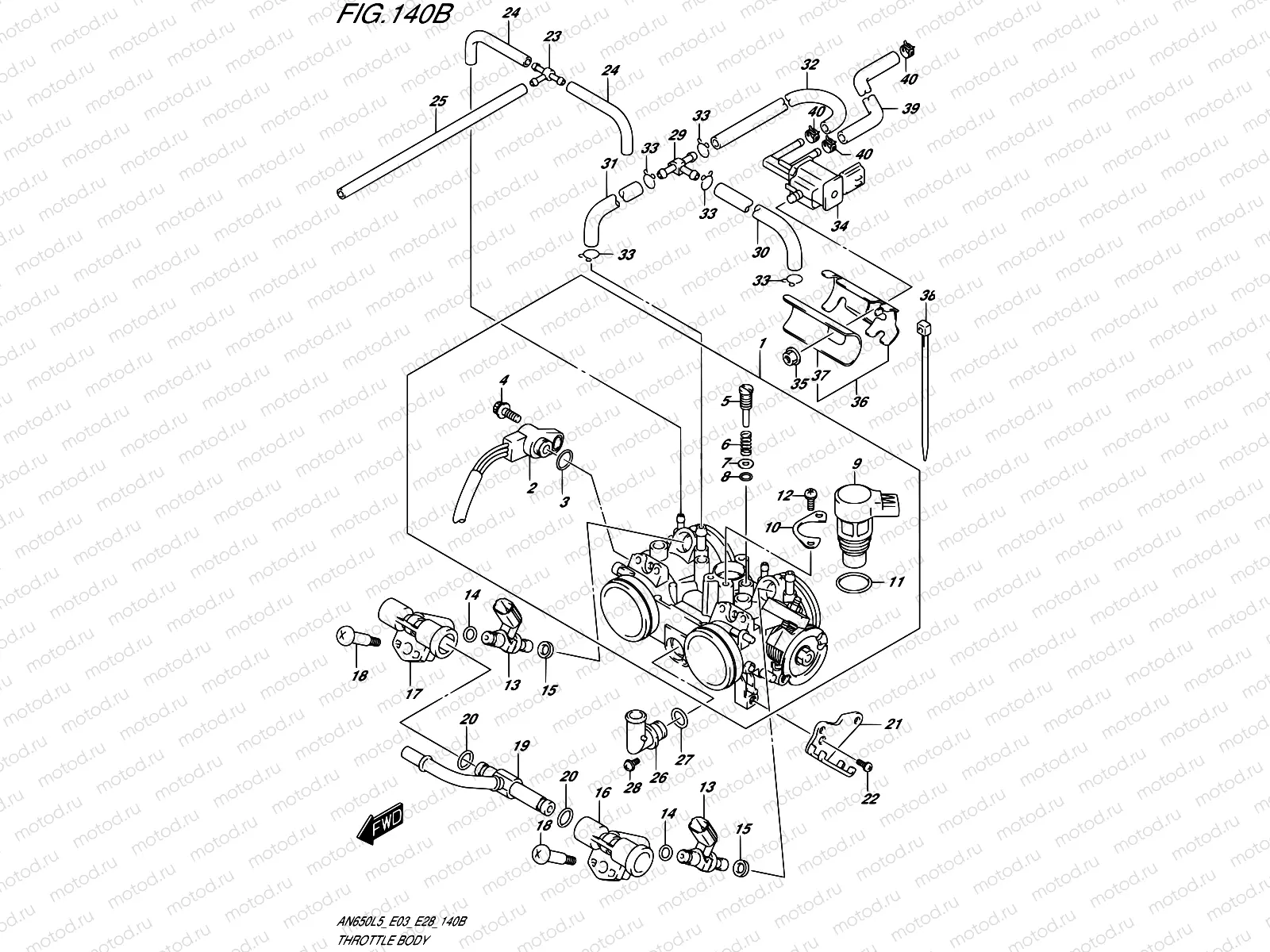

140B - THROTTLE BODY (AN650L5 E33)

140B - THROTTLE BODY (AN650L5 E33)

Например: 13406-26J10

1

13406-26J10

BODY ASSY,THROTTLE

70 686 ₽/шт

2

13580-40F21

SENSOR ASSY,THROTTLE NO.1

30 427 ₽/шт

3

13575-40F00

O RING

162 ₽/шт

4

13605-40F00

Болт

227 ₽/шт

5

13269-18G00

SCREW,AIR ADJUST

594 ₽/шт

6

13271-C43E0-0J000

Spring

7

13291-26E00

Шайба

170 ₽/шт

8

13295-26E00

O RING

187 ₽/шт

9

18117-15H12

VALVE ASSY,ISC

23 418 ₽/шт

10

13428-15H00

PLATE,ISC VALVE

1 650 ₽/шт

11

18119-05H00

O RING

203 ₽/шт

12

13605-15H00

Болт

356 ₽/шт

13

15710-26J00

INJECTOR ASSY

18 924 ₽/шт

14

15721-26J00

O RING

575 ₽/шт

15

15722-21H00

RING,SEAL

510 ₽/шт

16

13471-26J00

OINT

1 951 ₽/шт

17

13471-26J10

OINT

1 951 ₽/шт

18

13601-35F00

Болт

501 ₽/шт

19

13473-10G00

Труба топливная

5 904 ₽/шт

20

15721-24F00

O-RING

468 ₽/шт

21

13565-10G20

PLATE

2 581 ₽/шт

22

13601-10G00

Болт

203 ₽/шт

23

13471-24F30

Направляющая трубки

903 ₽/шт

24

13683-10G01

Hose

25

13683-10G10

HOSE(3X7X220)

653 ₽/шт

26

13455-10G00

JOINT

1 716 ₽/шт

27

13278-10G10

O RING

227 ₽/шт

28

13602-10G00

Болт

203 ₽/шт

29

13685-36E50

JOINT

825 ₽/шт

30

13698-10G01

HOSE

2 131 ₽/шт

31

13698-10G11

HOSE

1 505 ₽/шт

32

13698-10G31

HOSE

1 744 ₽/шт

33

13693-24F00

CLIP

160 ₽/шт

34

18117-52G00

Клапан

9 520 ₽/шт

35

08316-1006A

Гайка

85 ₽/шт

36

18119-10G00

BRACKET,PURGE VALVE

1 482 ₽/шт

37

18118-10G00

CUSHION,PURGE VALVE BRACKET

383 ₽/шт

38

09407-14407

ЗАЖИМ

221 ₽/шт

39

13680-10G10

HOSE,CANISTER PURGE

1 537 ₽/шт

40

09401-10409

ХОМУТ МАЛЫЙ

119 ₽/шт
