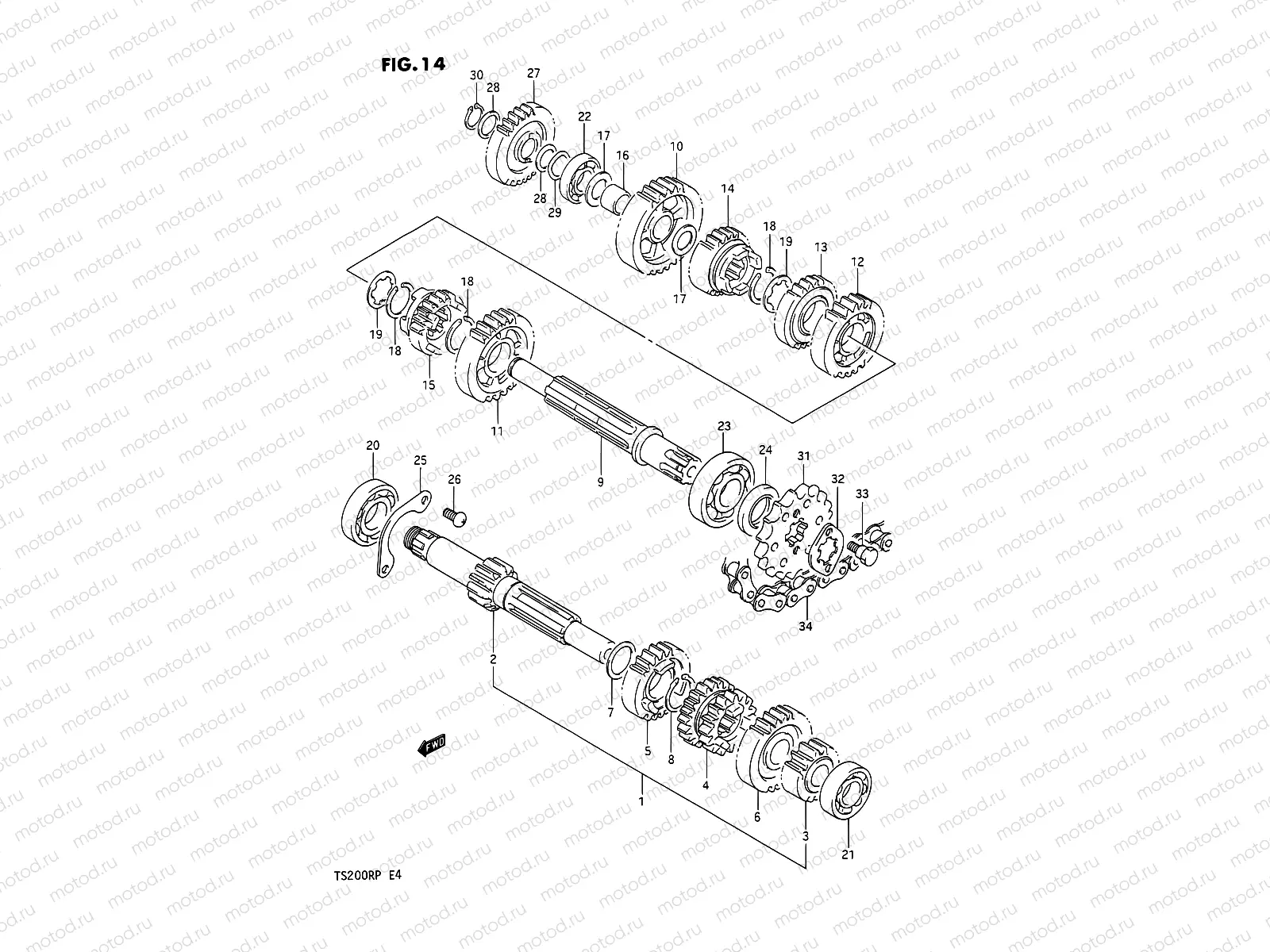

14 - TRANSMISSION

14 - TRANSMISSION

Например: 24120-08D04

1

24120-08D04

Counter shaft

2

24121-03D02

SHAFT,CNTR(NT11)

3

24221-03D02

AANDRIJFTANDWIEL 2 V

4

24231-08D01

Gear,3rd,4th dr

5

24251-03D00

Gear,5th drive,

6

24260-03D10

GEAR,6TH DRIVE

7

09181-20139

SHIM(20X26X1)

194 ₽/шт

8

09380-20007

КЛИПС

194 ₽/шт

9

24131-03D00

Shaft,drive

10

24311-03D02

Gear, 1st driven (nt:29)

11

24321-19D00

RODA 2 V.

12

24331-03D01

Gear,3rd driven

13

24341-03D00

Gear,4th driven

14

24351-03D00

Gear, 5th driven (nt:22)

15

24361-08D01

Gear, 6th driven (nt:20)

16

09300-15015

Silentblock

17

09181-15166

SHIM(15X24X1)

179 ₽/шт

18

09380-22006

КЛИПС

194 ₽/шт

19

09167-22011

Пластина замка

1 880 ₽/шт

20

09262-20111

Bearing,20x47x1

21

08113-60020

ПОДШИПНИК ВЫЖИМНОЙ

1 208 ₽/шт

22

09262-15025

BEARING(15X35X8)

1 521 ₽/шт

23

09262-20110

BEARING(20X52X12.5)

2 796 ₽/шт

24

09283-20057

ПРОКЛАДКИ ПОВ.КУЛАКА

612 ₽/шт

25

24741-12B00

RETAINER,CNTR SHAFT BEARING

317 ₽/шт

26

02112-06127

Болт

81 ₽/шт

26

02122-06127

Болт

85 ₽/шт

27

26260-36A01

Gear, kick starter idle (nt:29)

28

09181-15106

SHIM.15X20X0.8

29

09164-15009

ANILHA 15.6X21.2X0.3

30

08331-3115A

CIRCLIP

97 ₽/шт

31

27510-08D12

Sprocket,engine(Nt:15)

5 630 ₽/шт

32

27512-36200

PLATE

417 ₽/шт

33

09111-06039

БОЛТ

81 ₽/шт

34

27600-14A10-106
