Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 L1 (E03,E28,E33) SUZUKI (VIN: JS1CY111) 14 - THROTTLE BODY (GSX-R1000L1 E33)

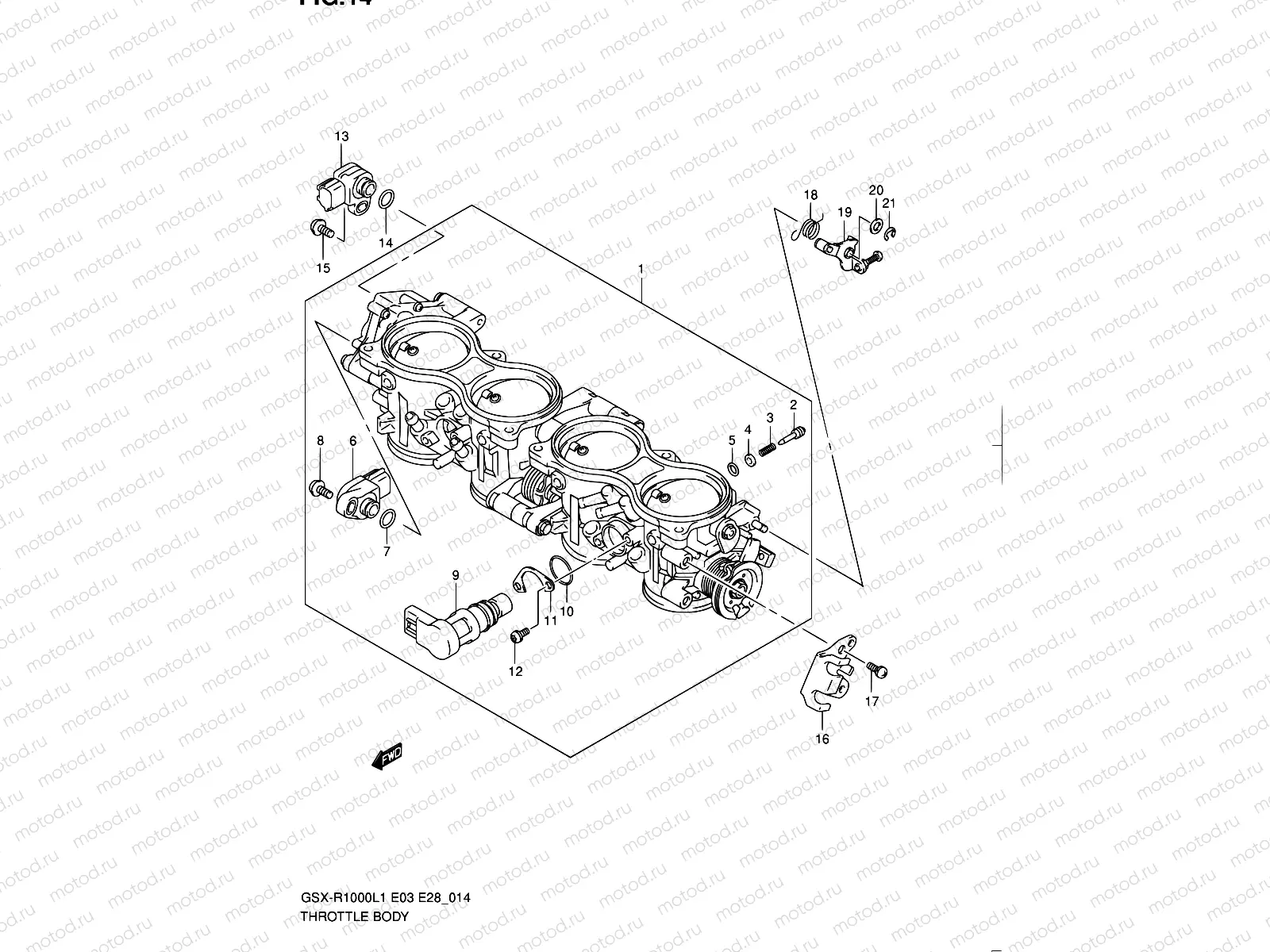

14 - THROTTLE BODY (GSX-R1000L1 E33)

14 - THROTTLE BODY (GSX-R1000L1 E33)

Например: 13406-47H10

1

13406-47H10

Throttle body

2

13269-18G00

SCREW,AIR ADJUST

594 ₽/шт

3

13271-C43E0-0J000

Spring

4

13291-26E00

Шайба

170 ₽/шт

5

13295-26E00

O RING

187 ₽/шт

6

13580-18G00

Сенсор

13 838 ₽/шт

7

13575-40F00

O RING

162 ₽/шт

8

13605-40F00

Болт

227 ₽/шт

9

18117-15H12

VALVE ASSY,ISC

23 418 ₽/шт

10

18119-05H00

O RING

203 ₽/шт

11

13428-15H00

PLATE,ISC VALVE

1 650 ₽/шт

12

13605-15H00

Болт

356 ₽/шт

13

13580-47H00

SENSOR ASSY,THROTTLE SUB

18 299 ₽/шт

14

13575-40F00

O RING

162 ₽/шт

15

13605-40F00

Болт

227 ₽/шт

16

13565-21H00

PLATE,STAY

4 395 ₽/шт

17

13601-21H00

Болт

187 ₽/шт

18

13426-21H00

Пружина

399 ₽/шт

19

13420-47H00

LEVER ASSY,LINK

8 367 ₽/шт

20

13427-35F10

Шайба

278 ₽/шт

21

13424-35F10

E CLIP

250 ₽/шт
