Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650UE L1 V-Strom (E19) SUZUKI 14 - MUFFLER

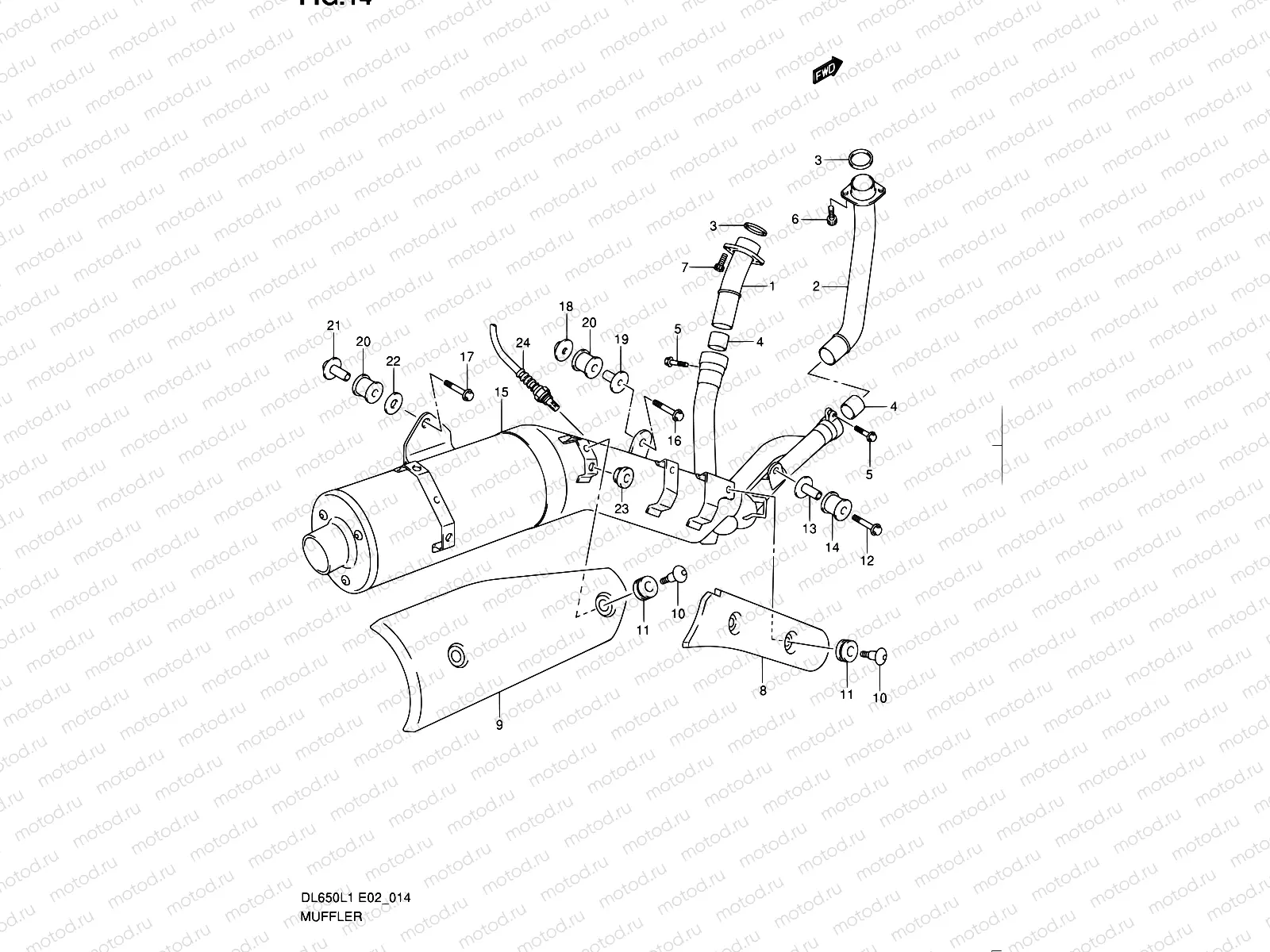

14 - MUFFLER

14 - MUFFLER

Например: 14150-27G00

1

14150-27G00

PIPE,EXHAUST RR

8 876 ₽/шт

2

14160-17G00

PIPE,EXHAUST FR

31 008 ₽/шт

3

14181-22D01

Прокладка трубы

646 ₽/шт

4

14771-32E00

Коннектор

1 938 ₽/шт

5

09103-08365

БОЛТ

2 310 ₽/шт

6

09106-08165

БОЛТ

242 ₽/шт

7

07130-0825A

БОЛТ

1 840 ₽/шт

8

14771-27G10

COVER,MUFFLER FR

4 590 ₽/шт

9

14781-27G10-YKV

COVER,MUFFLER

13 294 ₽/шт

9

14781-27G10-YYF

COVER,MUFFLER

13 294 ₽/шт

10

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

11

09320-08070

САЙЛЕНТБЛОК

5 900 ₽/шт

12

09118-08152-A05

BOLT(8X45)

3 170 ₽/шт

13

09180-08152

SPACER(8.6X12X24.2)

291 ₽/шт

14

09320-12048

САЙЛЕНТБЛОК

469 ₽/шт

15

14305-27G60-H01

MUFFLER

206 508 ₽/шт

16

01550-0845B

Болт

113 ₽/шт

17

09103-08358

БОЛТ

605 ₽/шт

18

14414-27G00

NUT,MUFFLER SUPPORT FR

387 ₽/шт

19

09180-08156

Кольцо/шайба

272 ₽/шт

20

09320-12049

САЙЛЕНТБЛОК

694 ₽/шт

21

14414-06G00

NUT,MUFFLER SUPPORT

680 ₽/шт

22

09160-08146

Шайба

162 ₽/шт

23

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

24

18213-17G01

SENSOR,OXYGEN

47 770 ₽/шт
