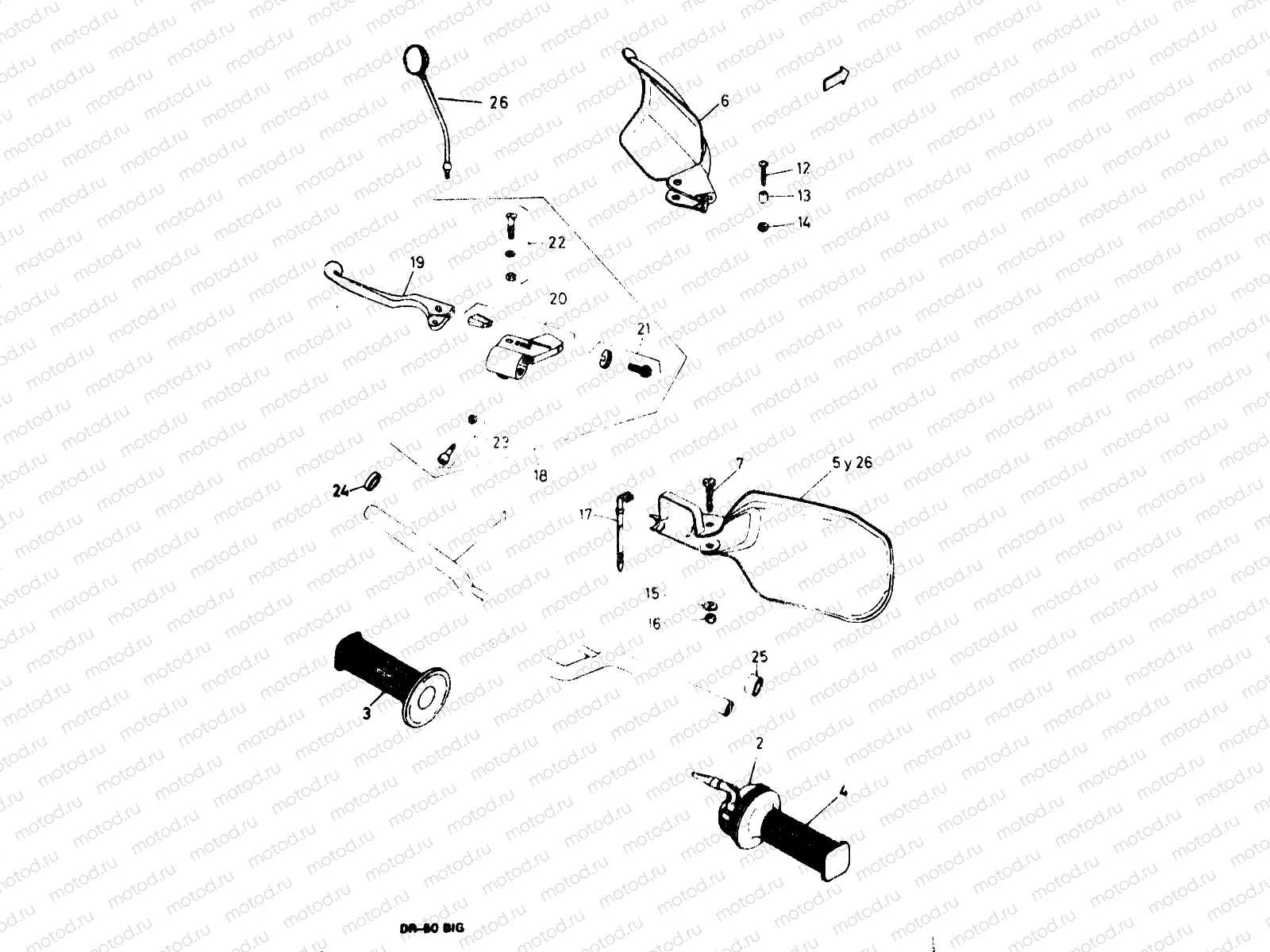

14 - HANDLEBAR AND BRAKE LEVER

14 - HANDLEBAR AND BRAKE LEVER
Например: 56110-00E00-EE3
1
56110-00E00-EE3
Handlebar (BLACK)
2
57011-00E00
3
57211-00E00
PUNHO ESQ
4
57112-00E00
Grip, rh
5
57341-00E00-25Y
Guard, knuckle rh (yellow)
5
57341-00E00-34S
Guard, knuckle rh (blue)
5
57341-00E00-BE1
Guard, knuckle rh (white)
6
57541-00E00-25Y
Guard, knuckle rl (yellow)
6
57541-00E00-34S
Guard, knuckle rl (blue)
6
57541-00E00-BE1
Guard, knuckle rl (white)
7
D2184-06455
12
57814-00E00
Screw am 5x20 din 7985
13
57815-00E00
Spacer
14
D8310-0005B
Nut
15
D8322-11065
Rondelle
16
D8319-6006B
Nut
17
09407-25402
CLAMP(L:250)
238 ₽/шт
18
57610-04E00
Lever assy rl
19
57610-04E10
20
57612-04E00
Grip support rl
21
57620-00E00
Sleeve nut
22
57640-04E00
CONJ.FIXADOR MANETE
23
57660-04E00
Screw jet
24
09180-23E01-E0N
Spacer
25
09180-23E03-E0N
Spacer
26
56500-00E00
SPELHO RETROVISOR
