Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R K3 Hayabusa SUZUKI (VIN: JS1A1111, JS1A1131) 13A - PUMP ASSY (MODEL K1/K2/K3)

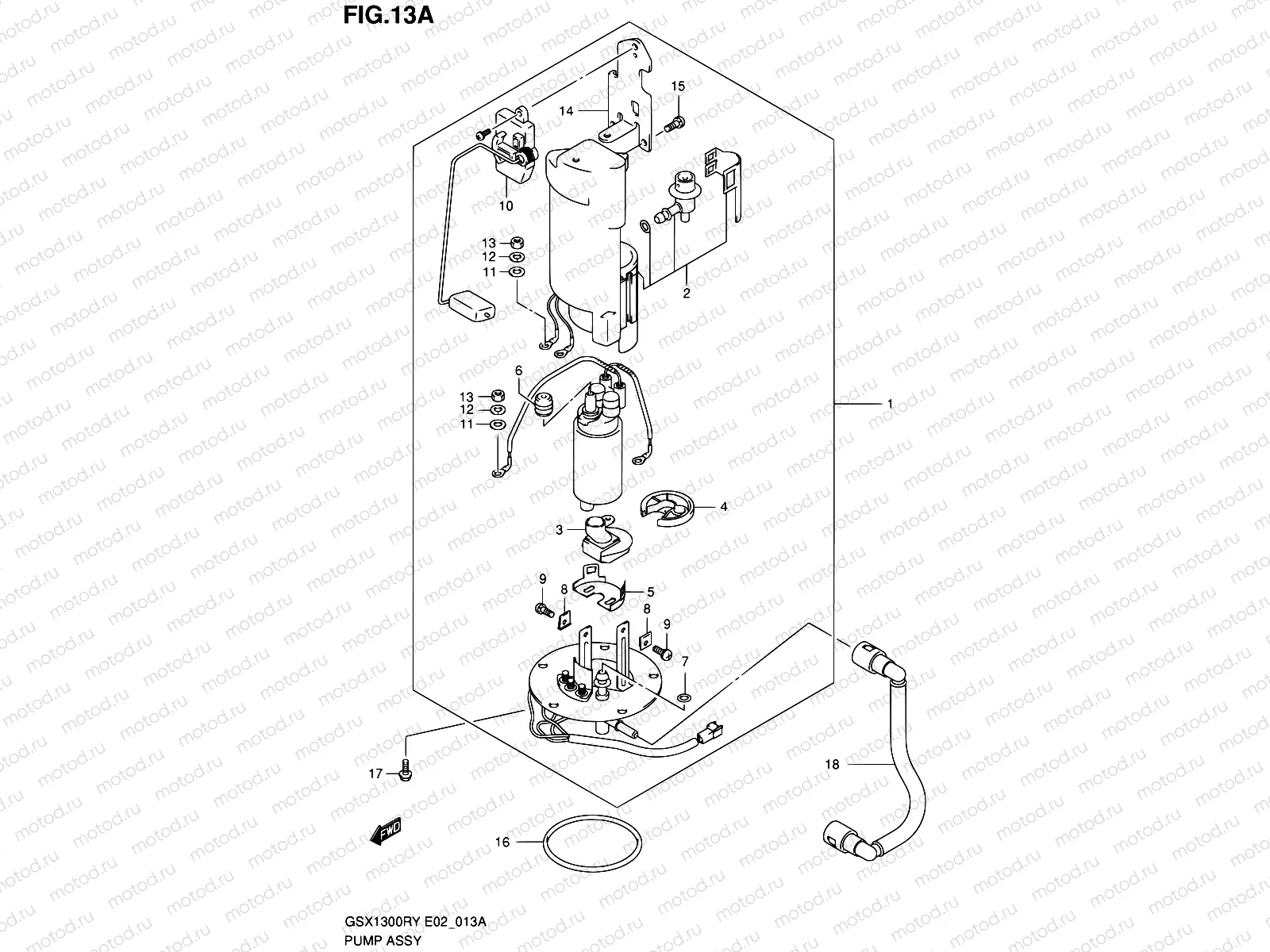

13A - PUMP ASSY (MODEL K1/K2/K3)

13A - PUMP ASSY (MODEL K1/K2/K3)

Например: 15100-24FB0

1

15100-24FB0

Насос топливный

155 720 ₽/шт

2

15410-24FB0

Фильтр топливный

56 440 ₽/шт

3

15420-24FB0

STRAINER,FUEL PUMP

6 999 ₽/шт

4

15111-35F00

CUSHION

747 ₽/шт

5

15112-42F00

HOLDER,FUEL PUMP

1 548 ₽/шт

6

15114-35F00

Втулка топливного насоса

1 275 ₽/шт

7

15113-35F00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

1 054 ₽/шт

8

15115-35F00

Гайка

817 ₽/шт

9

15116-35F10

Болт

508 ₽/шт

10

34810-24FA0

GAUGE ASSY,FUEL LEVEL

14 975 ₽/шт

11

15171-35F00

Шайба

481 ₽/шт

12

15172-35F00

Пружина

360 ₽/шт

13

15173-35F00

Гайка

383 ₽/шт

14

15181-24FB0

RACKET,FUEL GAUGE

3 089 ₽/шт

16

15201-35F00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

2 665 ₽/шт

17

07120-0612B

БОЛТ

184 ₽/шт

18

15810-24FA0

Шланг топливный

7 990 ₽/шт
