Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VZ 800 Boulevard M50 / Intruder M800 SUZUKI VZ800U K5 Intruder M800 / Boulevard M50 (E02) SUZUKI 13 - MUFFLER (MODEL K5/K6/K7/K8)

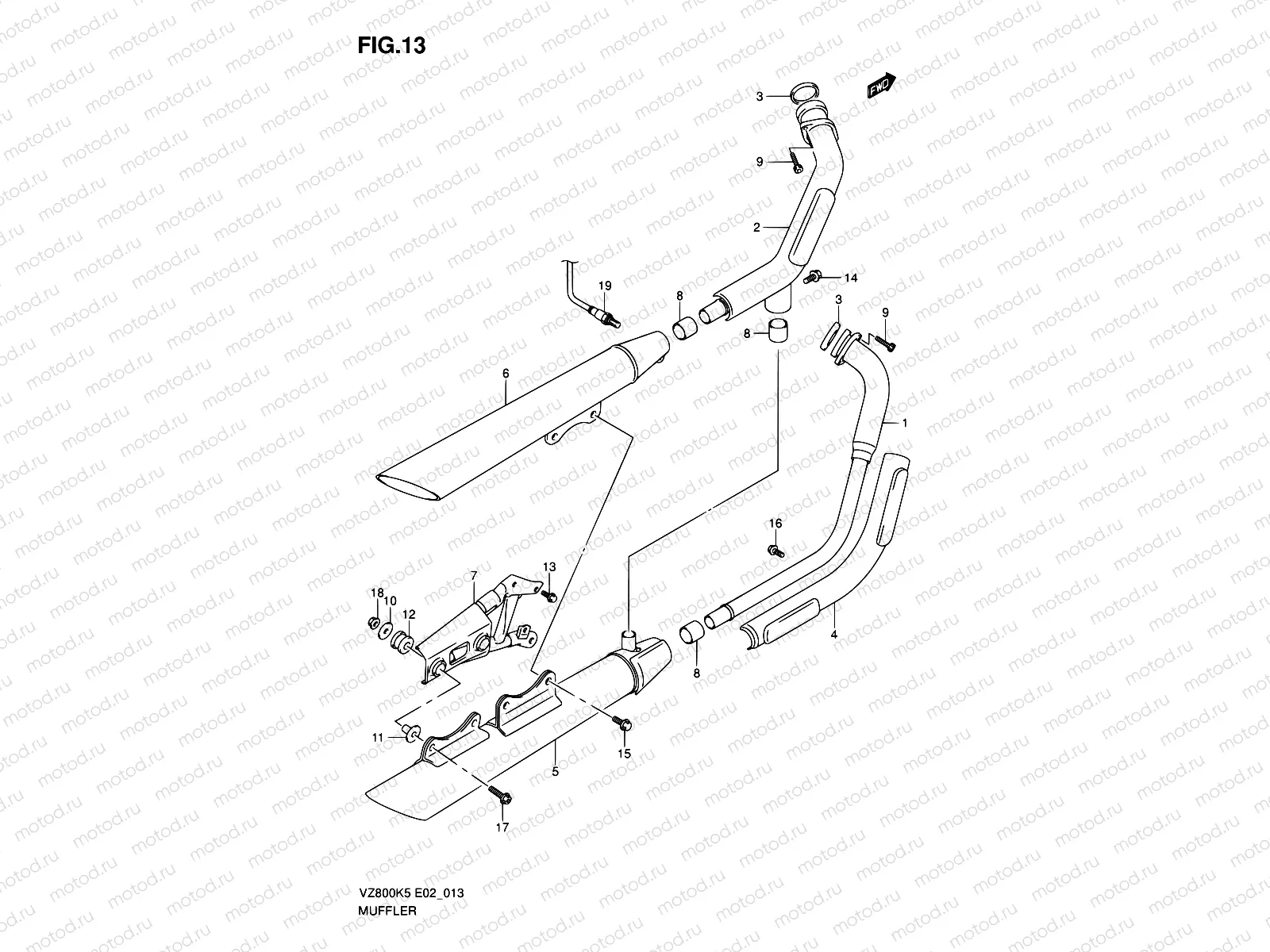

13 - MUFFLER (MODEL K5/K6/K7/K8)

13 - MUFFLER (MODEL K5/K6/K7/K8)

Например: 14150-41F02

1

14150-41F02

PIPE,EXHAUST FR

25 806 ₽/шт

2

14160-41F02

PIPE,EXHAUST RR

79 288 ₽/шт

3

14181-10F00

Прокладка

759 ₽/шт

4

14180-41F02

COVER COMP,EXHAUST FRONT

33 822 ₽/шт

5

14310-41F50

BODY,MUFFLER FR

128 291 ₽/шт

6

14340-41F50

BODY,MUFFLER RR

125 732 ₽/шт

7

14410-41F01

BRACKET,MUFFLER SUPPORT

8 758 ₽/шт

8

14771-29E00

CONNECTOR,MUFFLER

2 975 ₽/шт

9

09106-08165

БОЛТ

242 ₽/шт

10

09160-08146

Шайба

162 ₽/шт

11

09180-08156

Кольцо/шайба

272 ₽/шт

12

09320-12049

САЙЛЕНТБЛОК

694 ₽/шт

13

01550-0816B

Болт крепёжный

97 ₽/шт

14

01550-0835B

Болт

119 ₽/шт

15

01550-0845B

Болт

113 ₽/шт

16

07120-0616B

Болт

97 ₽/шт

17

09106-08174

Болт

179 ₽/шт

18

08361-2508A

Гайка

337 ₽/шт

19

18213-16H10

SENSOR,OXYGEN

25 806 ₽/шт
