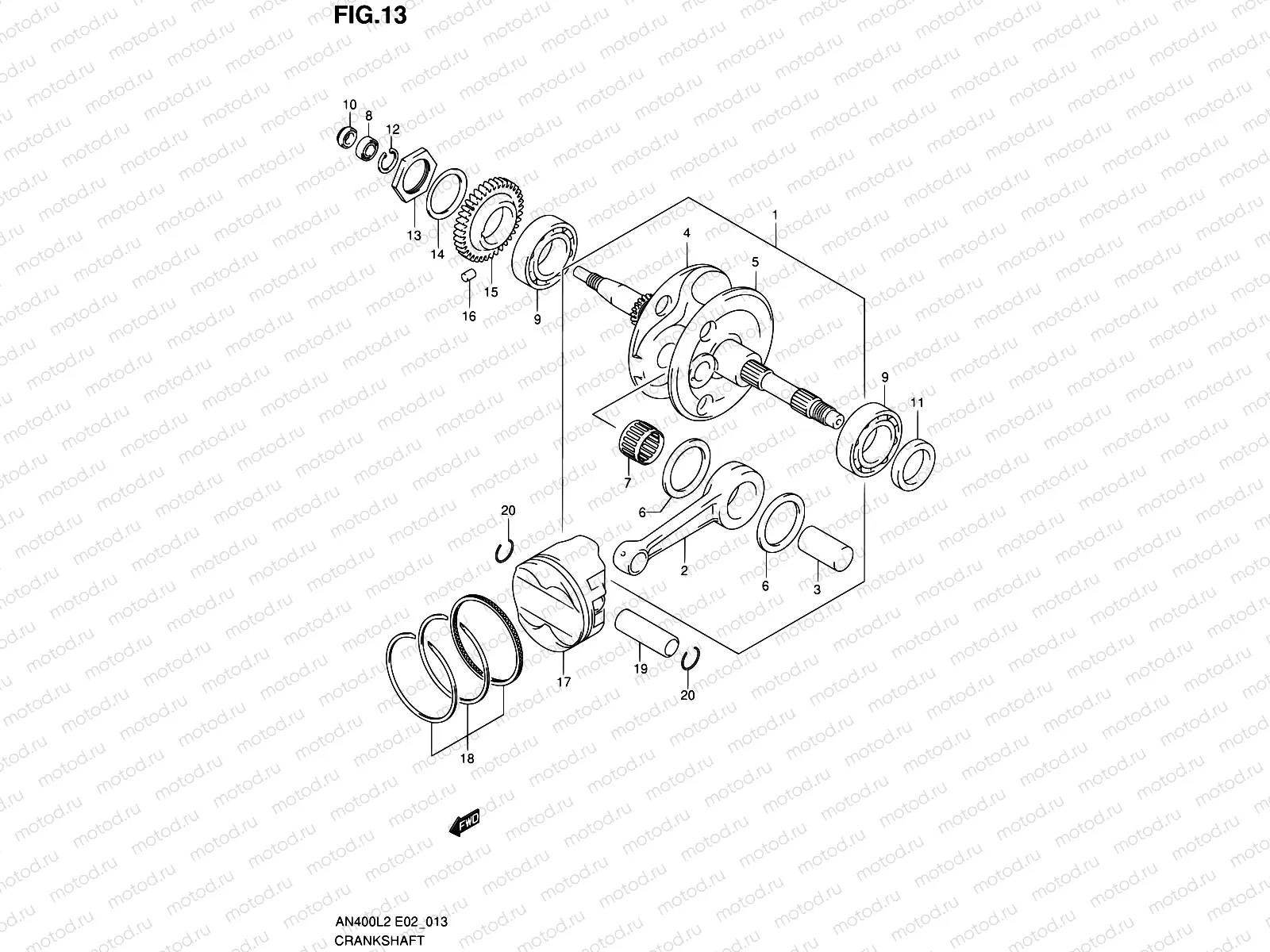

13 - CRANKSHAFT

13 - CRANKSHAFT

Например: 12200-05H10

1

12200-05H10

Вал коленчатый

51 612 ₽/шт

2

12161-05H10

Шатун

9 971 ₽/шт

3

12210-15F10

Палец шатунный

5 161 ₽/шт

4

12220-05H00

CRANKSHAFT,R

18 573 ₽/шт

5

12260-05H00

CRANKSHAFT,L

24 064 ₽/шт

6

09160-35005

WASHER(35X55X1)

517 ₽/шт

7

09263-35034

BEARING(35X45X22)

5 168 ₽/шт

8

09262-12016

BEARING(12X32X10)

1 017 ₽/шт

9

09262-35038

Подшипник B1 35X72X17

2 342 ₽/шт

10

09282-12011

SEAL,OIL(12X29X6)

840 ₽/шт

11

09283-34011

Сальник

1 421 ₽/шт

12

08331-41329

CIRCLIP

162 ₽/шт

13

12664-24B01

Гайка

694 ₽/шт

14

09164-35002

Шайба

630 ₽/шт

15

12661-05H00

GEAR,CRANK BALANCER DRIVE

7 742 ₽/шт

16

09261-05005

ПАЛЕЦ РАСПРЕДВАЛА

81 ₽/шт

17

12111-05H10-0F0

PISTON

9 860 ₽/шт

18

12140-05H10

Поршневые кольца

8 245 ₽/шт

19

12151-05A00

Палец поршня

1 195 ₽/шт

20

09381-20004

КОЛЬЦО СТОПОРНОЕ

162 ₽/шт
