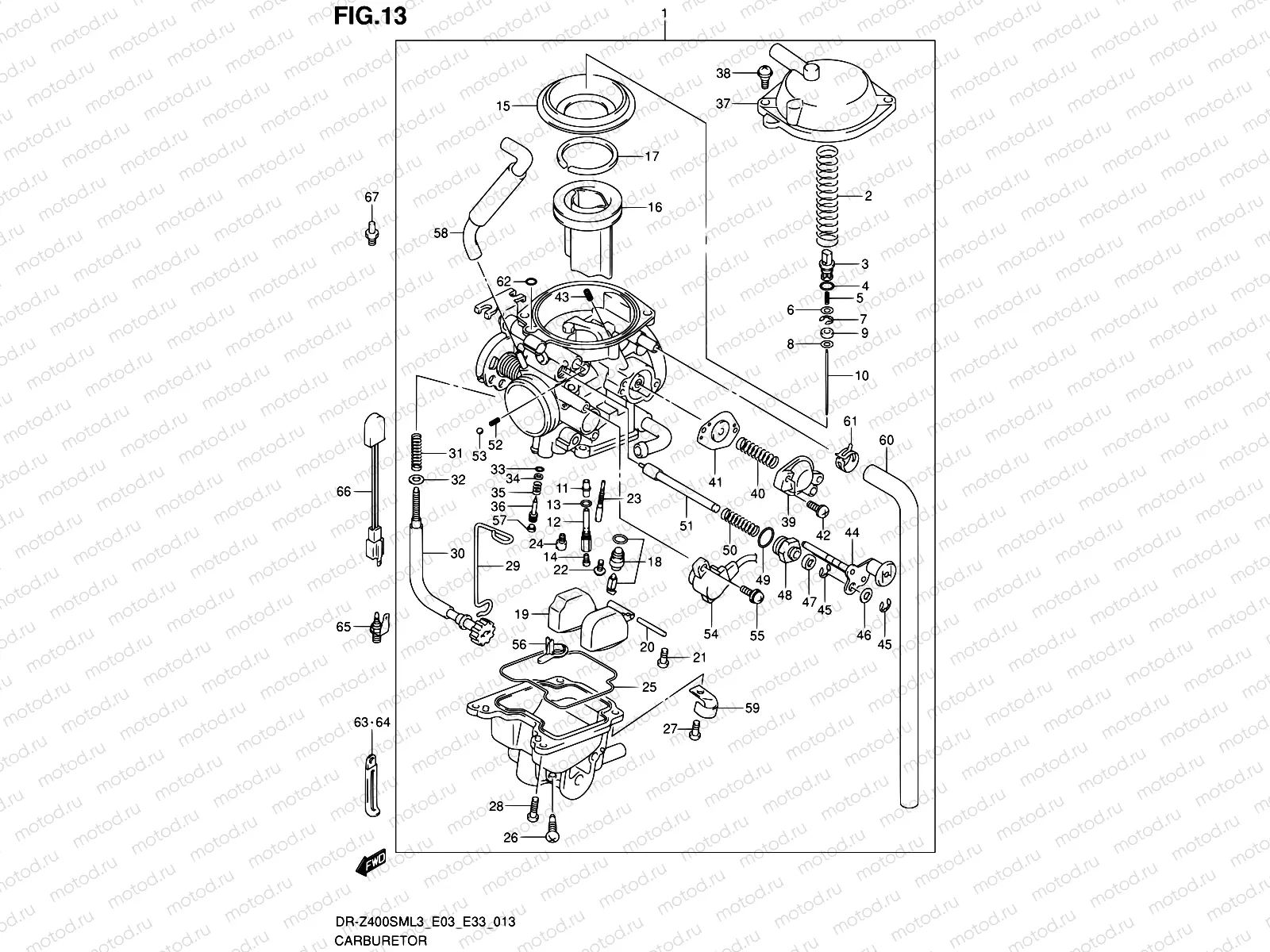

13 - CARBURETOR (DR-Z400SML3 E33)

13 - CARBURETOR (DR-Z400SML3 E33)
Например: 13200-29FC3
1
13200-29FC3
Карбюратор
54 230 ₽/шт
2
13573-07F00
Пружина
708 ₽/шт
3
13418-33E00
HOLDER
337 ₽/шт
4
09280-05004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
204 ₽/шт
5
13481-04F00
Пружина
227 ₽/шт
6
13382-19E00
Шайба
170 ₽/шт
7
13394-17E60
RING,MULTIPLE JET NOZZLE
162 ₽/шт
8
13387-13F00
RING
425 ₽/шт
9
13291-29FA0
Шайба
187 ₽/шт
10
13383-29FB0
Жиклер
2 343 ₽/шт
11
09494-00939
JET
2 666 ₽/шт
12
13385-29FA0
HOLDER,JET
1 598 ₽/шт
13
13246-43011
O Ring
194 ₽/шт
14
09491-28012
Жиклер главный (142.5)
857 ₽/шт
15
13507-17C02
Diaphragm
3 460 ₽/шт
16
13501-29FA0
Клапан поршня
4 653 ₽/шт
17
13504-14E00
RING
321 ₽/шт
18
13370-29FA0
.valve assy, needle
19
13250-04F00
Поплавок
4 039 ₽/шт
20
13254-01010
PIN,FLOAT
162 ₽/шт
21
02112-0408B
Болт
940 ₽/шт
22
13602-05A10
Болт
238 ₽/шт
23
09492-22014
JET,PILOT(22.5)
695 ₽/шт
24
09491-62006
JET,MAIN(62.5)
534 ₽/шт
25
13258-04F00
Прокладка
533 ₽/шт
26
13247-02340
Заглушка дренажная
258 ₽/шт
27
02112-04107
Болт
82 ₽/шт
28
02112-0412A
Болт
85 ₽/шт
29
13671-29FA0
CLIP
962 ₽/шт
30
13267-29FA0
SCREW,ADJUST
3 230 ₽/шт
31
13268-37420
Пружина
289 ₽/шт
32
13615-43010
Шайба
170 ₽/шт
33
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
34
13291-29900
Шайба
162 ₽/шт
35
13268-48700
Пружина
210 ₽/шт
36
13279-33E00
Винт топливный
636 ₽/шт
37
13502-29FA0
COVER ASSY,DIAPHRAGM
2 581 ₽/шт
38
13247-33E00
Болт
170 ₽/шт
39
13502-08F00
COVER,DIAPHRAGM
2 581 ₽/шт
40
13481-41F20
Пружина
602 ₽/шт
41
13480-10F01
Diaphragm Assy
1 275 ₽/шт
42
13601-04148
Болт
172 ₽/шт
43
09492-27010
JET,POWER(135)
989 ₽/шт
44
13420-29FA0
PLATE ASSY
3 656 ₽/шт
45
13415-38300
E RING
106 ₽/шт
46
13427-38300
WASHER
170 ₽/шт
47
13682-31210
CAP,STARTER VALVE
459 ₽/шт
48
13418-44080
Держатель
867 ₽/шт
49
13278-47091
O Ring
210 ₽/шт
50
13417-43010
Пружина
289 ₽/шт
51
13411-29FA0
PLUNGER ASSY
1 556 ₽/шт
52
13434-43010
Пружина
340 ₽/шт
53
13596-93010
Шарик
239 ₽/шт
54
13580-21F01
Sensor Assy
7 735 ₽/шт
55
13602-19B50
Болт
215 ₽/шт
56
13387-29FA1
RING
747 ₽/шт
57
13281-05A00
PLUG
170 ₽/шт
58
13683-29FB0
HOSE
1 662 ₽/шт
59
13671-14D01
Plate
289 ₽/шт
60
13684-29FB1
Hose,air vent(6
61
13671-19F00
CLIP
266 ₽/шт
62
13295-33010
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
194 ₽/шт
63
09404-06039
Clamp(L:65)
194 ₽/шт
64
09404-08420
Струбцина L:137
221 ₽/шт
65
13650-25E01
HEATER ASSY,CARBURETOR(15W)
2 550 ₽/шт
66
13655-16F00
THERMO SWITCH,CARB HEATER
3 343 ₽/шт
67
13296-29F00
Винт стопорный
1 408 ₽/шт
