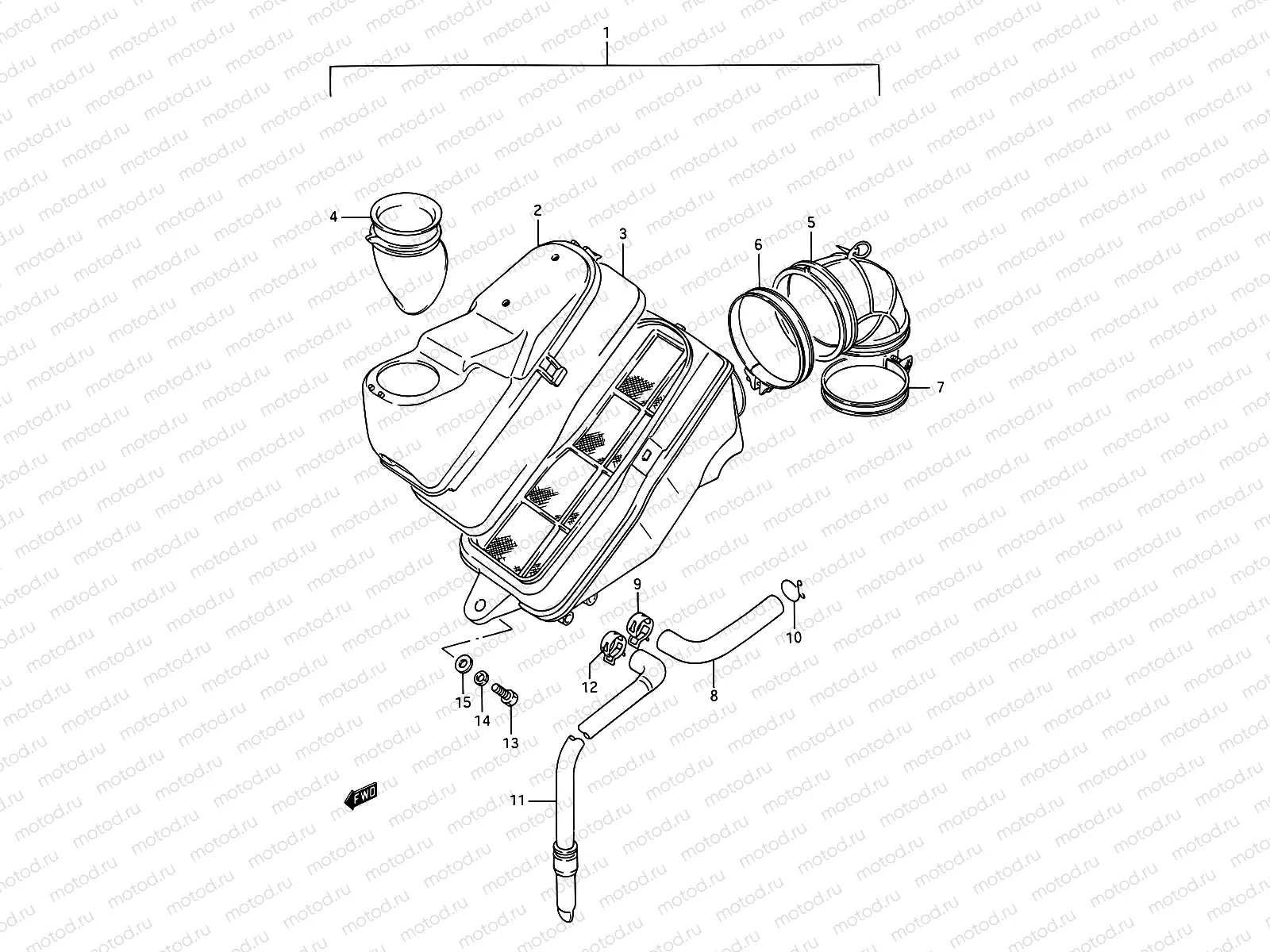

13 - AIR CLEANER (FRONT)

13 - AIR CLEANER (FRONT)
Например: 13700-38B21
1
13700-38B21
Cleaner Assy,air Fr
19 746 ₽/шт
2
13740-38B01
CAP,AIR CLEANER FR
2 796 ₽/шт
3
13781-38B10
FILTER,AIR FR
1 479 ₽/шт
4
13891-38B00
Tube, inlet
5
13881-38B00
Tube,outlet
6
09402-72203
CLAMP
258 ₽/шт
7
09402-58208
Хомут
243 ₽/шт
8
13854-38B00
TUBE,BREATHER
1 189 ₽/шт
9
09401-15407
КЛЕММА
238 ₽/шт
10
09401-14301
ХОМУТ МАЛЫЙ
226 ₽/шт
11
13870-21628
Tube, drain
12
09401-13417
ХОМУТ МАЛЫЙ
170 ₽/шт
13
01500-06207
Болт
81 ₽/шт
14
08321-01067
Шайба, стопорная
81 ₽/шт
15
09160-06019
Шайба
81 ₽/шт
