Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DL 650 V-Strom SUZUKI DL650 K6 V-Strom SUZUKI (VIN: JS1B1111) 13 - AIR CLEANER

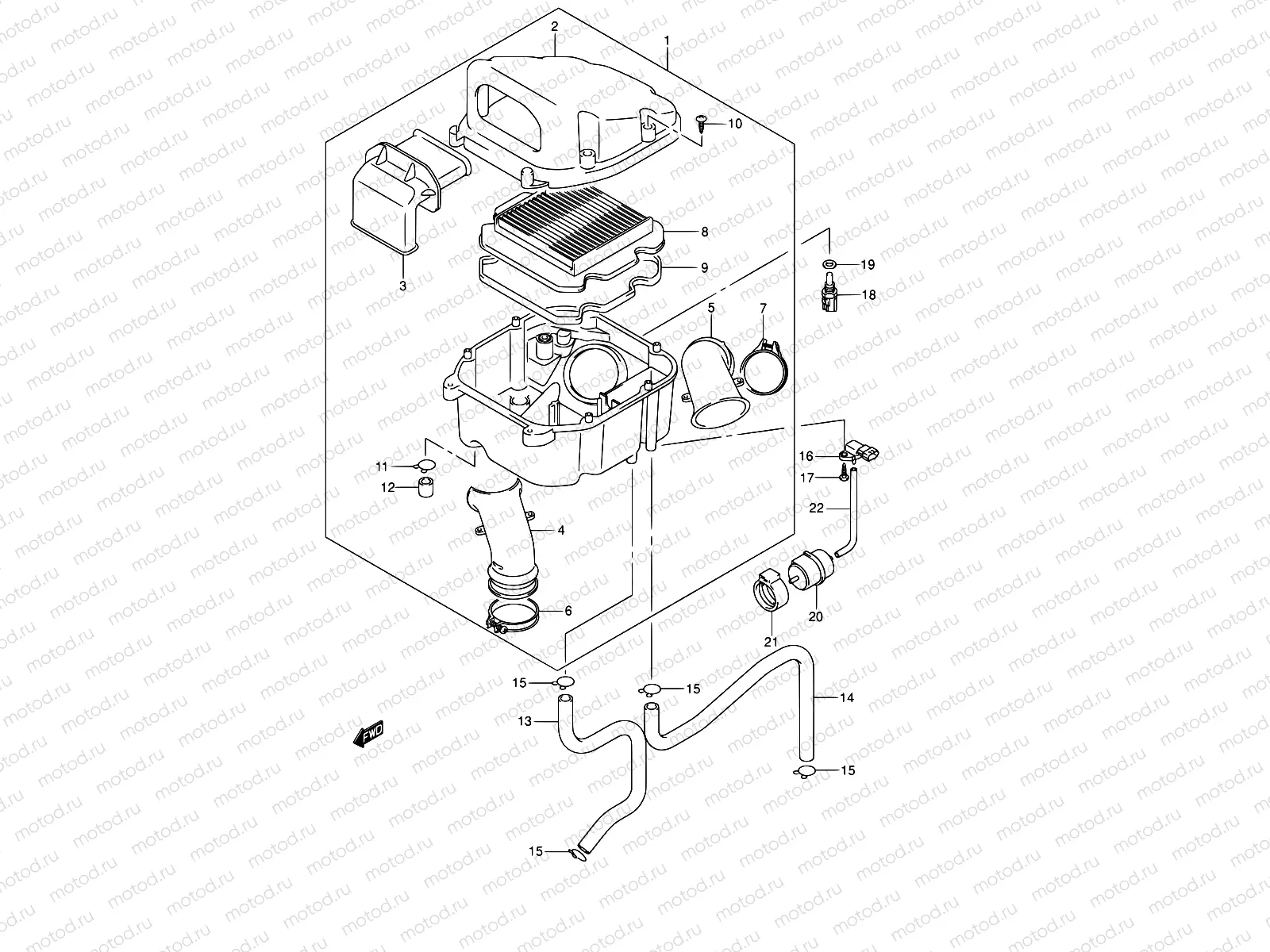

13 - AIR CLEANER

13 - AIR CLEANER
Например: 13700-27G00
1
13700-27G00
Boîte de filtre à air
2
13740-27G00
Крышка
4 106 ₽/шт
3
13891-27G01
TUBE,INLET
2 620 ₽/шт
4
13881-27G00
Tube,outlet a
5
13882-27G01
Tube,outlet b
6
13826-17G00
CLAMP
461 ₽/шт
7
13826-17G00
CLAMP
461 ₽/шт
8
13780-06G00
FILTER,AIR CLEANER
5 440 ₽/шт
9
13746-06G00
Прокладка
1 122 ₽/шт
10
03141-0516A
Болт
85 ₽/шт
11
13878-10G01
Plug
12
09401-14301
ХОМУТ МАЛЫЙ
226 ₽/шт
13
13851-27G00
TUBE,BREATHER CYLINDER
1 232 ₽/шт
14
13852-27G00
Tube,breather c
15
09401-15101
ХОМУТ МАЛЫЙ
162 ₽/шт
16
18590-17G01
SENSOR,BOOST
30 889 ₽/шт
17
03541-0516B
Болт
81 ₽/шт
18
13650-57F00-000
Датчик температуры воды
3 485 ₽/шт
19
09168-12017
ПРОКЛАДКА РЕДУКТОРА
101 ₽/шт
20
13715-06G00
Камера вакуумная
1 771 ₽/шт
21
13912-17G00
Band,vacuum cha
22
09355-35007-600
Hose(3.5X7.5X600)
575 ₽/шт
