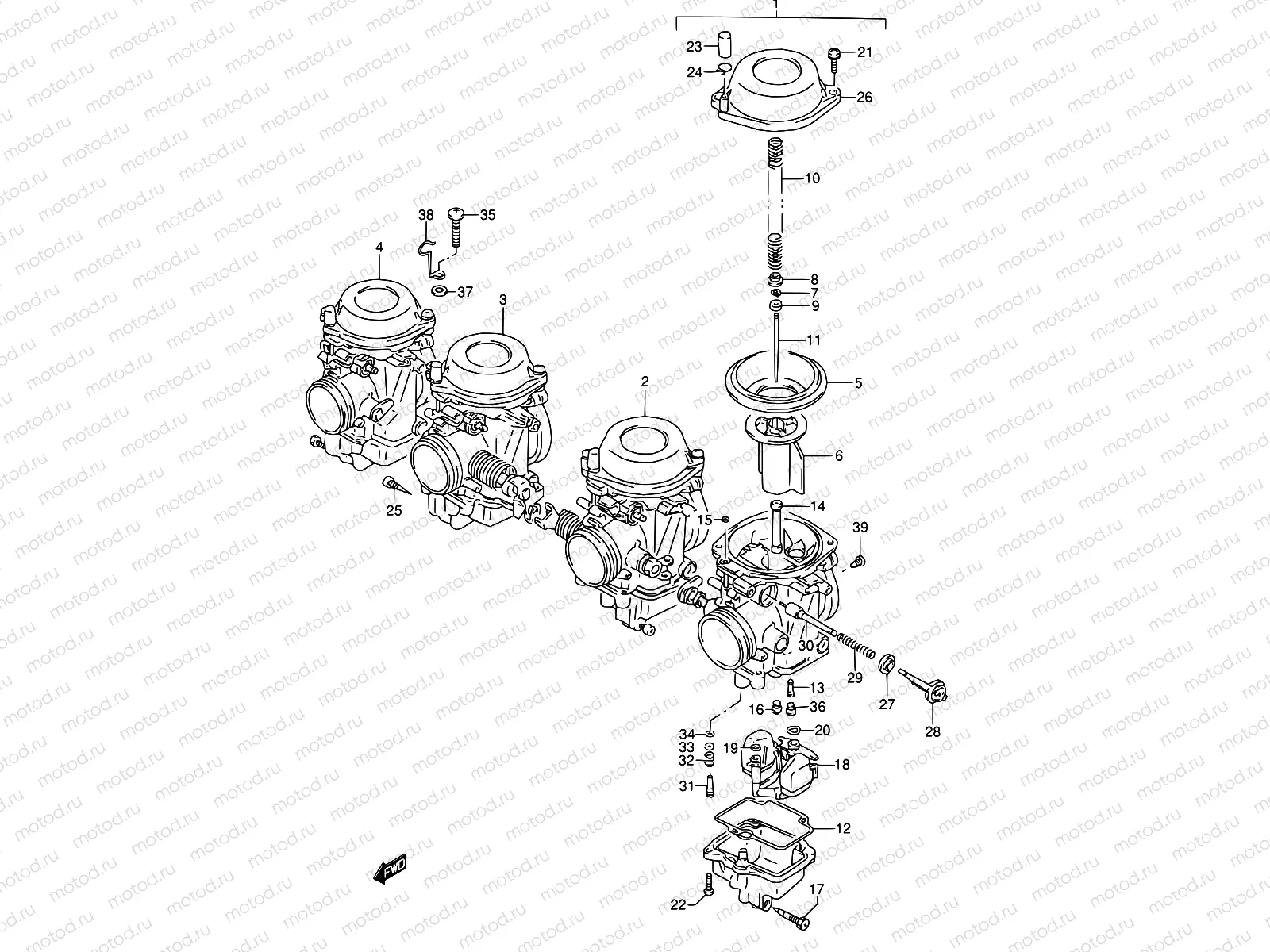

12B - CARBURETOR (MODEL L/M/N/P/R/S,MODEL L E17 ~F.NO.107606)

12B - CARBURETOR (MODEL L/M/N/P/R/S,MODEL L E17 ~F.NO.107606)

Например: 13201-44C01

1

13201-44C01

arburettor (LH)

1

13201-44C30

arburettor (LH)

1

13201-44C60

arburettor (LH)

1

13201-44C40

arburettor (LH)

1

13201-44C80

arburettor (LH)

1

13201-44C90

arburettor (LH)

2

13202-44C00

arburetor assy, ml

2

13202-44C30

arburetor assy, ml

2

13202-44C60

arburetor assy, ml

2

13202-44C40

arburetor assy, ml

2

13202-44C80

arburetor assy, ml

2

13202-44C90

arburetor assy, ml

3

13203-44C60

arburetor assy, mr

3

13203-44C30

arburetor assy, mr

3

13203-44C40

arburetor assy, mr

3

13203-44C80

arburetor assy, mr

3

13203-44C90

arburetor assy, mr

4

13204-44C00

arburettor (RH)

4

13204-44C30

arburettor (RH)

4

13204-44C60

arburettor (RH)

4

13204-44C40

arburettor (RH)

4

13204-44C80

arburettor (RH)

4

13204-44C90

arburettor (RH)

5

13507-17C02

Diaphragm

3 460 ₽/шт

5

13507-44B01

Diaphragm

2 522 ₽/шт

6

13501-01D00

Valve,piston

7

13394-40D20

E RING

282 ₽/шт

8

13382-42A00

RING

187 ₽/шт

9

13387-47010

RING

323 ₽/шт

10

13417-42A00

Пружина

595 ₽/шт

10

13417-21E00

Пружина

590 ₽/шт

11

13383-44C20

Жиклер

1 083 ₽/шт

11

13383-44C30

.needle, jet (5f103-3)

12

13258-44B00

Прокладка крышки поплавковой камеры

767 ₽/шт

13

09492-32006

Жиклерпроводник

1 632 ₽/шт

14

09494-00763

Жиклер игольчатый

3 773 ₽/шт

14

09494-00874

JET,NEEDLE(P-2M)

5 059 ₽/шт

15

13509-17C00

O RING

323 ₽/шт

16

09491-22016

JET,MAIN(110)

1 148 ₽/шт

16

09491-22015

JET,MAIN(112.5)

790 ₽/шт

17

13247-24500

Plug,drain

18

13250-13D00

Поплавок

9 520 ₽/шт

19

13374-46710

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

20

13374-35C00

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

275 ₽/шт

21

02112-7516A

Болт

102 ₽/шт

22

02112-05127

Болт

81 ₽/шт

23

13508-17C00

КОЛПАЧОК

1 020 ₽/шт

24

13671-05A40

ХОМУТ

170 ₽/шт

25

13247-02340

Заглушка дренажная

258 ₽/шт

26

13502-01D00

COVER,DIAPHRAGM

5 270 ₽/шт

26

13502-45B10

Cover,diaphragm

26

13502-45B20

.cover, diaphragm

27

13418-17C01

ap,starter

323 ₽/шт

28

13418-17C10

HOLDER,GUIDE

954 ₽/шт

29

13417-09110

Пружина стартера

414 ₽/шт

30

13411-01D00

Plunger assy

31

13279-47070

Винт топливный

884 ₽/шт

32

13268-47070

Пружина

272 ₽/шт

33

13291-29900

Шайба

162 ₽/шт

34

13295-29901

O-Ring, Pilot Air Screw

210 ₽/шт

35

02112-0516B

Болт

1 090 ₽/шт

36

13357-34C00

PLUG

289 ₽/шт

37

08322-0105B

Шайба

81 ₽/шт

38

13671-20C20

lip

39

09493-26004

Жиклер воздушный

1 126 ₽/шт

39

09493-31001

Жиклер

1 118 ₽/шт
