Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1300 R Hayabusa SUZUKI GSX1300R X Hayabusa (E03,E28,E33) SUZUKI 12 - THROTTLE BODY (MODEL X/Y)

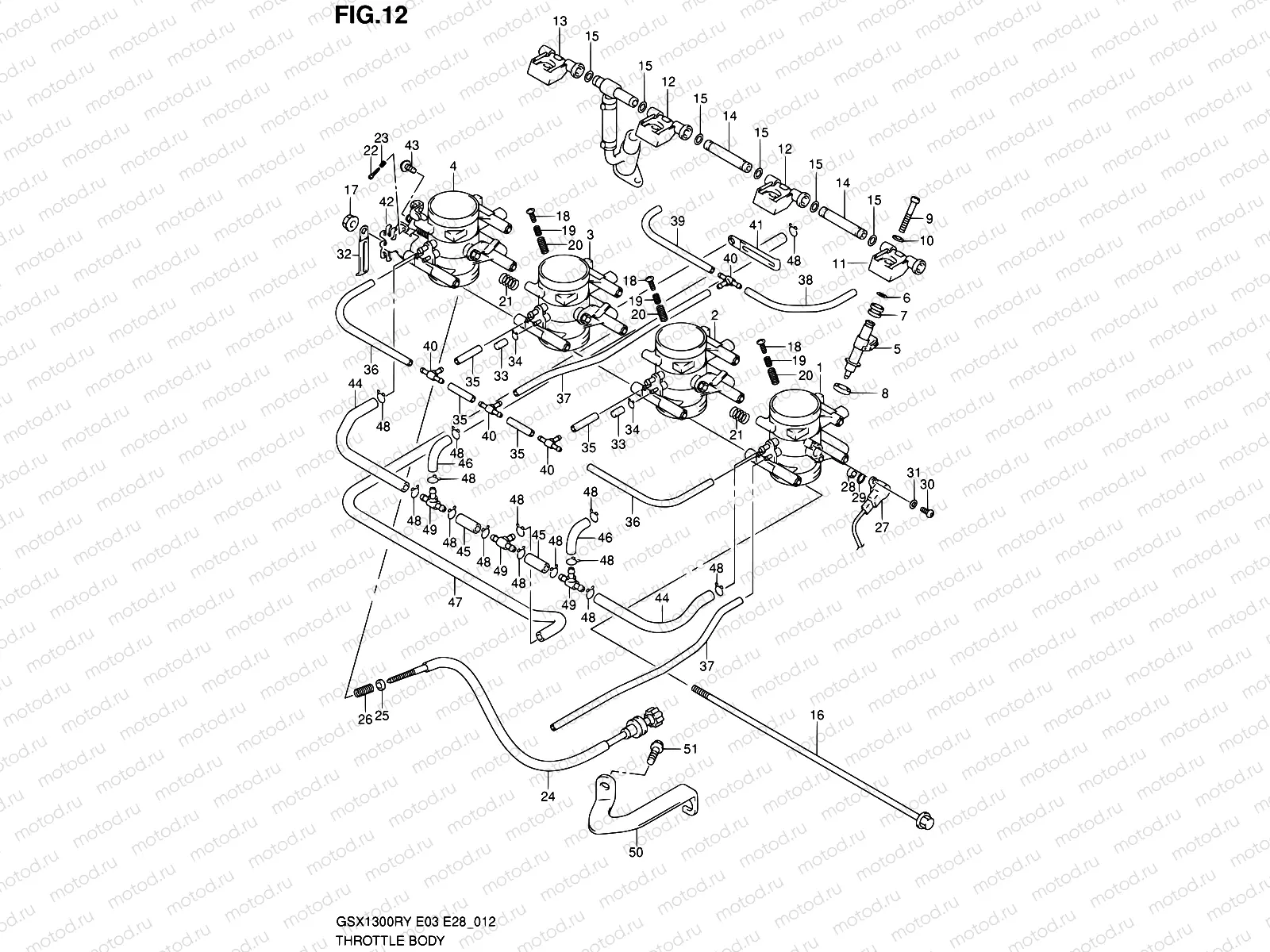

12 - THROTTLE BODY (MODEL X/Y)

12 - THROTTLE BODY (MODEL X/Y)

Например: 13401-24F00

1

13401-24F00

Throttlebody,lh

1

13401-24F10

Throttle body assy, lh

2

13402-24F00

Throttlebody,lm

2

13402-24F10

Throttle body assy, ml

3

13403-24F00

Throttlebody,mr

3

13403-24F10

Throttle body assy, mr

4

13404-24F00

Throttlebody,rh

4

13404-24F10

Throttle body assy, rh

5

15710-24F00

INJECTOR ASSY

22 874 ₽/шт

6

15721-24F00

O-RING

468 ₽/шт

7

15722-24F00

RING,CUSHION

958 ₽/шт

8

13672-24F00

RING,SEAL

1 157 ₽/шт

9

13605-24F00

Болт

223 ₽/шт

10

09160-05043

Шайба

102 ₽/шт

11

13601-35F00

Болт

501 ₽/шт

11

13471-35F00

JOINT,NO.1

2 346 ₽/шт

12

13471-35F10

JOINT,NO.2,3

2 346 ₽/шт

12

13601-35F00

Болт

501 ₽/шт

13

13601-35F00

Болт

501 ₽/шт

13

13471-35F20

JOINT,NO.4

2 346 ₽/шт

14

13474-24F00

JOINT

2 287 ₽/шт

15

15721-24F00

O-RING

468 ₽/шт

16

13611-24F00

Болт

1 580 ₽/шт

17

13607-24F00

Гайка

160 ₽/шт

18

13602-24F00

Screw, stop

19

13543-24F00

Пружина

348 ₽/шт

20

13543-24F10

Spring

21

13543-24F20

Spring

22

13602-24F10

Винт стопорный

332 ₽/шт

23

13543-24F30

Пружина

289 ₽/шт

24

13270-24F00

Винт стопорный

6 061 ₽/шт

25

13273-24F00

Шайба

219 ₽/шт

26

13271-24F00

Пружина

321 ₽/шт

27

13580-24F00

Sensor,throttle

28

13582-24F00

COLLAR

504 ₽/шт

29

13575-24F00

O RING

348 ₽/шт

30

13613-24F00

Болт

160 ₽/шт

31

13572-03F00

Шайба

192 ₽/шт

32

13432-24F10

CLAMP

575 ₽/шт

32

13619-24F00

Clamp

33

13508-24F00

Крышка резиновая

669 ₽/шт

34

13692-24F10

CLIP

184 ₽/шт

35

13697-24F01

Hose,rubber(L:35)

170 ₽/шт

36

13697-24F21

Hose,rubber(L:100)

255 ₽/шт

37

13697-24F31

Hose,rubber(L:200)

860 ₽/шт

38

13697-24F11

Hose, rubber (l

39

13697-24F41

Hose, rubber (l

40

13471-24F30

Направляющая трубки

903 ₽/шт

41

13432-24F00

Clamp

42

13565-24F00

Plate,stay

43

13601-24F00

Vis

44

13698-24F00

Hose, rubber (l:80+25)

45

13698-24F10

Hose, rubber (l:35)

46

13698-24F20

HOSE,RUBBER(L:30+30)

446 ₽/шт

47

13698-24F30

HOSE,RUBBER(L:440+30)

1 826 ₽/шт

48

13693-24F00

CLIP

160 ₽/шт

49

13685-36E50

JOINT

825 ₽/шт

50

13279-24F00

Plate,idle adju

51

01550-06167

БОЛТ

72 ₽/шт
