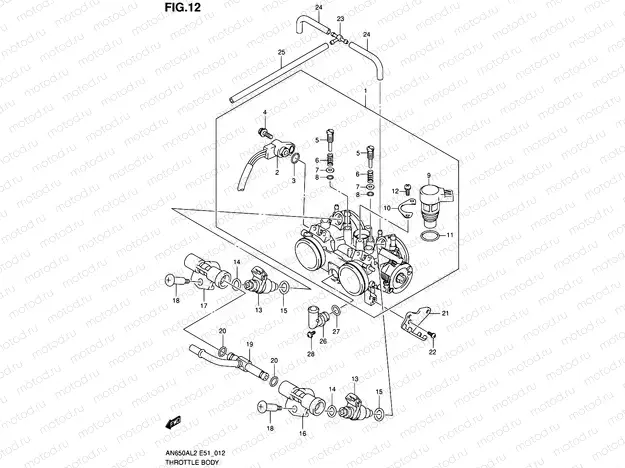

12 - THROTTLE BODY

12 - THROTTLE BODY
Например: 13406-10G23
1
13406-10G23
Throttle body a
2
13580-40F21
SENSOR ASSY,THROTTLE NO.1
30 427 ₽/шт
3
13575-40F00
O RING
162 ₽/шт
4
13613-10G00
Vis
5
13269-18G00
SCREW,AIR ADJUST
594 ₽/шт
6
13271-C43E0-0J000
Spring
7
13291-26E00
Шайба
170 ₽/шт
8
13295-26E00
O RING
187 ₽/шт
9
18117-15H12
VALVE ASSY,ISC
23 418 ₽/шт
10
13428-15H00
PLATE,ISC VALVE
1 650 ₽/шт
11
18119-05H00
O RING
203 ₽/шт
12
13605-15H00
Болт
356 ₽/шт
13
15710-10G00
INJECTOR ASSY
22 874 ₽/шт
14
15721-10G00
O RING
561 ₽/шт
15
15722-10G00
O RING
1 190 ₽/шт
16
13471-10G00
JOINT
2 346 ₽/шт
17
13471-10G10
JOINT
2 346 ₽/шт
18
13601-35F00
Болт
501 ₽/шт
19
13473-10G00
Труба топливная
5 904 ₽/шт
20
15721-24F00
O-RING
468 ₽/шт
21
13565-10G20
PLATE
2 581 ₽/шт
22
13601-10G00
Болт
203 ₽/шт
23
13471-24F30
Направляющая трубки
903 ₽/шт
24
13683-10G01
Hose
25
13683-10G10
HOSE(3X7X220)
653 ₽/шт
26
13455-10G00
JOINT
1 716 ₽/шт
27
13278-10G10
O RING
227 ₽/шт
28
13602-10G00
Болт
203 ₽/шт
