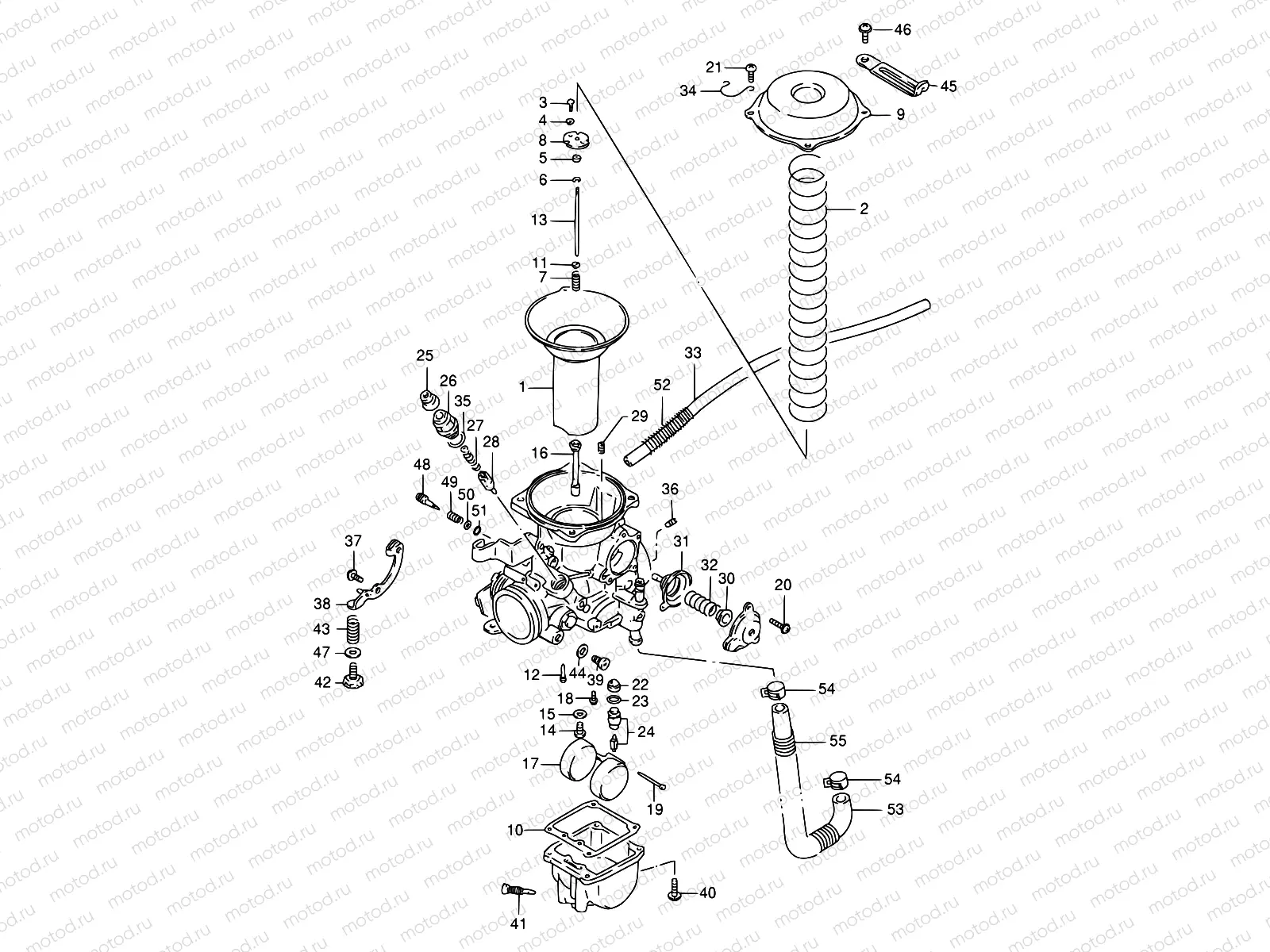

12 - CARBURETOR (REAR)

12 - CARBURETOR (REAR)
Например: 13220-38BB0
0
13220-38BB0
Carburetor,rear
0
13220-38BC1
arburettor
0
13220-38B90
Carburetor assy
0
13220-38BD0
Carburetor assy, rear
1
13500-38B10
DIAPHRAGM ASSY
16 735 ₽/шт
2
13503-05A10
Пружина
864 ₽/шт
3
02112-0306B
Болт
940 ₽/шт
4
09162-03001
Шайба блокирующая
900 ₽/шт
5
13387-47010
RING
323 ₽/шт
6
13394-40D20
E RING
282 ₽/шт
7
13388-44030
Пружина
1 143 ₽/шт
8
13389-37400
PLATE
368 ₽/шт
9
13502-45CE0
OVER
2 737 ₽/шт
10
13251-38A10
Прокладка
1 114 ₽/шт
11
13382-44030
Шайба
4 110 ₽/шт
12
09492-55014
Жиклер (55)
1 189 ₽/шт
12
09492-57004
Jet,pilot
13
13383-38B80
Жиклер
1 286 ₽/шт
14
09491-26011
Жиклер главный (130)
1 034 ₽/шт
14
09491-28010
Жиклер главный (140)
594 ₽/шт
15
13382-03110
Шайба
178 ₽/шт
16
09494-00856
Жиклер игольчатый
2 854 ₽/шт
17
13252-23010
Поплавок
2 503 ₽/шт
18
13602-05A10
Болт
238 ₽/шт
19
13254-92311
PIN,FLOAT
162 ₽/шт
20
02112-04107
Болт
82 ₽/шт
21
02112-0408B
Болт
940 ₽/шт
22
13376-19F00
Фильтр-сеточка
581 ₽/шт
23
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
24
13370-39A00
Клапан
7 395 ₽/шт
25
13681-04011
CAP
835 ₽/шт
26
13418-43410
HOLDER,GUIDE
888 ₽/шт
27
13417-22010
Пружина
204 ₽/шт
28
13411-01400
Плунжер
782 ₽/шт
29
09493-31001
Жиклер
1 118 ₽/шт
29
09493-38002
Jet,air ,1,9
30
13482-37300
.plate
31
13480-05A10
.diaphragm assy
32
13481-38B40
Пружина
375 ₽/шт
33
09352-50005-600
ШЛАНГ
436 ₽/шт
34
13692-02500
Зажим шланга
559 ₽/шт
35
13278-47091
O Ring
210 ₽/шт
36
09492-40018
JET,PILOT(40)
1 189 ₽/шт
36
09492-60012
JET,AIR(60)
719 ₽/шт
37
13602-05A30
Болт
238 ₽/шт
38
13554-45C20
LEVER ASSY
2 796 ₽/шт
39
13605-73000-000
Винт топливный
817 ₽/шт
40
13601-04148
Болт
172 ₽/шт
41
13247-02340
Заглушка дренажная
258 ₽/шт
42
13267-39E50
Регулятор
938 ₽/шт
43
13271-93011
Пружина
204 ₽/шт
44
13249-78100
Шайба
231 ₽/шт
45
09404-06039
Clamp(L:65)
194 ₽/шт
45
09404-06036
Clamp(L:80)
194 ₽/шт
46
02142-0408B
Винт
82 ₽/шт
47
13277-37100
Шайба
141 ₽/шт
48
13279-47070
Винт топливный
884 ₽/шт
49
13268-47070
Пружина
272 ₽/шт
50
13291-29900
Шайба
162 ₽/шт
51
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
52
13446-38B00
Пружина
618 ₽/шт
53
15801-38B01
Шланг топливный
2 125 ₽/шт
54
09401-11415
CLIP
113 ₽/шт
55
09440-14030
Пружина
3 870 ₽/шт
