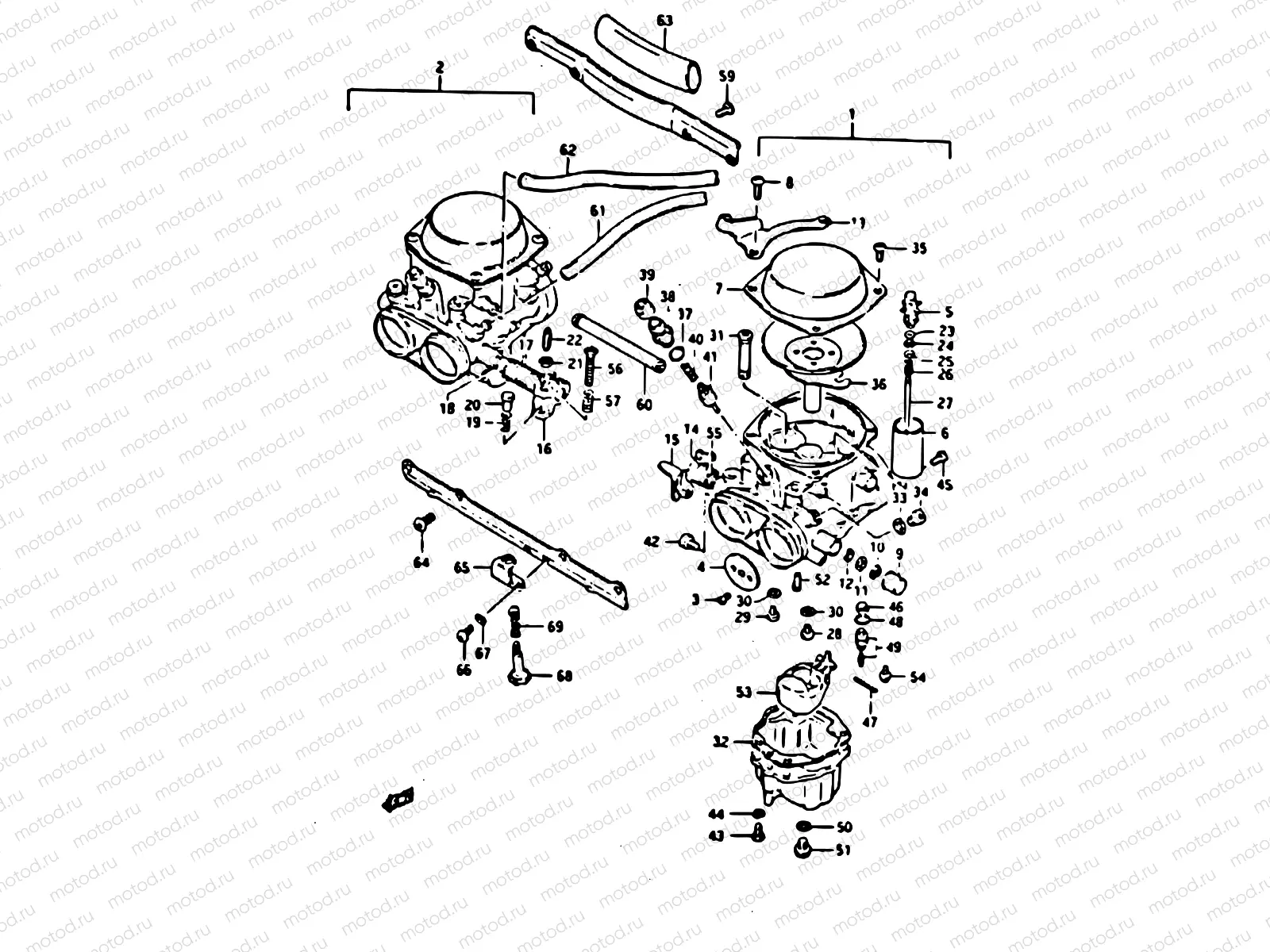

12 - CARBURETOR (MODEL E)

12 - CARBURETOR (MODEL E)
Например: 13201-43470
1
13201-43470
Carburetor, lh
2
13202-43470
Carburetor, rh
3
13604-44080
Болт
235 ₽/шт
4
13551-43440
.valve, throttle (105)
5
13511-43410
HOLDER,GUIDE
524 ₽/шт
6
13551-43500
.valve, piston
7
13502-43430
.cover, diaphragm
8
02112-0512A
Болт
85 ₽/шт
9
13578-47070
CAP
364 ₽/шт
10
13617-44080
E RING
231 ₽/шт
11
13557-47070
GASKET,THROTTLE SHAFT
301 ₽/шт
12
13651-51011
Seal
231 ₽/шт
13
13621-43420
.bracket
14
13573-43410
.spring
15
13550-43410
.shaft assy, throttle
16
13550-43400
.shaft assy, throttle
17
13573-43400
.spring
18
13574-43410
.pipe
19
13268-44010
.spring
20
13575-47070
.pin
21
13607-47070
Гайка
170 ₽/шт
22
13605-47080
SCREW
512 ₽/шт
23
13387-47010
RING
323 ₽/шт
24
13394-40D20
E RING
282 ₽/шт
25
13382-44030
Шайба
4 110 ₽/шт
26
13388-44030
Пружина
1 143 ₽/шт
27
13383-43530
.needle, jet (5c13-3)
28
09491-90007
JET,MAIN(90)
790 ₽/шт
29
09491-97003
Жиклер главный (97.5)
825 ₽/шт
30
13382-03110
Шайба
178 ₽/шт
31
09494-00464
.jet, needle (p-4)
32
13251-05C00
Прокладка
762 ₽/шт
33
13531-43410
Шайба
231 ₽/шт
34
13605-43410
Болт
301 ₽/шт
35
02112-0510B
Болт
85 ₽/шт
36
13500-43410
.diaphragm assy
37
13278-47091
O Ring
210 ₽/шт
38
13418-43410
HOLDER,GUIDE
888 ₽/шт
39
13681-04011
CAP
835 ₽/шт
40
13417-01010
SPRING
282 ₽/шт
41
13411-43410
Плунжер
1 732 ₽/шт
42
13605-73000-000
Винт топливный
817 ₽/шт
43
02112-0416A
Болт
82 ₽/шт
44
08321-0104A
Пластина замка
82 ₽/шт
45
09492-28001
.jet, pilot air (140)
46
13376-19F00
Фильтр-сеточка
581 ₽/шт
47
13254-20010
Поплавок
178 ₽/шт
48
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
49
13370-48B00
Клапан
5 630 ₽/шт
50
13246-44080
Прокладка
231 ₽/шт
51
13247-44080
Болт
669 ₽/шт
52
09492-35010
Жиклерпроводник
986 ₽/шт
53
13250-43410
Float
54
13602-43410
Болт
172 ₽/шт
55
13574-43400
.ring
56
13605-15530
.screw
57
13271-93311
Пружина
211 ₽/шт
58
13210-43420
Flance assy
59
02112-0512A
Болт
85 ₽/шт
60
13685-43410
.pipe
61
09355-45857-600
Шланг
1 433 ₽/шт
62
09352-70113-600
Hose
63
13684-43440
HOSE(16X19X100)
489 ₽/шт
64
02112-3612A
Болт
1 250 ₽/шт
65
13621-43430
.bracket
66
02112-0508A
Винт №1
85 ₽/шт
67
08321-0105A
Пластина замка
81 ₽/шт
68
13267-34390
Adjuster
69
13375-14D10
Пружина
238 ₽/шт
