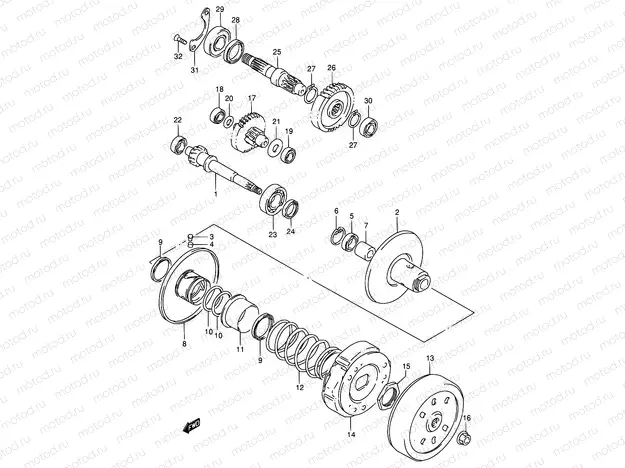

11A - TRANSMISSION (2)(F.NO.216955%)

11A - TRANSMISSION (2)(F.NO.216955%)
Например: 24131-04C01
1
24131-04C01
Вал ведущий
6 686 ₽/шт
2
21210-04C10
FACE,FIXED DRIVEN
7 898 ₽/шт
3
09201-05006
ШТИФТ
1 640 ₽/шт
4
09180-05042
SPACER(5X8.2X3.5)
2 820 ₽/шт
5
09262-12018
Подшипник
808 ₽/шт
6
08331-41249
CIRCLIP
162 ₽/шт
7
09263-17042
BEARING(17X25X16.7)
1 535 ₽/шт
8
21240-41D20
FACE,MOVABLE DRIVEN
7 194 ₽/шт
9
09284-34002
SEAL,OIL(34X39X3)
1 341 ₽/шт
10
09280-41005
Кольцо уплотнительное
1 560 ₽/шт
11
21471-03A11
ВТУЛКА МЕТАЛЛИЧЕСКАЯ
348 ₽/шт
12
09440-52007
Пружина
25 020 ₽/шт
13
21220-04C21
HOUSING,CLUTCH
13 558 ₽/шт
14
21501-41D80
CLUTCH ASSY,SHOE
14 741 ₽/шт
15
09140-28004
ШАЙБА
4 650 ₽/шт
16
08316-1010B
Гайка
85 ₽/шт
17
24150-41D21
18
08113-6201B
earing
1 024 ₽/шт
19
09263-16012
Подшипник 16X22X12
1 275 ₽/шт
20
09181-12167
Шайба
194 ₽/шт
21
08211-16301
Шайба
1 600 ₽/шт
22
09262-15031
BEARING(15X35X11)
1 083 ₽/шт
23
08113-63030
Подшипник B1 17X47X14
1 156 ₽/шт
24
09283-17023
SEAL,OIL(17X28X5.5)
594 ₽/шт
25
24141-41D00
SHAFT,RR AXLE
7 585 ₽/шт
26
24371-41D00
Gear, final driven (nt:35)
27
08331-31229
Зажимы
153 ₽/шт
28
09283-27010
САЛЬНИК
937 ₽/шт
29
08130-62047
BEARING
2 014 ₽/шт
30
08110-62030
ПОДШИПНИК ВЫЖИМНОЙ
867 ₽/шт
31
24751-07900
RETAINER,DRIVE SHAHFT BEARING
227 ₽/шт
32
02122-0616B
Болт
85 ₽/шт
