Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100W V (E28) SUZUKI 11A - CARBURETOR (MODEL V/W)

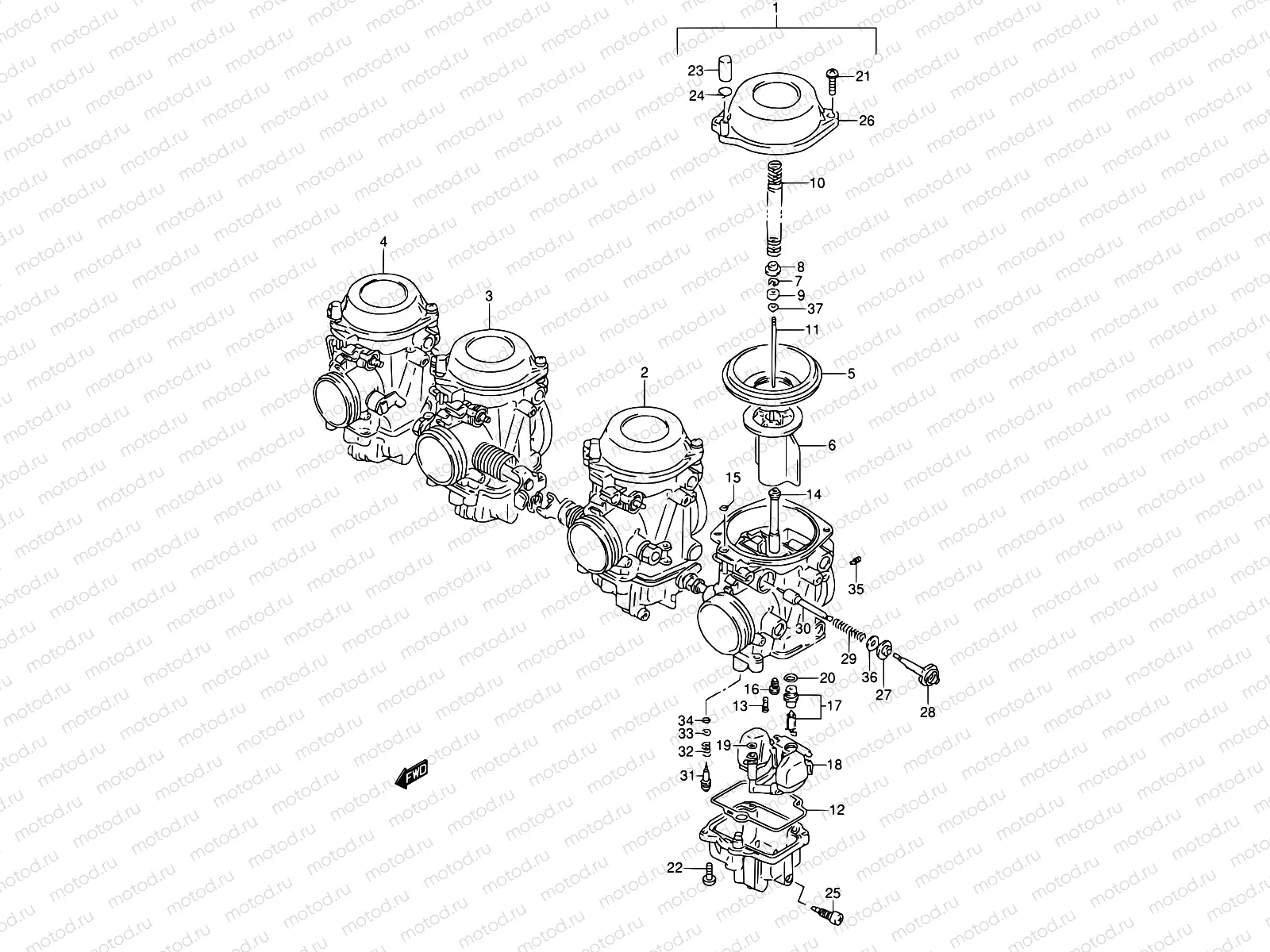

11A - CARBURETOR (MODEL V/W)

11A - CARBURETOR (MODEL V/W)
Например: 13201-46EC0
1
13201-46EC0
arburettor (LH)
2
13202-46EC0
arburetor assy, ml
3
13203-46EC0
arburetor assy, mr
4
13204-46EC0
arburettor (RH)
5
13507-17C02
Diaphragm
3 460 ₽/шт
6
13501-02D00
VALVE,PISTON
6 295 ₽/шт
7
13394-40D20
E RING
282 ₽/шт
8
13382-42A00
RING
187 ₽/шт
9
13387-47010
RING
323 ₽/шт
10
13417-17D00
Пружина
655 ₽/шт
10
13503-34A00
Пружина
2 244 ₽/шт
11
13383-46E60
.jet needle (5d75)
12
13258-44B00
Прокладка крышки поплавковой камеры
767 ₽/шт
13
09492-30010
Жиклерпроводник
1 220 ₽/шт
14
09494-00851
Jet,needle,o-8m
15
13509-17C00
O RING
323 ₽/шт
16
09491-23017
JET,MAIN(117.5)
790 ₽/шт
16
09491-24016
JET,MAIN(120)
790 ₽/шт
17
13370-46E21
Valve Assy,needle(Ni)
13 005 ₽/шт
18
13250-12EH0
FLOAT/NEEDLE VALVE ASSY
6 412 ₽/шт
19
13374-46710
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
20
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
21
02112-7516A
Болт
102 ₽/шт
22
02112-05127
Болт
81 ₽/шт
23
13508-17C00
КОЛПАЧОК
1 020 ₽/шт
24
13671-05A40
ХОМУТ
170 ₽/шт
25
13247-02340
Заглушка дренажная
258 ₽/шт
26
13502-41C00
OVER,DIAPHRAGM
2 581 ₽/шт
27
13418-17C01
ap,starter
323 ₽/шт
28
13418-17C10
HOLDER,GUIDE
954 ₽/шт
29
13417-26D00
Пружина
238 ₽/шт
30
13411-05320
PLUNGER ASSY
1 396 ₽/шт
31
13279-47070
Винт топливный
884 ₽/шт
32
13268-47070
Пружина
272 ₽/шт
33
13291-29900
Шайба
162 ₽/шт
34
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
35
09493-24007
Жиклер воздушный (1.2)
1 227 ₽/шт
36
13432-47090
Шайба
156 ₽/шт
37
13382-44030
Шайба
4 110 ₽/шт
