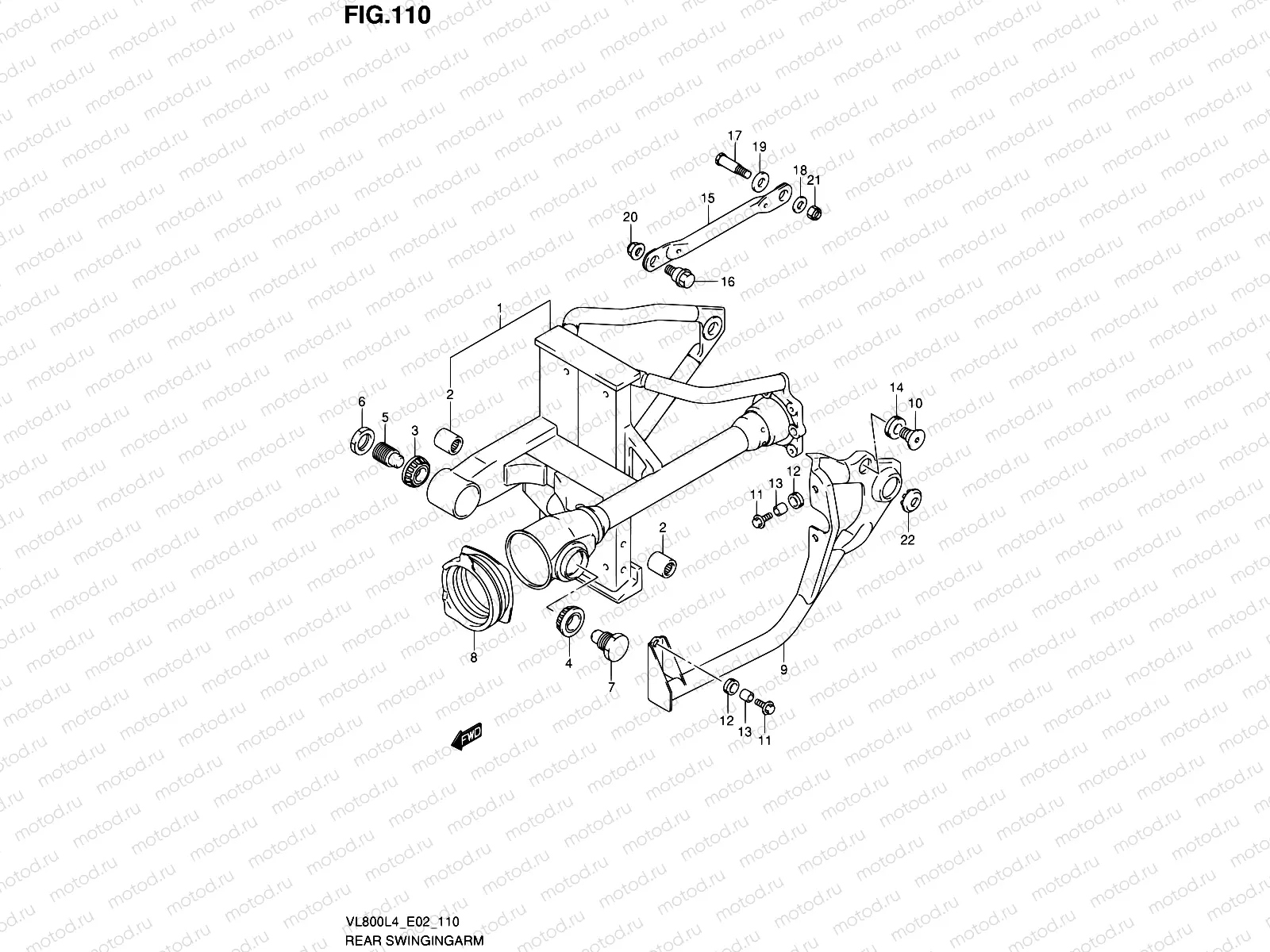

110 - REAR SWINGINGARM

110 - REAR SWINGINGARM

Например: 61101-41890-019

1

61101-41890-019

Swingingarm set

2

09263-17053

Подшипник

1 147 ₽/шт

3

09265-17013

BEARING(17X40X13.25)

4 927 ₽/шт

4

09265-17012

ПОДШИПНИК

4 301 ₽/шт

5

61213-24A00

BOLT,RR SWGARM PIVOT

2 111 ₽/шт

6

09140-24007

ШАЙБА

2 390 ₽/шт

7

61213-10F00

BOLT,SWINGINGARM PIVOT,L

1 947 ₽/шт

8

61372-41F00

BOOT,PROPELLER SHAFT

1 396 ₽/шт

9

61120-41F10-019

COVER,RR SWINGINGARM,L(BLACK)

20 137 ₽/шт

10

61127-41F20

BOLT,COVER RR

816 ₽/шт

11

09116-06152

BOLT(6X20)

146 ₽/шт

12

09320-10069

Damper

13

09180-06286

Кольцо/шайба

162 ₽/шт

14

09320-22003

Damper

15

64310-41F00

TORQUELINK,RR

1 920 ₽/шт

16

09111-10062

BOLT(10X22)

4 030 ₽/шт

17

09111-10057

BOLT(10X41)

2 850 ₽/шт

18

09160-10142

Шайба

1 370 ₽/шт

19

09320-12501

CUSHION

3 990 ₽/шт

20

08319-3110B

Гайка

1 920 ₽/шт

21

08319-2110B

Гайка

1 520 ₽/шт

22

41899-42F10

ЗАГЛУШКА КРОНШТЕЙНА ПОВОРОТНОГО

714 ₽/шт
