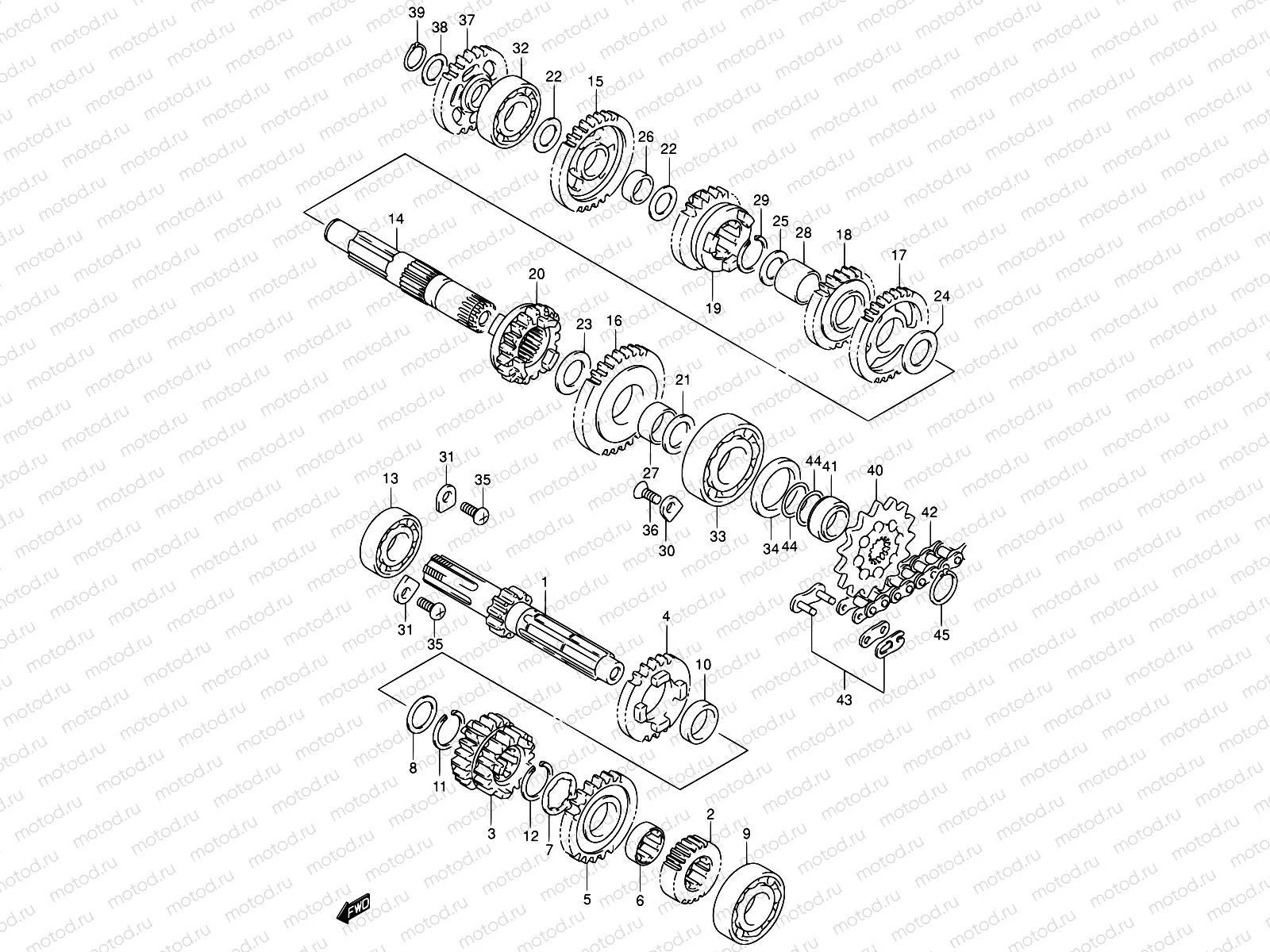

11 - TRANSMISSION (MODEL K1/K2/K3)

11 - TRANSMISSION (MODEL K1/K2/K3)
Например: 24120-36F03
1
24120-36F03
SHAFT,COUNTER
2
24221-36F01
GEAR,2ND DRIVE(NT:16)
5 709 ₽/шт
3
24231-43D21
Tandwiel,3/4 v.
4
24251-43D20
GEAR,5TH DRIVE(NT:19)
7 194 ₽/шт
5
24261-43D01
GEAR,6TH DRIVE(NT:20)
7 194 ₽/шт
6
24262-43D00
Silentblock
7
09167-22014
WASHER,LOCK
2 500 ₽/шт
8
09181-22139
SHIM,22X28X1.0
204 ₽/шт
9
09262-17049
Bearing,17x35x1
10
09300-22008
Втулка
791 ₽/шт
11
09380-22006
КЛИПС
194 ₽/шт
12
09380-22006
КЛИПС
194 ₽/шт
13
09262-20122
BEARING(20X47X12)
2 072 ₽/шт
14
24131-36E10
Shaft,drive
15
24311-36F00
GEAR,1ST DRIVEN(NT:29)
14 705 ₽/шт
16
24321-36F01
GEAR,2ND DRIVEN(NT:27)
12 155 ₽/шт
17
24331-36E01
GEAR,3RD DRIVEN(NT:26)
13 005 ₽/шт
18
24341-36E00
GEAR,4TH DRIVEN(NT:24)
13 430 ₽/шт
19
24351-36E01
Gear,5th driven
20
24361-36E03
GEAR,6TH DRIVEN(NT:19)
12 155 ₽/шт
21
09160-20074
Шайба
3 250 ₽/шт
22
09181-17167
Шайба
194 ₽/шт
23
09181-22167
SHIM,22X30X1
194 ₽/шт
24
09181-22167
SHIM,22X30X1
194 ₽/шт
25
09181-22167
SHIM,22X30X1
194 ₽/шт
26
09300-17012
BUSH(17X20X9)
2 584 ₽/шт
27
09300-22008
Втулка
791 ₽/шт
28
09300-22018
Втулка
1 535 ₽/шт
29
09380-22006
КЛИПС
194 ₽/шт
30
24741-20A00
RETAINER,COUNTER BEARING,R
170 ₽/шт
31
24741-21A00
RETAINER
170 ₽/шт
32
09262-17040
BEARING(17X40X9.5)
1 603 ₽/шт
33
09262-20110
BEARING(20X52X12.5)
2 796 ₽/шт
34
09283-28020
SEAL,OIL(28X38X6)
1 244 ₽/шт
35
02112-0610B
Винт
81 ₽/шт
36
02122-0612B
Болт
82 ₽/шт
37
26260-43D01
GEAR,KICK STARTER IDLE(NT:26)
5 865 ₽/шт
38
09181-17130
SHIM(17X24X0.5)
1 800 ₽/шт
39
08331-31179
Стопорное кольцо
102 ₽/шт
40
27511-14111
ШКИВ ПРИВОДНОЙ
2 385 ₽/шт
40
27511-14121
SPROCKET. ENGINE
3 460 ₽/шт
41
27531-43D00
Кольцо/шайба
2 131 ₽/шт
42
27600-43D02-114
CHAIN,DRIVE (DID520DMA4 SDH)
20 485 ₽/шт
43
27620-46K00
Joint Set,chain
653 ₽/шт
44
09280-20006
Кольцо (D:1.9 ID:19.8)
179 ₽/шт
45
09380-20007
КЛИПС
194 ₽/шт
